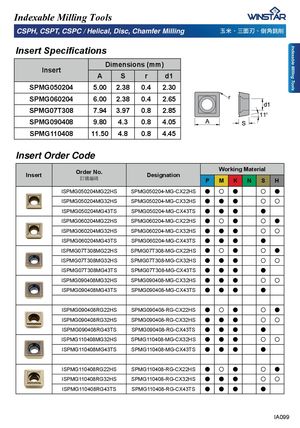

CSPH, CSPT, CSPC / Helical, Disc, Chamfer Milling 䔘丂ҷᾘ棱⎒ҷ↡孡搠⏙

,QVHUW6SHFL¿FDWLRQV

Dimensions (mm)

Insert

ASrd1
SPMG0502045.002.380.42.30
SPMG0602046.002.380.42.65
SPMG07T3087.943.970.82.85

11°

SPMG0904089.804.30.84.05
SPMG11040811.504.80.84.45

Insert Order Code

Order No. Working Material

Insert Designation

宑庋佷䩋PMKN SH
ISPMG050204MG22HSSPMG050204-MG-CX22HSβΰβΰβ
ISPMG050204MG32HSSPMG050204-MG-CX32HSβββΰΰ
ISPMG050204MG43TSSPMG050204-MG-CX43TSββββ
ISPMG060204MG22HSSPMG060204-MG-CX22HSβΰβΰβ
ISPMG060204MG32HSSPMG060204-MG-CX32HSβββΰΰ
ISPMG060204MG43TSSPMG060204-MG-CX43TSββββ
ISPMG07T308MG22HSSPMG07T308-MG-CX22HSβΰβΰβ
ISPMG07T308MG32HSSPMG07T308-MG-CX32HSβββΰΰ
ISPMG07T308MG43TSSPMG07T308-MG-CX43TSββββ
ISPMG090408MG32HSSPMG090408-MG-CX32HSβββΰΰ
ISPMG090408MG43TSSPMG090408-MG-CX43TSββββ
ISPMG090408RG22HSSPMG090408-RG-CX22HSβΰβΰβ
ISPMG090408RG32HSSPMG090408-RG-CX32HSβββΰΰ
ISPMG090408RG43TSSPMG090408-RG-CX43TSββββ
ISPMG110408MG32HSSPMG110408-MG-CX32HSβββΰΰ
ISPMG110408MG43TSSPMG110408-MG-CX43TSββββ
ISPMG110408RG22HSSPMG110408-RG-CX22HSβΰβΰβ
ISPMG110408RG32HSSPMG110408-RG-CX32HSβββΰΰ
ISPMG110408RG43TSSPMG110408-RG-CX43TSββββ
