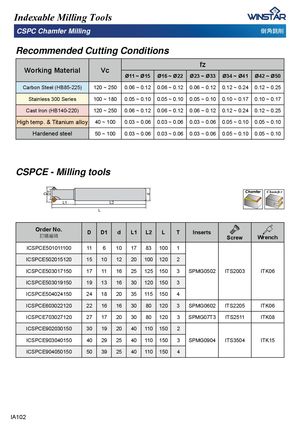

D D1 d Indexable Milling Tools CSPC Chamfer Milling ↡孡搠⏙ Recommended Cutting Conditions fz Working Material Vc Ø11 ~ Ø15 Ø16 ~ Ø22 Ø23 ~ Ø33 Ø34 ~ Ø41 Ø42 ~ Ø50 Carbon Steel (HB85-225) 120 ~ 250 0.06 ~ 0.12 0.06 ~ 0.12 0.06 ~ 0.12 0.12 ~ 0.24 0.12 ~ 0.25 Stainless 300 Series 100 ~ 180 0.05 ~ 0.10 0.05 ~ 0.10 0.05 ~ 0.10 0.10 ~ 0.17 0.10 ~ 0.17 Cast Iron (HB140-220) 120 ~ 250 0.06 ~ 0.12 0.06 ~ 0.12 0.06 ~ 0.12 0.12 ~ 0.24 0.12 ~ 0.25 High temp. & Titanium alloy 40 ~ 100 0.03 ~ 0.06 0.03 ~ 0.06 0.03 ~ 0.06 0.05 ~ 0.10 0.05 ~ 0.10 Hardened steel 50 ~ 100 0.03 ~ 0.06 0.03 ~ 0.06 0.03 ~ 0.06 0.05 ~ 0.10 0.05 ~ 0.10 CSPCE - Milling tools Chamfer L1 L2 L Order No.宑庋佷䩋 D D1 d L1 L2 L T Inserts Screw Wrench ICSPCE501011100 11 6 10 17 83 100 1 ICSPCE502015120 15 10 12 20 100 120 2 ICSPCE503017150 17 11 16 25 125 150 3 SPMG0502 ITS2003 ITK06 ICSPCE503019150 19 13 16 30 120 150 3 ICSPCE504024150 24 18 20 35 115 150 4 ICSPCE603022120 22 16 16 30 80 120 3 SPMG0602 ITS2205 ITK06 ICSPCE703027120 27 17 20 30 80 120 3 SPMG07T3 ITS2511 ITK08 ICSPCE902030150 30 19 20 40 110 150 2 ICSPCE903040150 40 29 25 40 110 150 3 SPMG0904 ITS3504 ITK15 ICSPCE904050150 50 39 25 40 110 150 4 IA102
