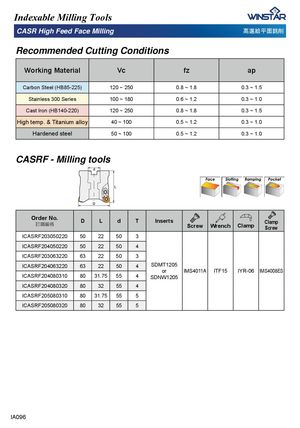

CASR High Feed Face Milling 汧懁仵。棱搠⏙
Recommended Cutting Conditions
Working Material Vc fz ap
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.8 ~ 1.8 | 0.3 ~ 1.5 | ||
| Stainless 300 Series | 100 ~ 180 | 0.6 ~ 1.2 | 0.3 ~ 1.0 | ||
| Cast Iron (HB140-220) | 120 ~ 250 | 0.8 ~ 1.8 | 0.3 ~ 1.5 | ||
| High temp. & Titanium alloy | 40 ~ 100 | 0.5 ~ 1.2 | 0.3 ~ 1.0 | ||
| Hardened steel | 50 ~ 100 | 0.5 ~ 1.2 | 0.3 ~ 1.0 |
CASRF - Milling tools
Order No.
D L d T Inserts Clamp
宑庋佷䩋 Screw Wrench Clamp
Screw
| ICASRF203050220 | 50 | 22 | 50 | 3 | |
| ICASRF204050220 | 50 | 22 | 50 | 4 | |
| ICASRF203063220 | 63 | 22 | 50 | 3 | |
| ICASRF204063220 | 63 | 22 | 50 | 4 | SDMT1205 |
or IMS4011A ITF15 IYR-06 IMS4008ES
| ICASRF204080310 | 80 | 31.75 | 55 | 4 | SDNW1205 |
| ICASRF204080320 | 80 | 32 | 55 | 4 | |
| ICASRF205080310 | 80 | 31.75 | 55 | 5 | |
| ICASRF205080320 | 80 | 32 | 55 | 5 |
