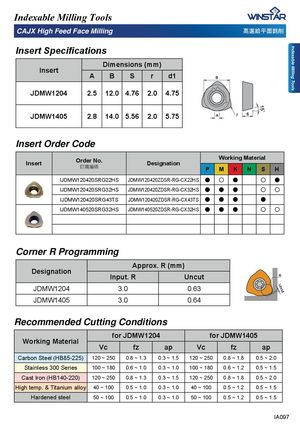

Каталог Winstar инструмент со сменными пластинами 2020 - страница 107

Indexable Milling Tools
CAJX High Feed Face Milling 汧懁仵。棱搠⏙

,QVHUW6SHFL¿FDWLRQV


Indexable Milling Tools
Dimensions (mm)
Insert
A B S r d1
JDMW1204 2.5 12.0 4.76 2.0 4.75

JDMW1405 2.8 14.0 5.56 2.0 5.75

Insert Order Code
Order No. Working Material
Insert 宑庋佷䩋
Designation
P M K N S H
IJDMW120420SRG22HS JDMW120420ZDSR-RG-CX22HS β ΰ β ΰ β
IJDMW120420SRG32HS JDMW120420ZDSR-RG-CX32HS β β β ΰ ΰ
IJDMW120420SRG43TS JDMW120420ZDSR-RG-CX43TS β β β β
IJDMW140520SRG32HS JDMW140520ZDSR-RG-CX32HS β β β ΰ ΰ


Corner R Programming
Approx. R (mm)
Designation
Input. R Uncut
JDMW1204 3.0 0.63
JDMW1405 3.0 0.64

Recommended Cutting Conditions
for JDMW1204 for JDMW1405
Working Material
Vc fz ap Vc fz ap
Carbon Steel (HB85-225) 120 ~ 250 0.8 ~ 1.3 0.3 ~ 1.5 120 ~ 250 0.8 ~ 1.8 0.5 ~ 2.0
Stainless 300 Series 100 ~ 180 0.6 ~ 1.0 0.3 ~ 1.0 100 ~ 180 0.6 ~ 1.2 0.5 ~ 1.5
Cast Iron (HB140-220) 120 ~ 250 0.8 ~ 1.3 0.3 ~ 1.5 120 ~ 250 0.8 ~ 1.8 0.5 ~ 2.0
High temp. & Titanium alloy 40 ~ 100 0.5 ~ 1.0 0.3 ~ 1.0 40 ~ 100 0.5 ~ 1.2 0.5 ~ 1.5
Hardened steel 50 ~ 100 0.5 ~ 1.0 0.3 ~ 1.0 50 ~ 100 0.5 ~ 1.2 0.5 ~ 1.5

IA097
