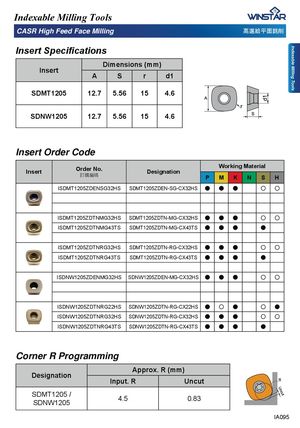

Indexable Milling Tools
CASR High Feed Face Milling 汧懁仵。棱搠⏙

,QVHUW6SHFL¿FDWLRQV


Indexable Milling Tools
Dimensions (mm)
Insert
A S r d1
SDMT1205 12.7 5.56 15 4.6

SDNW1205 12.7 5.56 15 4.6


Insert Order Code
Order No. Working Material
Insert 宑庋佷䩋
Designation
P M K N S H
ISDMT1205ZDENSG32HS SDMT1205ZDEN-SG-CX32HS β β β ΰ ΰ


ISDMT1205ZDTNMG32HS SDMT1205ZDTN-MG-CX32HS β β β ΰ ΰ
ISDMT1205ZDTNMG43TS SDMT1205ZDTN-MG-CX43TS β β β β

ISDMT1205ZDTNRG32HS SDMT1205ZDTN-RG-CX32HS β β β ΰ ΰ
ISDMT1205ZDTNRG43TS SDMT1205ZDTN-RG-CX43TS β β β β

ISDNW1205ZDENMG32HS SDNW1205ZDEN-MG-CX32HS β β β ΰ ΰ


ISDNW1205ZDTNRG22HS SDNW1205ZDTN-RG-CX22HS β ΰ β ΰ β
ISDNW1205ZDTNRG32HS SDNW1205ZDTN-RG-CX32HS β β β ΰ ΰ
ISDNW1205ZDTNRG43TS SDNW1205ZDTN-RG-CX43TS β β β β


Corner R Programming
Approx. R (mm)
Designation
Input. R Uncut
SDMT1205 /
4.5 0.83
SDNW1205
IA095
