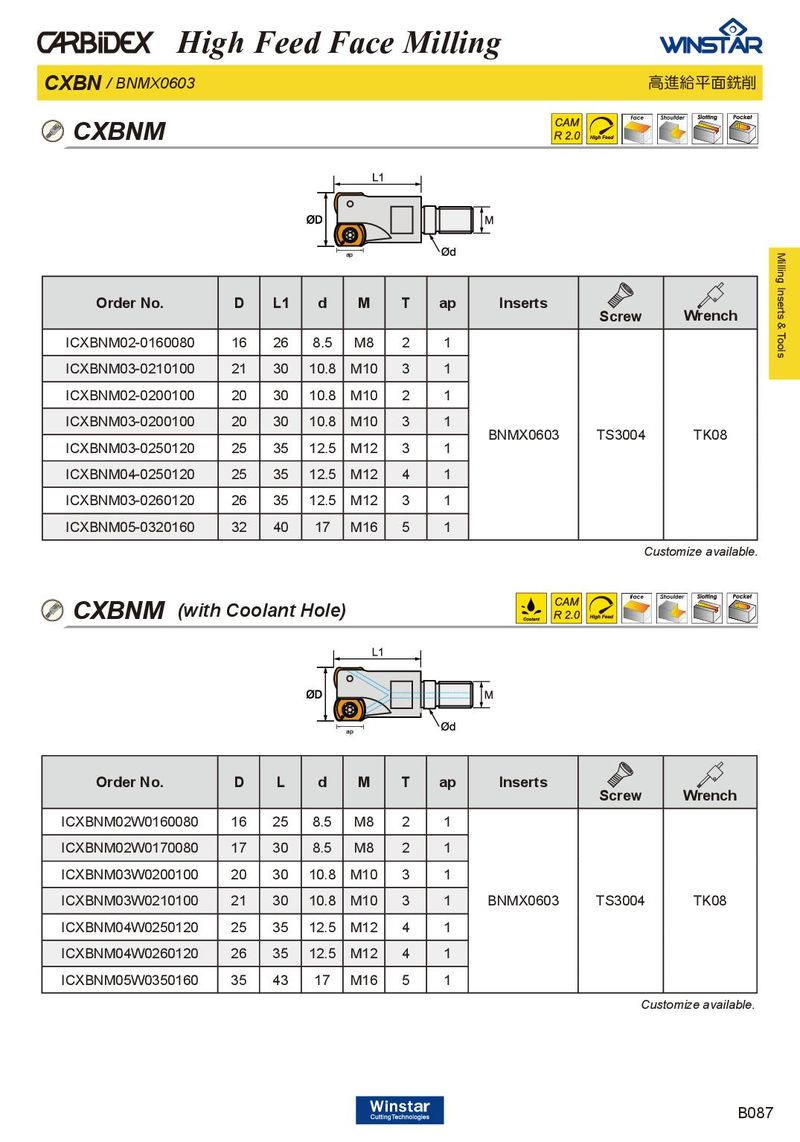

CXBNM
ap
| Order No. | D | L1 | d | M | T | ap | Inserts | Screw | Wrench |
| ICXBNM02-0160080 | 16 | 26 | 8.5 | M8 | 2 | 1 | |||
| ICXBNM03-0210100 | 21 | 30 | 10.8 | M10 | 3 | 1 | |||
| ICXBNM02-0200100 | 20 | 30 | 10.8 | M10 | 2 | 1 | |||
| ICXBNM03-0200100 | 20 | 30 | 10.8 | M10 | 3 | 1 | |||
| ICXBNM03-0250120 | 25 | 35 | 12.5 | M12 | 3 | 1 | BNMX0603 | TS3004 | TK08 |
| ICXBNM04-0250120 | 25 | 35 | 12.5 | M12 | 4 | 1 | |||
| ICXBNM03-0260120 | 26 | 35 | 12.5 | M12 | 3 | 1 | |||
| ICXBNM05-0320160 | 32 | 40 | 17 | M16 | 5 | 1 |
Customize available.
CXBNM (with Coolant Hole)
ap
| Order No. | D | L | d | M | T | ap | Inserts | Screw | Wrench |
| ICXBNM02W0160080 | 16 | 25 | 8.5 | M8 | 2 | 1 | |||
| ICXBNM02W0170080 | 17 | 30 | 8.5 | M8 | 2 | 1 | |||
| ICXBNM03W0200100 | 20 | 30 | 10.8 | M10 | 3 | 1 | |||
| ICXBNM03W0210100 | 21 | 30 | 10.8 | M10 | 3 | 1 | BNMX0603 | TS3004 | TK08 |
| ICXBNM04W0250120 | 25 | 35 | 12.5 | M12 | 4 | 1 | |||
| ICXBNM04W0260120 | 26 | 35 | 12.5 | M12 | 4 | 1 | |||
| ICXBNM05W0350160 | 35 | 43 | 17 | M16 | 5 | 1 |
Customize available.
