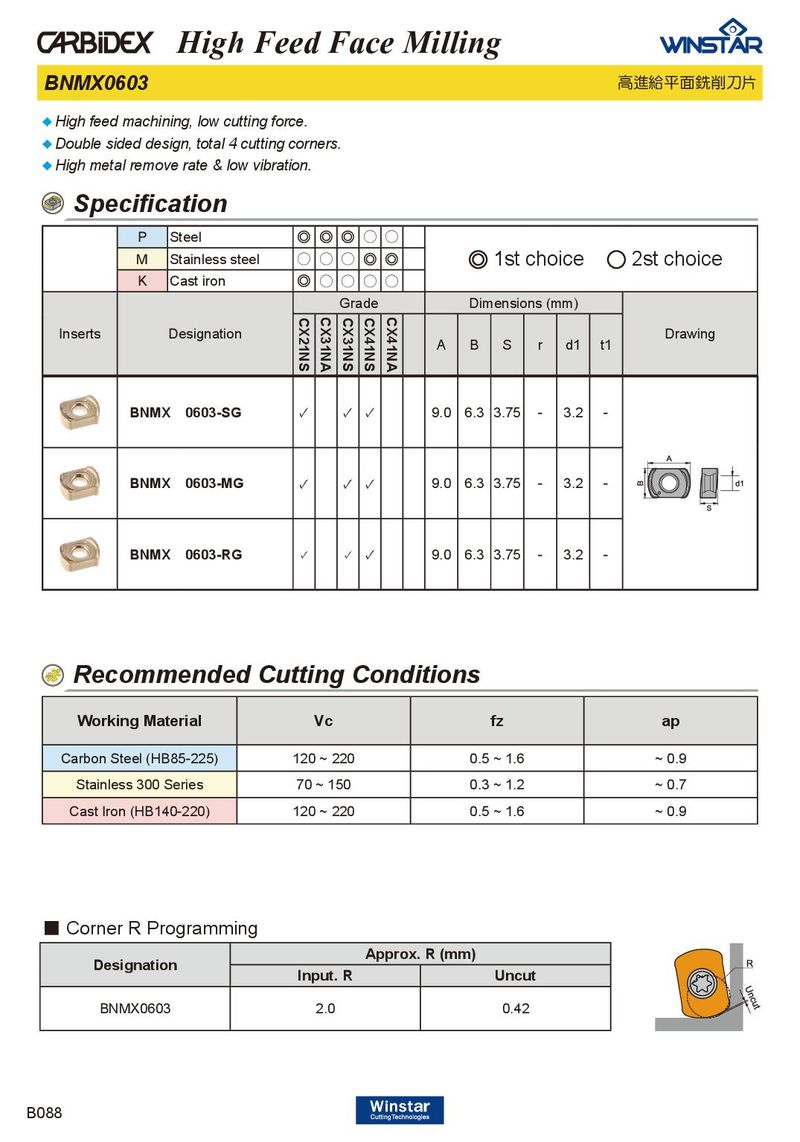

High Feed Face Milling BNMX0603 高進給平面銑削刀片 ♦ High feed machining, low cutting force. ♦ Double sided design, total 4 cutting corners. ♦ High metal remove rate & low vibration. Specification P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA Inserts Designation Drawing A B S r d1 t1 BNMX 0603-SG ✓ ✓ ✓ 9.0 6.3 3.75 - 3.2 - BNMX 0603-MG ✓ ✓ ✓ 9.0 6.3 3.75 - 3.2 - BNMX 0603-RG ✓ ✓ ✓ 9.0 6.3 3.75 - 3.2 - Recommended Cutting Conditions Working Material Vc fz ap Carbon Steel (HB85-225) 120 ~ 220 0.5 ~ 1.6 ~ 0.9 Stainless 300 Series 70 ~ 150 0.3 ~ 1.2 ~ 0.7 Cast Iron (HB140-220) 120 ~ 220 0.5 ~ 1.6 ~ 0.9 ■ Corner R Programming Approx. R (mm) Designation Input. R Uncut BNMX0603 2.0 0.42 B088
