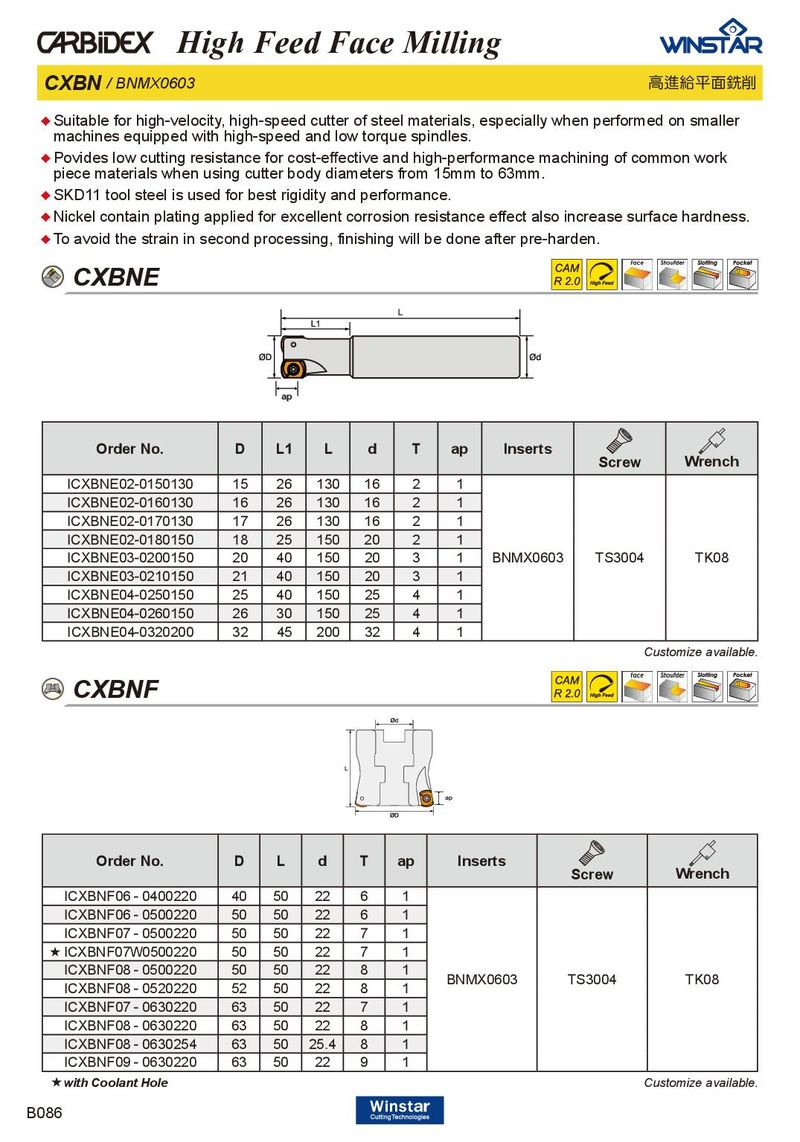

High Feed Face Milling CXBN / BNMX0603 高進給平面銑削 ♦ Suitable for high-velocity, high-speed cutter of steel materials, especially when performed on smaller machines equipped with high-speed and low torque spindles. ♦ Povides low cutting resistance for cost-effective and high-performance machining of common work piece materials when using cutter body diameters from 15mm to 63mm. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. CXBNE ap Order No. D L1 L d T ap Inserts Screw Wrench ICXBNE02-0150130 15 26 130 16 2 1 ICXBNE02-0160130 16 26 130 16 2 1 ICXBNE02-0170130 17 26 130 16 2 1 ICXBNE02-0180150 18 25 150 20 2 1 ICXBNE03-0200150 20 40 150 20 3 1 BNMX0603 TS3004 TK08 ICXBNE03-0210150 21 40 150 20 3 1 ICXBNE04-0250150 25 40 150 25 4 1 ICXBNE04-0260150 26 30 150 25 4 1 ICXBNE04-0320200 32 45 200 32 4 1 Customize available. CXBNF ap Order No. D L d T ap Inserts Screw Wrench ICXBNF06 - 0400220 40 50 22 6 1 ICXBNF06 - 0500220 50 50 22 6 1 ICXBNF07 - 0500220 50 50 22 7 1 ★ ICXBNF07W0500220 50 50 22 7 1 ICXBNF08 - 0500220 50 50 22 8 1 BNMX0603 TS3004 TK08 ICXBNF08 - 0520220 52 50 22 8 1 ICXBNF07 - 0630220 63 50 22 7 1 ICXBNF08 - 0630220 63 50 22 8 1 ICXBNF08 - 0630254 63 50 25.4 8 1 ICXBNF09 - 0630220 63 50 22 9 1 ★ with Coolant Hole Customize available. B086
