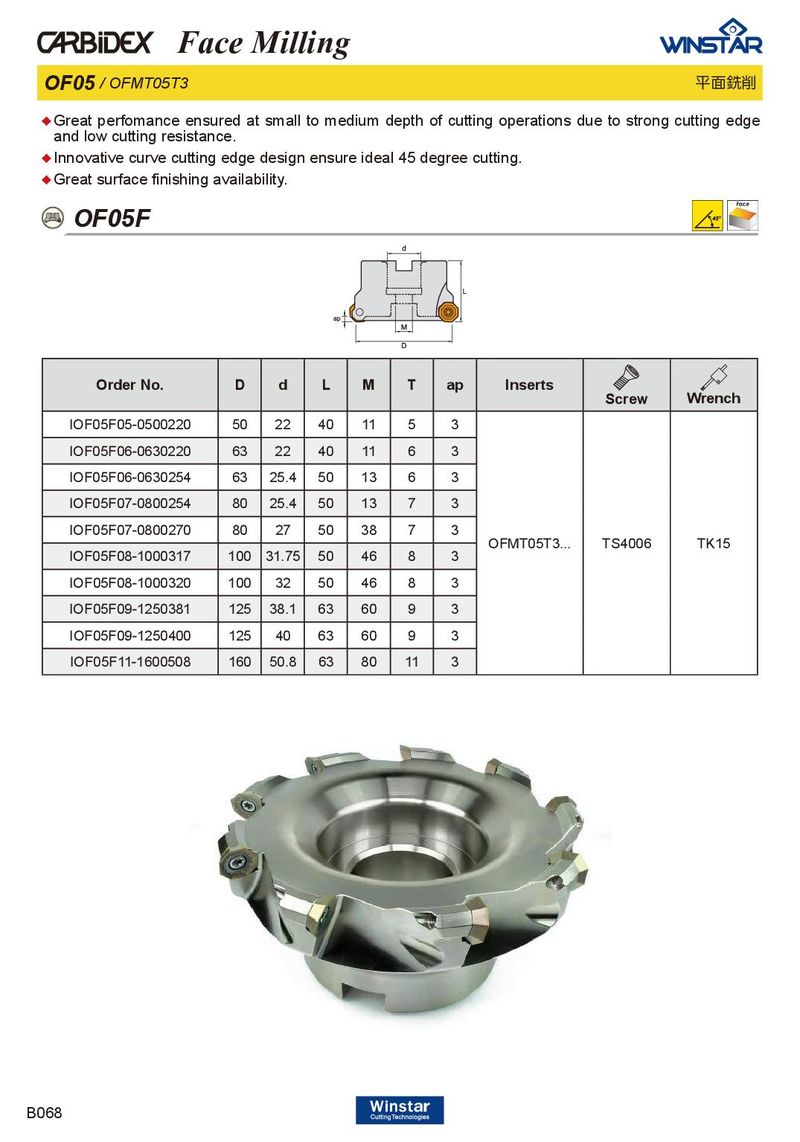

OF05 / OFMT05T3 平面銑削
- Great perfomance ensured at small to medium depth of cutting operations due to strong cutting edge and low cutting resistance.
- Innovative curve cutting edge design ensure ideal 45 degree cutting.
- Great surface finishing availability. OF05F
| Order No. | D | d | L | M | T | ap | Inserts | Screw | Wrench |
| IOF05F05-0500220 | 50 | 22 | 40 | 11 | 5 | 3 | |||
| IOF05F06-0630220 | 63 | 22 | 40 | 11 | 6 | 3 | |||
| IOF05F06-0630254 | 63 | 25.4 | 50 | 13 | 6 | 3 | |||
| IOF05F07-0800254 | 80 | 25.4 | 50 | 13 | 7 | 3 | |||
| IOF05F07-0800270 | 80 | 27 | 50 | 38 | 7 | 3 | |||
| IOF05F08-1000317 | 100 | 31.75 | 50 | 46 | 8 | 3 | OFMT05T3... | TS4006 | TK15 |
| IOF05F08-1000320 | 100 | 32 | 50 | 46 | 8 | 3 | |||
| IOF05F09-1250381 | 125 | 38.1 | 63 | 60 | 9 | 3 | |||
| IOF05F09-1250400 | 125 | 40 | 63 | 60 | 9 | 3 | |||
| IOF05F11-1600508 | 160 | 50.8 | 63 | 80 | 11 | 3 |
