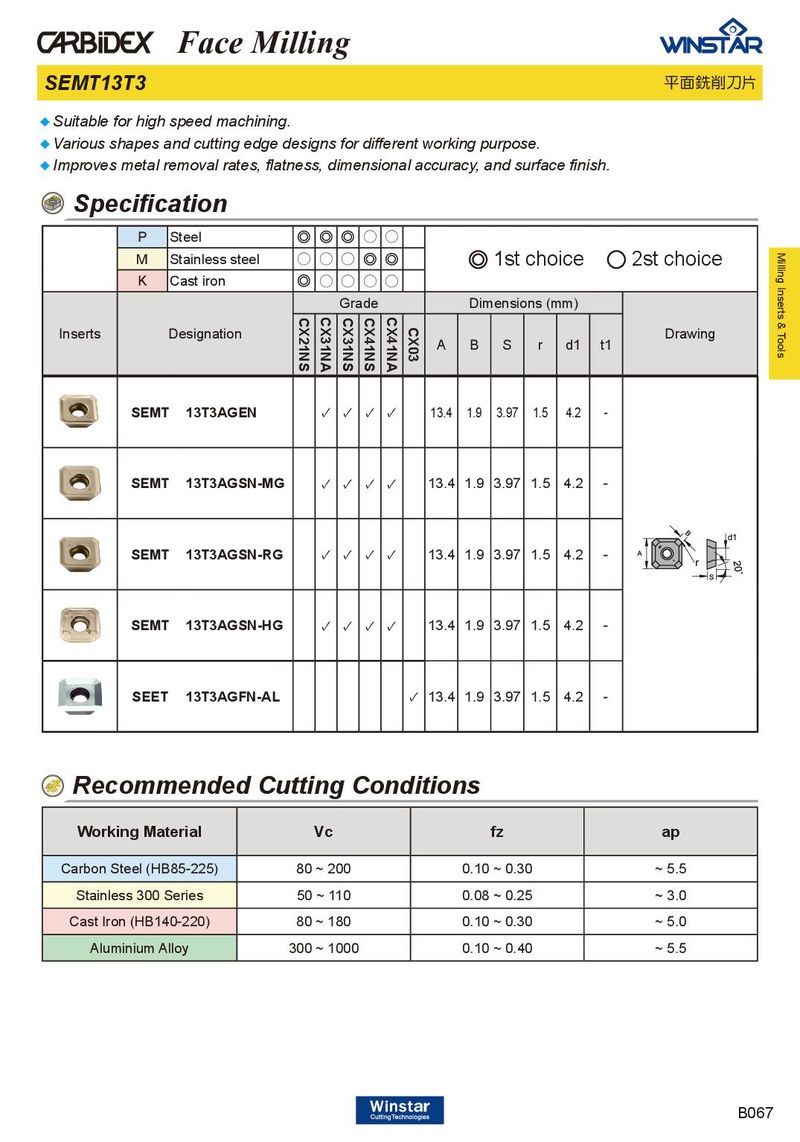

SEMT13T3 平面銑削刀片

  • Suitable for high speed machining.
  • Various shapes and cutting edge designs for different working purpose.
  • Improves metal removal rates, flatness, dimensional accuracy, and surface finish. Specification
PSteel◎◎◎○○
InsertsM KStainless steel Cast iron Designation○ ◎ CX21NS○ ○ CX31NA○ ○ Gra CX31NS◎ ○ de CX41NS◎ ○ CX41NACX03ADim B1st ensio Scho ns( rice mm) d1t12st choice Drawing
SEMT13T3AGEN✓✓✓✓13.41.93.971.54.2-
SEMT13T3AGSN-MG✓✓✓✓13.41.93.971.54.2-
SEMT13T3AGSN-RG✓✓✓✓13.41.93.971.54.2-
SEMT13T3AGSN-HG✓✓✓✓13.41.93.971.54.2-
SEET13T3AGFN-AL✓13.41.93.971.54.2-

Recommended Cutting Conditions

Working MaterialVcfzap
Carbon Steel (HB85-225)80 ~ 2000.10 ~ 0.30~ 5.5
Stainless 300 Series50 ~ 1100.08 ~ 0.25~ 3.0
Cast Iron (HB140-220)80 ~ 1800.10 ~ 0.30~ 5.0
Aluminium Alloy300 ~ 10000.10 ~ 0.40~ 5.5
