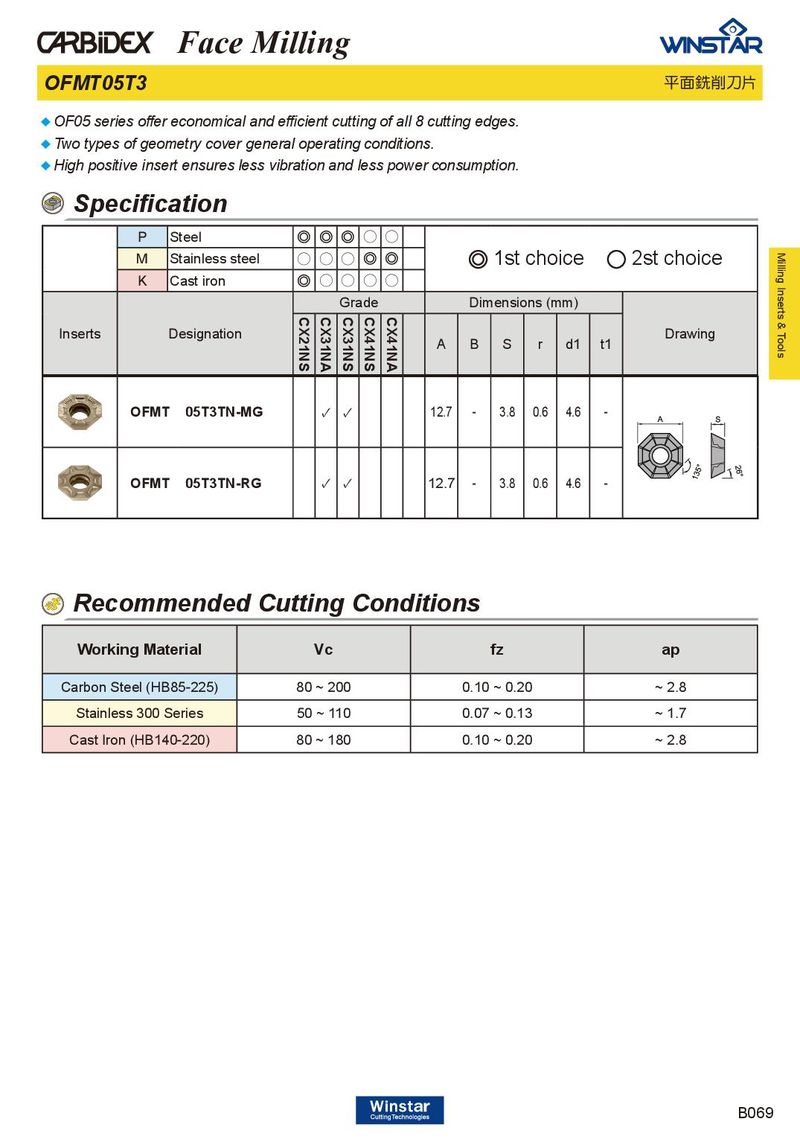

OFMT05T3 平面銑削刀片

♦OF05 series offer economical and efficient cutting of all 8 cutting edges. ♦Two types of geometry cover general operating conditions. ♦High positive insert ensures less vibration and less power consumption.

Specification

PSteel◎ ◎ ◎○ ○
MStainless steel○ ○ ○1st choice2st choice
KCast iron◎○ ○ ○ ○
GradeDimensions (mm)

Inserts Designation Drawing

A B S r d1 t1

OFMT 05T3TN-MG ✓ ✓ 12.7 - 3.8 0.6 4.6 -

OFMT 05T3TN-RG ✓ ✓ 12.7 - 3.8 0.6 4.6 -

Recommended Cutting Conditions

Working MaterialVcfzap
Carbon Steel (HB85-225)80 ~ 2000.10 ~ 0.20~ 2.8
Stainless 300 Series50 ~ 1100.07 ~ 0.13~ 1.7
Cast Iron (HB140-220)80 ~ 1800.10 ~ 0.20~ 2.8
