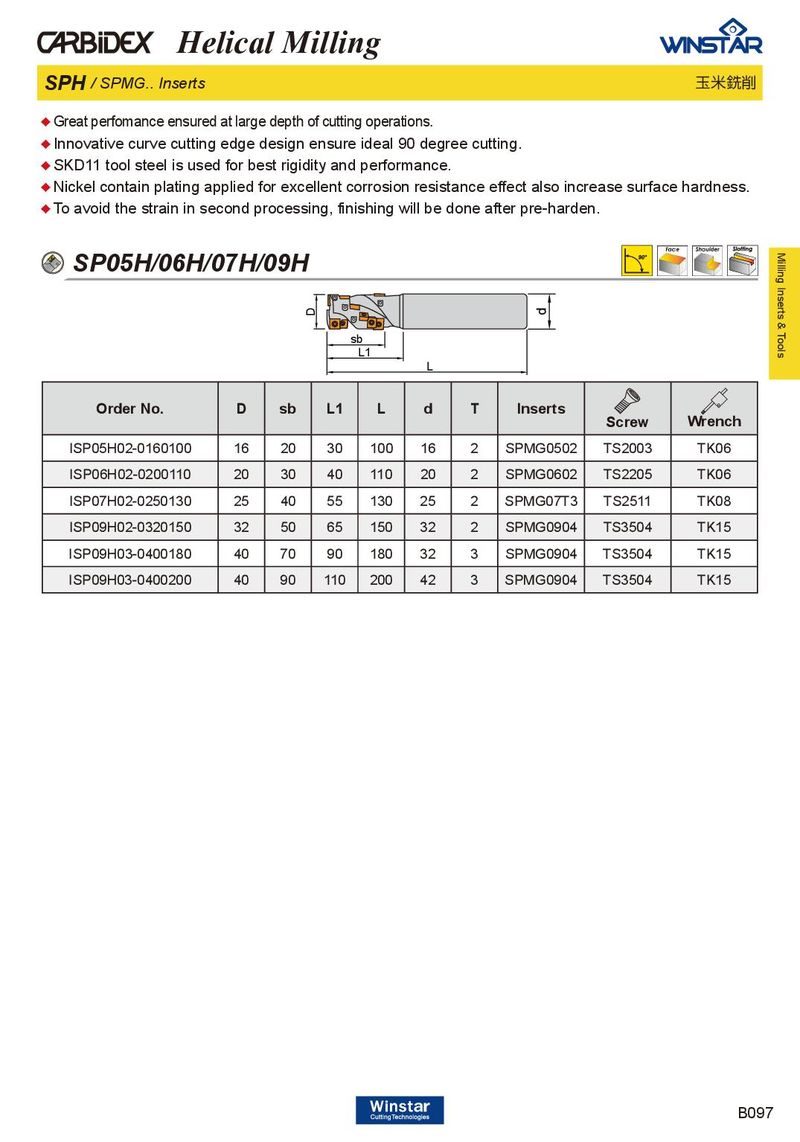

Helical Milling SPH / SPMG.. Inserts 玉米銑削 ♦ Great perfomance ensured at large depth of cutting operations. ♦ Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. Milling Inserts & Tools SP05H/06H/07H/09H D sb L1 L Order No. D sb L1 L d T Inserts Screw Wrench ISP05H02-0160100 16 20 30 100 16 2 SPMG0502 TS2003 TK06 ISP06H02-0200110 20 30 40 110 20 2 SPMG0602 TS2205 TK06 ISP07H02-0250130 25 40 55 130 25 2 SPMG07T3 TS2511 TK08 ISP09H02-0320150 32 50 65 150 32 2 SPMG0904 TS3504 TK15 ISP09H03-0400180 40 70 90 180 32 3 SPMG0904 TS3504 TK15 ISP09H03-0400200 40 90 110 200 42 3 SPMG0904 TS3504 TK15 B097
