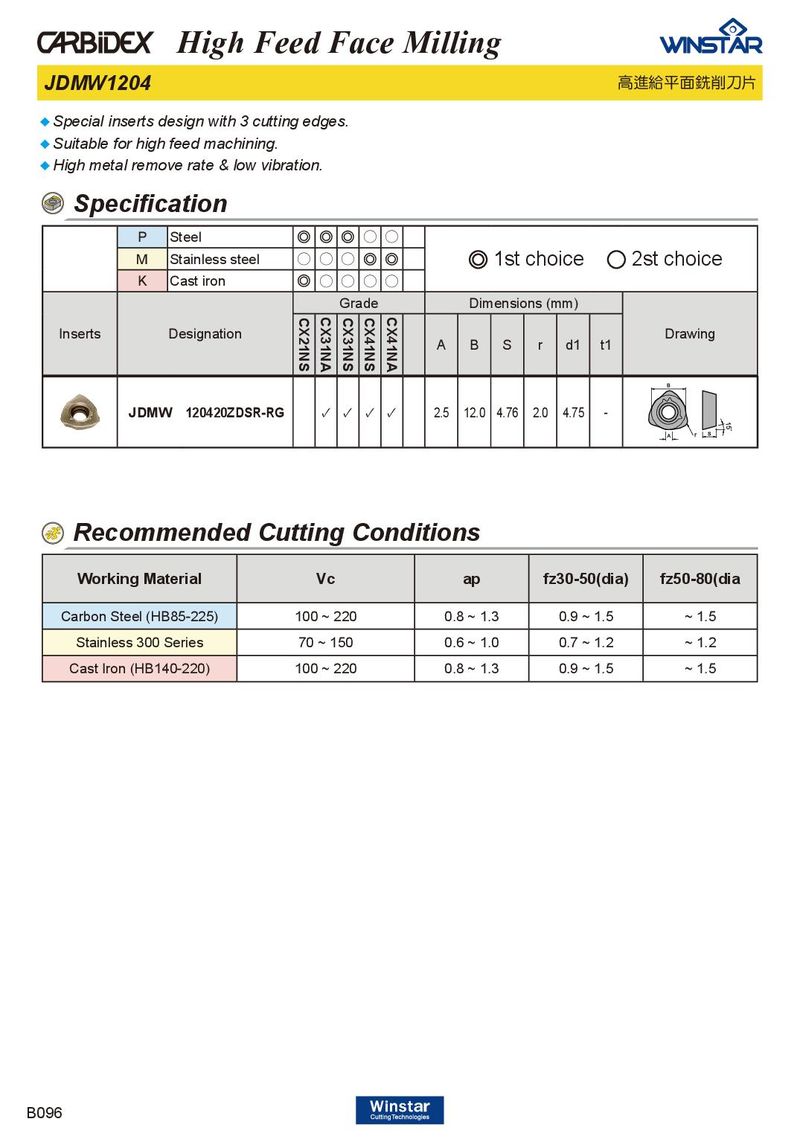

High Feed Face Milling JDMW1204 高進給平面銑削刀片 ♦ Special inserts design with 3 cutting edges. ♦ Suitable for high feed machining. ♦ High metal remove rate & low vibration. Specification P Steel ◎ ◎ ◎ ○ ○ M Stainless steel ○ ○ ○ ◎ ◎ 1st choice 2st choice K Cast iron ◎ ○ ○ ○ ○ Grade Dimensions (mm) CX21NS CX31NA CX31NS CX41NS CX41NA Inserts Designation Drawing A B S r d1 t1 JDMW 120420ZDSR-RG ✓ ✓ ✓ ✓ 2.5 12.0 4.76 2.0 4.75 - Recommended Cutting Conditions Working Material Vc ap fz30-50(dia) fz50-80(dia Carbon Steel (HB85-225) 100 ~ 220 0.8 ~ 1.3 0.9 ~ 1.5 ~ 1.5 Stainless 300 Series 70 ~ 150 0.6 ~ 1.0 0.7 ~ 1.2 ~ 1.2 Cast Iron (HB140-220) 100 ~ 220 0.8 ~ 1.3 0.9 ~ 1.5 ~ 1.5 B096
