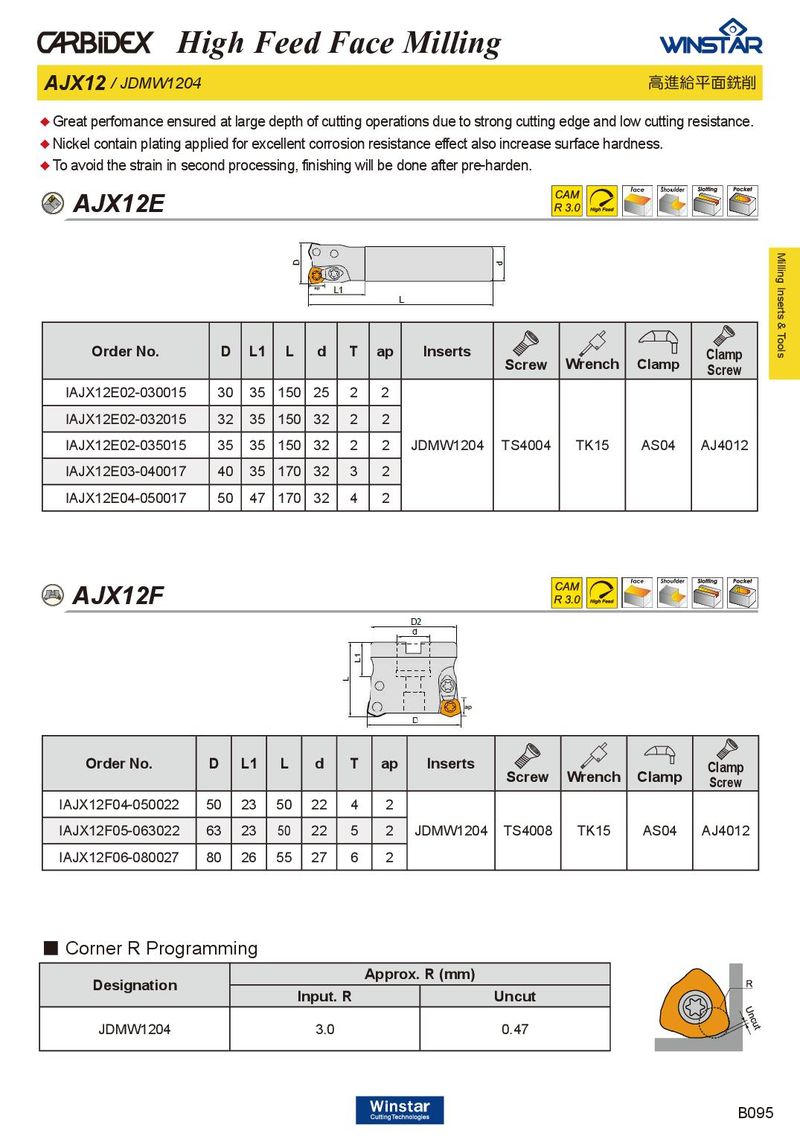

High Feed Face Milling AJX12 / JDMW1204 高進給平面銑削 ♦ Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. AJX12E Milling Inserts & Tools ap Order No. D L1 L d T ap Inserts Clamp Screw Wrench Clamp Screw IAJX12E02-030015 30 35 150 25 2 2 IAJX12E02-032015 32 35 150 32 2 2 IAJX12E02-035015 35 35 150 32 2 2 JDMW1204 TS4004 TK15 AS04 AJ4012 IAJX12E03-040017 40 35 170 32 3 2 IAJX12E04-050017 50 47 170 32 4 2 AJX12F ap Order No. D L1 L d T ap Inserts Clamp Screw Wrench Clamp Screw IAJX12F04-050022 50 23 50 22 4 2 IAJX12F05-063022 63 23 50 22 5 2 JDMW1204 TS4008 TK15 AS04 AJ4012 IAJX12F06-080027 80 26 55 27 6 2 ■ Corner R Programming Approx. R (mm) Designation Input. R Uncut JDMW1204 3.0 0.47 B095
