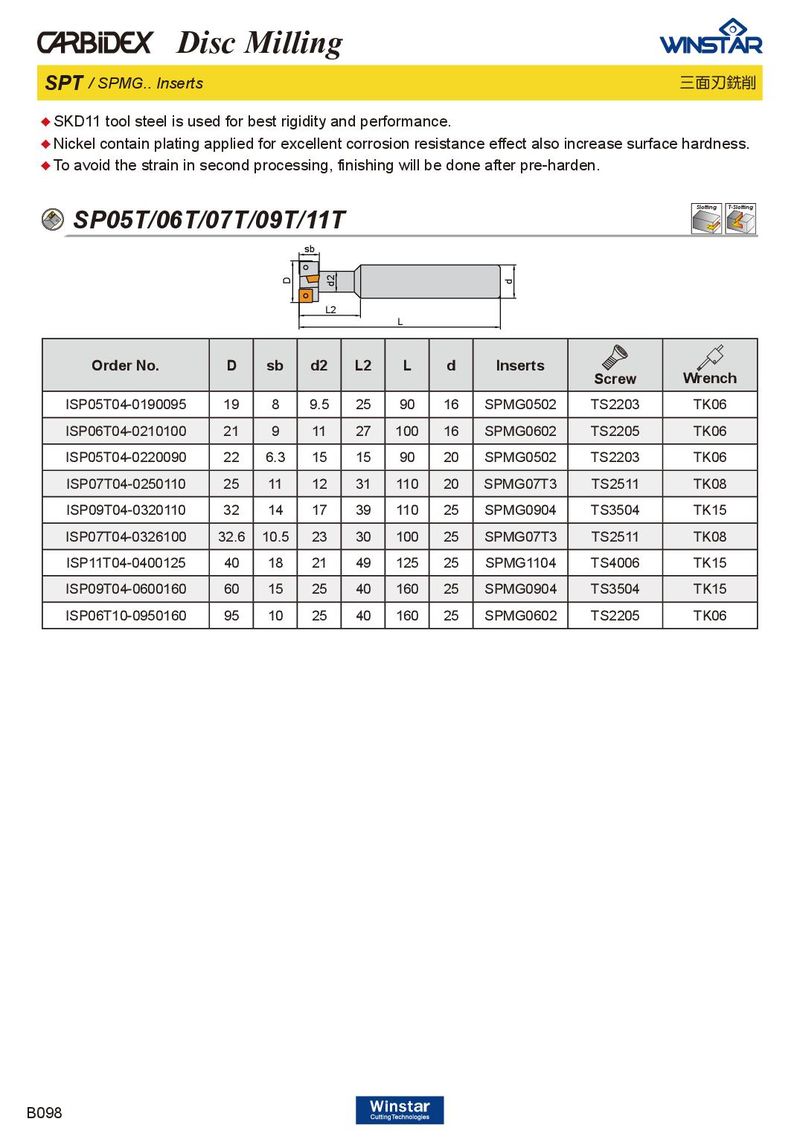

Disc Milling SPT / SPMG.. Inserts 三面刃銑削 ♦ SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦ To avoid the strain in second processing, finishing will be done after pre-harden. Slotting T-Slotting SP05T/06T/07T/09T/11T sb D d2 d L2 L Order No. D sb d2 L2 L d Inserts Screw Wrench ISP05T04-0190095 19 8 9.5 25 90 16 SPMG0502 TS2203 TK06 ISP06T04-0210100 21 9 11 27 100 16 SPMG0602 TS2205 TK06 ISP05T04-0220090 22 6.3 15 15 90 20 SPMG0502 TS2203 TK06 ISP07T04-0250110 25 11 12 31 110 20 SPMG07T3 TS2511 TK08 ISP09T04-0320110 32 14 17 39 110 25 SPMG0904 TS3504 TK15 ISP07T04-0326100 32.6 10.5 23 30 100 25 SPMG07T3 TS2511 TK08 ISP11T04-0400125 40 18 21 49 125 25 SPMG1104 TS4006 TK15 ISP09T04-0600160 60 15 25 40 160 25 SPMG0904 TS3504 TK15 ISP06T10-0950160 95 10 25 40 160 25 SPMG0602 TS2205 TK06 B098
