Каталог Winstar сверление

DTN Solid Ca	r	bide Drills - Tip	angle	120° (f	or Spotting)	外冷定點	鎢鋼鑽頭
PMKN ●○●		S H Product Spec ．120° Tip Angle ．Tolerance h8	s	．60° Cham	fer Angle ．External Coolant	．UNIX Coating
		．For Alloy Steel,	Stainless S	teel and Cas	t Iron.
							Unit:mm
Order No.		D L1	L	Ds	Order No. D	L1 L	Ds
DTN03001201		3.00 8	50	3
DTN04001201		4.00 10	50	4
DTN05001201		5.00 13	50	5
DTN06001201		6.00 15	50	6
DTN08001201		8.00 20	60	8
DTN10001201		10.00 25	75	10
DTN12001201		12.00 30	75	12
DTN16001201		16.00 35	100	16

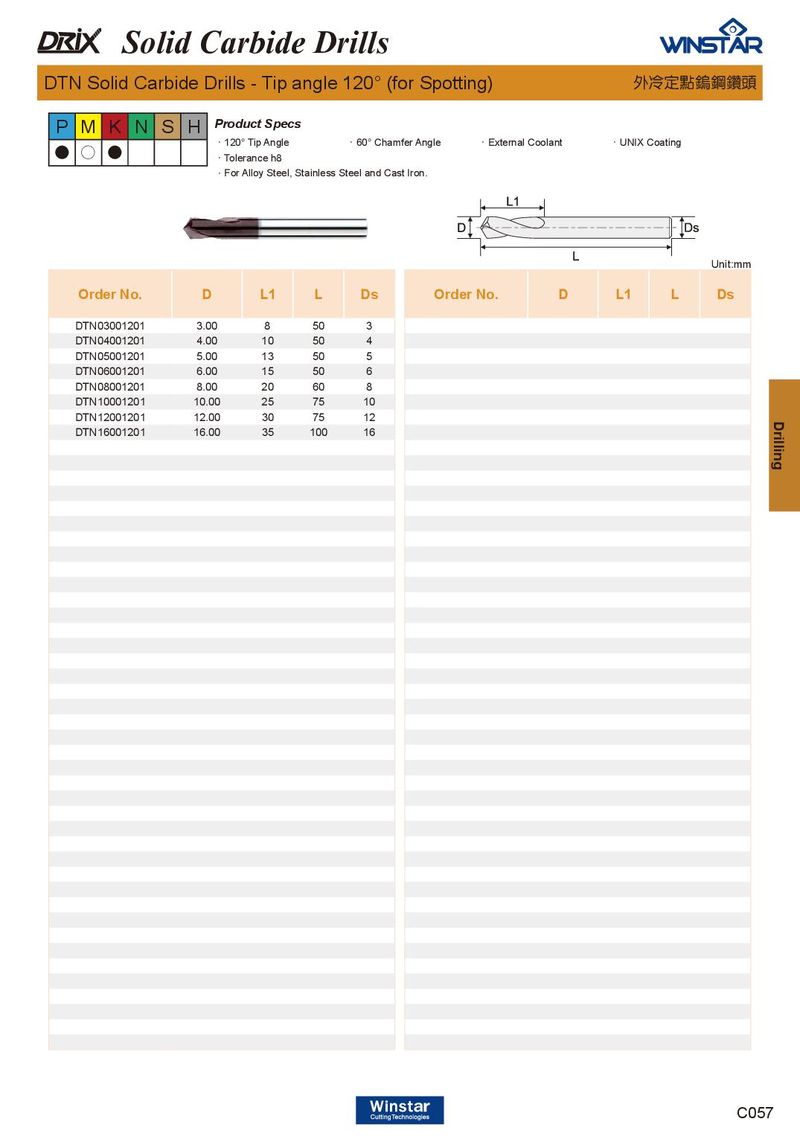

Каталог Winstar сверление - страница 63
