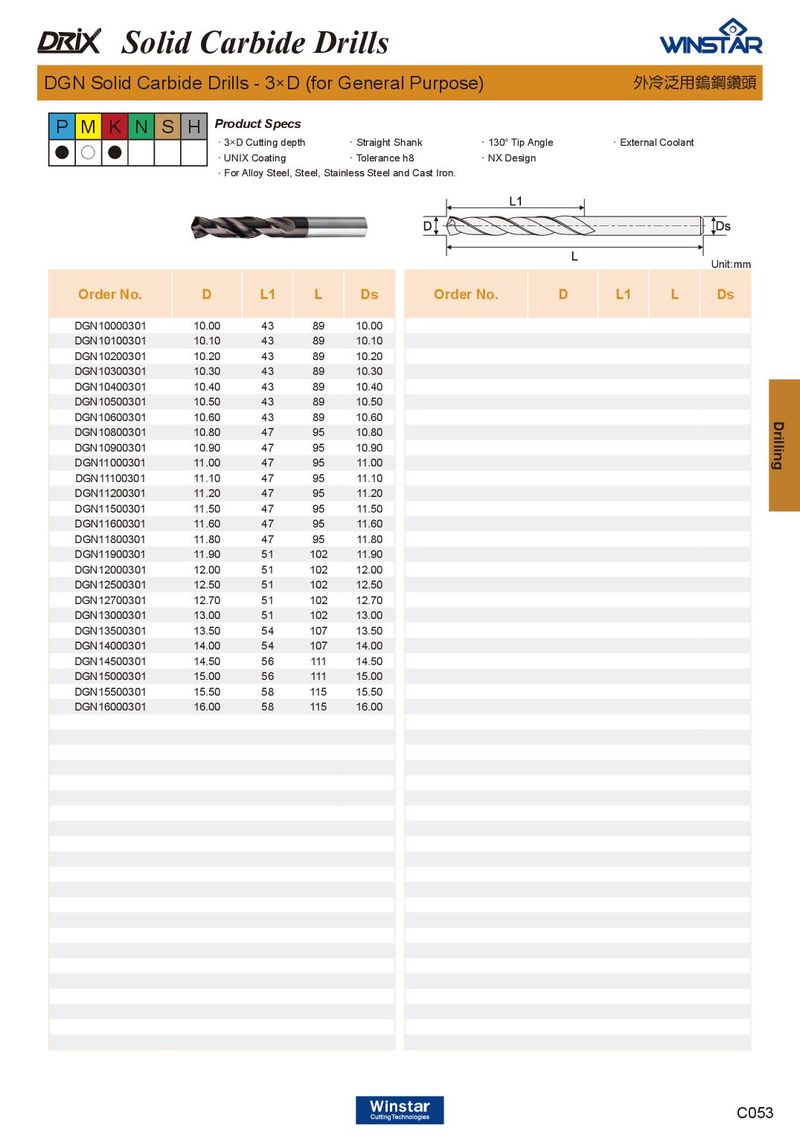

| DGN Solid C | ar | bide Drill | s - 3×D | (for | General | Purpose) | 外冷泛用鎢鋼鑽頭 |
| PMKN | S H Prod | uct Spec | s | ||||
| ●○● | ．3× ．UN | D Cutting dep IX Coating | th | ．Straight S ．Tolerance | hank ．130° Tip Angle h8 ．NX Design | ．External Coolant | |
| ．For | Alloy Steel, | Steel, Sta | inless Steel an | d Cast Iron. | |||
| Unit:mm | |||||||
| Order No. | D | L1 | L | Ds | Order No. D | L1 L Ds | |
| DGN10000301 | 10.00 | 43 | 89 | 10.00 | |||
| DGN10100301 | 10.10 | 43 | 89 | 10.10 | |||
| DGN10200301 | 10.20 | 43 | 89 | 10.20 | |||
| DGN10300301 | 10.30 | 43 | 89 | 10.30 | |||
| DGN10400301 | 10.40 | 43 | 89 | 10.40 | |||
| DGN10500301 | 10.50 | 43 | 89 | 10.50 | |||
| DGN10600301 | 10.60 | 43 | 89 | 10.60 | |||
| DGN10800301 | 10.80 | 47 | 95 | 10.80 | |||
| DGN10900301 | 10.90 | 47 | 95 | 10.90 | |||
| DGN11000301 | 11.00 | 47 | 95 | 11.00 | |||
| DGN11100301 | 11.10 | 47 | 95 | 11.10 | |||
| DGN11200301 | 11.20 | 47 | 95 | 11.20 | |||
| DGN11500301 | 11.50 | 47 | 95 | 11.50 | |||
| DGN11600301 | 11.60 | 47 | 95 | 11.60 | |||
| DGN11800301 | 11.80 | 47 | 95 | 11.80 | |||
| DGN11900301 | 11.90 | 51 | 102 | 11.90 | |||
| DGN12000301 | 12.00 | 51 | 102 | 12.00 | |||
| DGN12500301 | 12.50 | 51 | 102 | 12.50 | |||
| DGN12700301 | 12.70 | 51 | 102 | 12.70 | |||
| DGN13000301 | 13.00 | 51 | 102 | 13.00 | |||
| DGN13500301 | 13.50 | 54 | 107 | 13.50 | |||
| DGN14000301 | 14.00 | 54 | 107 | 14.00 | |||
| DGN14500301 | 14.50 | 56 | 111 | 14.50 | |||
| DGN15000301 | 15.00 | 56 | 111 | 15.00 | |||
| DGN15500301 | 15.50 | 58 | 115 | 15.50 | |||
| DGN16000301 | 16.00 | 58 | 115 | 16.00 |
