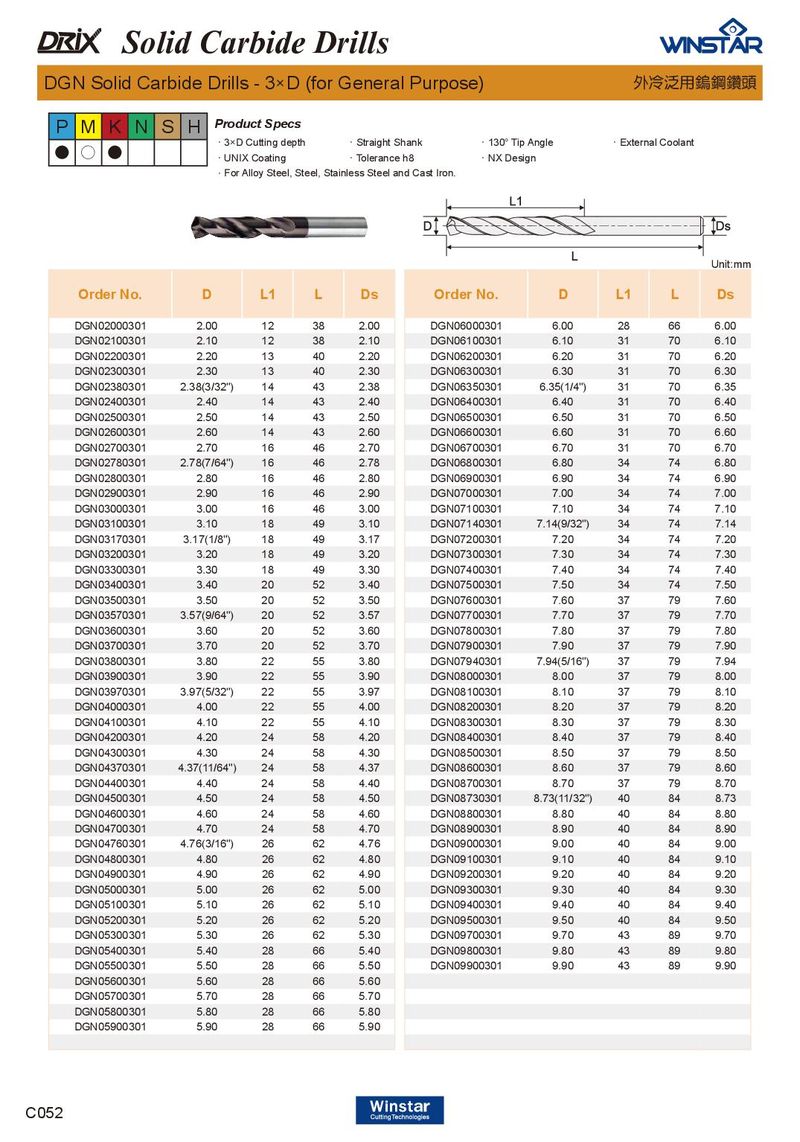

Каталог Winstar сверление - страница 58
Навигация
Каталог Winstar инструмент со сменными пластинами 2020
Брошюра Winstar основная номенклатура 2021
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar твердосплавные пластины и вставки
PMKNSH Product Specs
．3×D Cutting depth ．Straight Shank ．130° Tip Angle ．External Coolant
- ○ UNIX Coating Tolerance h8 NX Design
．For Alloy Steel, Steel, Stainless Steel and Cast Iron.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DGN02000301 | 2.00 | 12 | 38 | 2.00 | DGN06000301 | 6.00 | 28 | 66 | 6.00 |
| DGN02100301 | 2.10 | 12 | 38 | 2.10 | DGN06100301 | 6.10 | 31 | 70 | 6.10 |
| DGN02200301 | 2.20 | 13 | 40 | 2.20 | DGN06200301 | 6.20 | 31 | 70 | 6.20 |
| DGN02300301 | 2.30 | 13 | 40 | 2.30 | DGN06300301 | 6.30 | 31 | 70 | 6.30 |
| DGN02380301 | 2.38(3/32") | 14 | 43 | 2.38 | DGN06350301 | 6.35(1/4") | 31 | 70 | 6.35 |
| DGN02400301 | 2.40 | 14 | 43 | 2.40 | DGN06400301 | 6.40 | 31 | 70 | 6.40 |
| DGN02500301 | 2.50 | 14 | 43 | 2.50 | DGN06500301 | 6.50 | 31 | 70 | 6.50 |
| DGN02600301 | 2.60 | 14 | 43 | 2.60 | DGN06600301 | 6.60 | 31 | 70 | 6.60 |
| DGN02700301 | 2.70 | 16 | 46 | 2.70 | DGN06700301 | 6.70 | 31 | 70 | 6.70 |
| DGN02780301 | 2.78(7/64") | 16 | 46 | 2.78 | DGN06800301 | 6.80 | 34 | 74 | 6.80 |
| DGN02800301 | 2.80 | 16 | 46 | 2.80 | DGN06900301 | 6.90 | 34 | 74 | 6.90 |
| DGN02900301 | 2.90 | 16 | 46 | 2.90 | DGN07000301 | 7.00 | 34 | 74 | 7.00 |
| DGN03000301 | 3.00 | 16 | 46 | 3.00 | DGN07100301 | 7.10 | 34 | 74 | 7.10 |
| DGN03100301 | 3.10 | 18 | 49 | 3.10 | DGN07140301 | 7.14(9/32") | 34 | 74 | 7.14 |
| DGN03170301 | 3.17(1/8") | 18 | 49 | 3.17 | DGN07200301 | 7.20 | 34 | 74 | 7.20 |
| DGN03200301 | 3.20 | 18 | 49 | 3.20 | DGN07300301 | 7.30 | 34 | 74 | 7.30 |
| DGN03300301 | 3.30 | 18 | 49 | 3.30 | DGN07400301 | 7.40 | 34 | 74 | 7.40 |
| DGN03400301 | 3.40 | 20 | 52 | 3.40 | DGN07500301 | 7.50 | 34 | 74 | 7.50 |
| DGN03500301 | 3.50 | 20 | 52 | 3.50 | DGN07600301 | 7.60 | 37 | 79 | 7.60 |
| DGN03570301 | 3.57(9/64") | 20 | 52 | 3.57 | DGN07700301 | 7.70 | 37 | 79 | 7.70 |
| DGN03600301 | 3.60 | 20 | 52 | 3.60 | DGN07800301 | 7.80 | 37 | 79 | 7.80 |
| DGN03700301 | 3.70 | 20 | 52 | 3.70 | DGN07900301 | 7.90 | 37 | 79 | 7.90 |
| DGN03800301 | 3.80 | 22 | 55 | 3.80 | DGN07940301 | 7.94(5/16") | 37 | 79 | 7.94 |
| DGN03900301 | 3.90 | 22 | 55 | 3.90 | DGN08000301 | 8.00 | 37 | 79 | 8.00 |
| DGN03970301 | 3.97(5/32") | 22 | 55 | 3.97 | DGN08100301 | 8.10 | 37 | 79 | 8.10 |
| DGN04000301 | 4.00 | 22 | 55 | 4.00 | DGN08200301 | 8.20 | 37 | 79 | 8.20 |
| DGN04100301 | 4.10 | 22 | 55 | 4.10 | DGN08300301 | 8.30 | 37 | 79 | 8.30 |
| DGN04200301 | 4.20 | 24 | 58 | 4.20 | DGN08400301 | 8.40 | 37 | 79 | 8.40 |
| DGN04300301 | 4.30 | 24 | 58 | 4.30 | DGN08500301 | 8.50 | 37 | 79 | 8.50 |
| DGN04370301 | 4.37(11/64") | 24 | 58 | 4.37 | DGN08600301 | 8.60 | 37 | 79 | 8.60 |
| DGN04400301 | 4.40 | 24 | 58 | 4.40 | DGN08700301 | 8.70 | 37 | 79 | 8.70 |
| DGN04500301 | 4.50 | 24 | 58 | 4.50 | DGN08730301 | 8.73(11/32") | 40 | 84 | 8.73 |
| DGN04600301 | 4.60 | 24 | 58 | 4.60 | DGN08800301 | 8.80 | 40 | 84 | 8.80 |
| DGN04700301 | 4.70 | 24 | 58 | 4.70 | DGN08900301 | 8.90 | 40 | 84 | 8.90 |
| DGN04760301 | 4.76(3/16") | 26 | 62 | 4.76 | DGN09000301 | 9.00 | 40 | 84 | 9.00 |
| DGN04800301 | 4.80 | 26 | 62 | 4.80 | DGN09100301 | 9.10 | 40 | 84 | 9.10 |
| DGN04900301 | 4.90 | 26 | 62 | 4.90 | DGN09200301 | 9.20 | 40 | 84 | 9.20 |
| DGN05000301 | 5.00 | 26 | 62 | 5.00 | DGN09300301 | 9.30 | 40 | 84 | 9.30 |
| DGN05100301 | 5.10 | 26 | 62 | 5.10 | DGN09400301 | 9.40 | 40 | 84 | 9.40 |
| DGN05200301 | 5.20 | 26 | 62 | 5.20 | DGN09500301 | 9.50 | 40 | 84 | 9.50 |
| DGN05300301 | 5.30 | 26 | 62 | 5.30 | DGN09700301 | 9.70 | 43 | 89 | 9.70 |
| DGN05400301 | 5.40 | 28 | 66 | 5.40 | DGN09800301 | 9.80 | 43 | 89 | 9.80 |
| DGN05500301 | 5.50 | 28 | 66 | 5.50 | DGN09900301 | 9.90 | 43 | 89 | 9.90 |
| DGN05600301 | 5.60 | 28 | 66 | 5.60 | |||||
| DGN05700301 | 5.70 | 28 | 66 | 5.70 | |||||
| DGN05800301 | 5.80 | 28 | 66 | 5.80 | |||||
| DGN05900301 | 5.90 | 28 | 66 | 5.90 |
