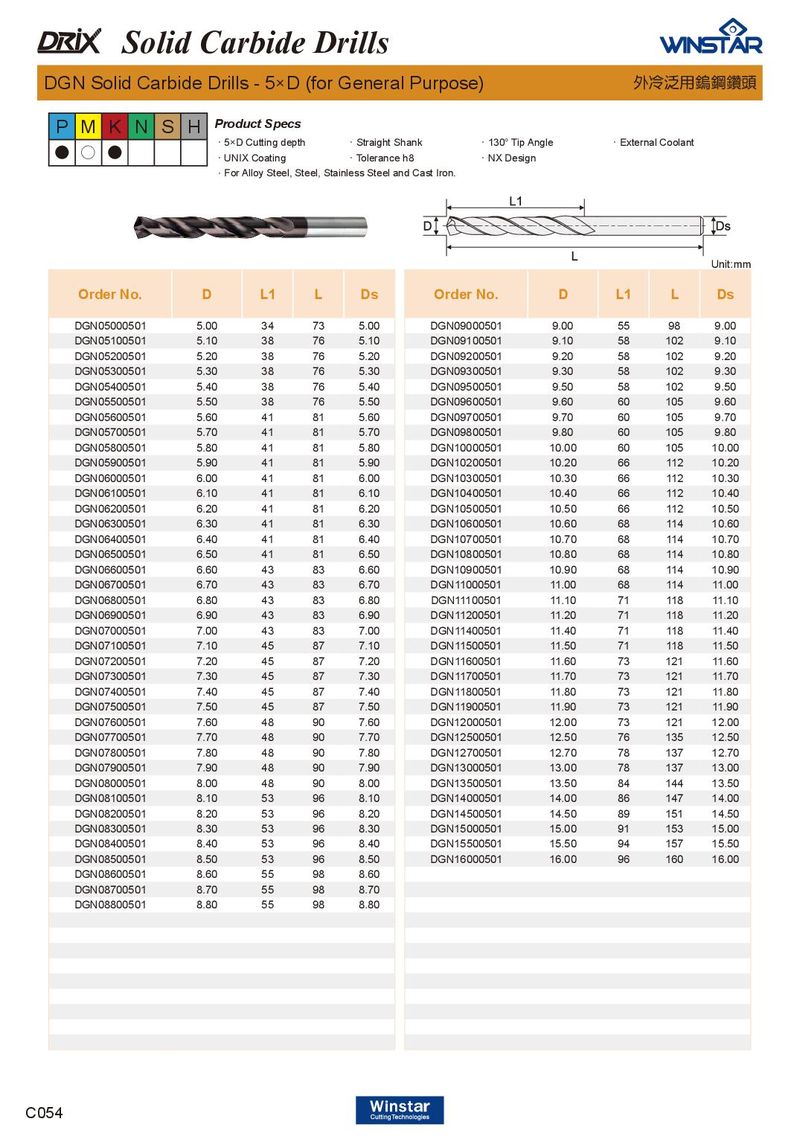

PMKNSH Product Specs
．5×D Cutting depth ．Straight Shank ．130° Tip Angle ．External Coolant
- ○ UNIX Coating Tolerance h8 NX Design
．For Alloy Steel, Steel, Stainless Steel and Cast Iron.
| Unit:mm | |||||||||
| Order No. | D | L1 | L | Ds | Order No. | D | L1 | L | Ds |
| DGN05000501 | 5.00 | 34 | 73 | 5.00 | DGN09000501 | 9.00 | 55 | 98 | 9.00 |
| DGN05100501 | 5.10 | 38 | 76 | 5.10 | DGN09100501 | 9.10 | 58 | 102 | 9.10 |
| DGN05200501 | 5.20 | 38 | 76 | 5.20 | DGN09200501 | 9.20 | 58 | 102 | 9.20 |
| DGN05300501 | 5.30 | 38 | 76 | 5.30 | DGN09300501 | 9.30 | 58 | 102 | 9.30 |
| DGN05400501 | 5.40 | 38 | 76 | 5.40 | DGN09500501 | 9.50 | 58 | 102 | 9.50 |
| DGN05500501 | 5.50 | 38 | 76 | 5.50 | DGN09600501 | 9.60 | 60 | 105 | 9.60 |
| DGN05600501 | 5.60 | 41 | 81 | 5.60 | DGN09700501 | 9.70 | 60 | 105 | 9.70 |
| DGN05700501 | 5.70 | 41 | 81 | 5.70 | DGN09800501 | 9.80 | 60 | 105 | 9.80 |
| DGN05800501 | 5.80 | 41 | 81 | 5.80 | DGN10000501 | 10.00 | 60 | 105 | 10.00 |
| DGN05900501 | 5.90 | 41 | 81 | 5.90 | DGN10200501 | 10.20 | 66 | 112 | 10.20 |
| DGN06000501 | 6.00 | 41 | 81 | 6.00 | DGN10300501 | 10.30 | 66 | 112 | 10.30 |
| DGN06100501 | 6.10 | 41 | 81 | 6.10 | DGN10400501 | 10.40 | 66 | 112 | 10.40 |
| DGN06200501 | 6.20 | 41 | 81 | 6.20 | DGN10500501 | 10.50 | 66 | 112 | 10.50 |
| DGN06300501 | 6.30 | 41 | 81 | 6.30 | DGN10600501 | 10.60 | 68 | 114 | 10.60 |
| DGN06400501 | 6.40 | 41 | 81 | 6.40 | DGN10700501 | 10.70 | 68 | 114 | 10.70 |
| DGN06500501 | 6.50 | 41 | 81 | 6.50 | DGN10800501 | 10.80 | 68 | 114 | 10.80 |
| DGN06600501 | 6.60 | 43 | 83 | 6.60 | DGN10900501 | 10.90 | 68 | 114 | 10.90 |
| DGN06700501 | 6.70 | 43 | 83 | 6.70 | DGN11000501 | 11.00 | 68 | 114 | 11.00 |
| DGN06800501 | 6.80 | 43 | 83 | 6.80 | DGN11100501 | 11.10 | 71 | 118 | 11.10 |
| DGN06900501 | 6.90 | 43 | 83 | 6.90 | DGN11200501 | 11.20 | 71 | 118 | 11.20 |
| DGN07000501 | 7.00 | 43 | 83 | 7.00 | DGN11400501 | 11.40 | 71 | 118 | 11.40 |
| DGN07100501 | 7.10 | 45 | 87 | 7.10 | DGN11500501 | 11.50 | 71 | 118 | 11.50 |
| DGN07200501 | 7.20 | 45 | 87 | 7.20 | DGN11600501 | 11.60 | 73 | 121 | 11.60 |
| DGN07300501 | 7.30 | 45 | 87 | 7.30 | DGN11700501 | 11.70 | 73 | 121 | 11.70 |
| DGN07400501 | 7.40 | 45 | 87 | 7.40 | DGN11800501 | 11.80 | 73 | 121 | 11.80 |
| DGN07500501 | 7.50 | 45 | 87 | 7.50 | DGN11900501 | 11.90 | 73 | 121 | 11.90 |
| DGN07600501 | 7.60 | 48 | 90 | 7.60 | DGN12000501 | 12.00 | 73 | 121 | 12.00 |
| DGN07700501 | 7.70 | 48 | 90 | 7.70 | DGN12500501 | 12.50 | 76 | 135 | 12.50 |
| DGN07800501 | 7.80 | 48 | 90 | 7.80 | DGN12700501 | 12.70 | 78 | 137 | 12.70 |
| DGN07900501 | 7.90 | 48 | 90 | 7.90 | DGN13000501 | 13.00 | 78 | 137 | 13.00 |
| DGN08000501 | 8.00 | 48 | 90 | 8.00 | DGN13500501 | 13.50 | 84 | 144 | 13.50 |
| DGN08100501 | 8.10 | 53 | 96 | 8.10 | DGN14000501 | 14.00 | 86 | 147 | 14.00 |
| DGN08200501 | 8.20 | 53 | 96 | 8.20 | DGN14500501 | 14.50 | 89 | 151 | 14.50 |
| DGN08300501 | 8.30 | 53 | 96 | 8.30 | DGN15000501 | 15.00 | 91 | 153 | 15.00 |
| DGN08400501 | 8.40 | 53 | 96 | 8.40 | DGN15500501 | 15.50 | 94 | 157 | 15.50 |
| DGN08500501 | 8.50 | 53 | 96 | 8.50 | DGN16000501 | 16.00 | 96 | 160 | 16.00 |
| DGN08600501 | 8.60 | 55 | 98 | 8.60 | |||||
| DGN08700501 | 8.70 | 55 | 98 | 8.70 | |||||
| DGN08800501 | 8.80 | 55 | 98 | 8.80 |
