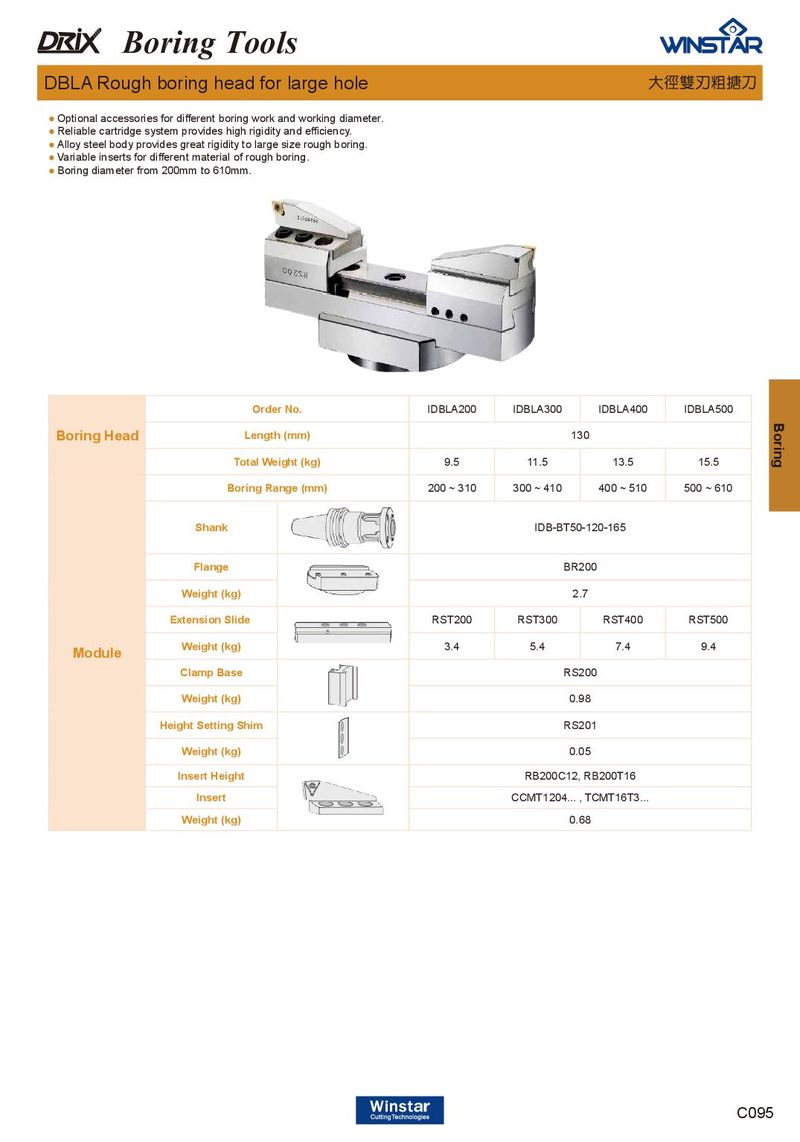

DBLA Rough boring head for large hole 大徑雙刃粗搪刀

  • Optional accessories for different boring work and working diameter.
  • Reliable cartridge system provides high rigidity and efficiency.
  • Alloy steel body provides great rigidity to large size rough boring.
  • Variable inserts for different material of rough boring.
  • Boring diameter from 200mm to 610mm.

Order No. IDBLA200 IDBLA300 IDBLA400 IDBLA500

Boring Head Length (mm) 130

Total Weight (kg) 9.5 11.5 13.5 15.5

Boring Range (mm)200 ~ 310300 ~ 410400 ~ 510500 ~ 610
ShankIDB-BT50-120-165
FlangeBR200
Weight (kg)2.7
Extension SlideRST200RST300RST400RST500
ModuleWeight (kg)3.45.47.49.4
Clamp BaseRS200
Weight (kg)0.98
Height Setting ShimRS201
Weight (kg)0.05

Insert Height RB200C12, RB200T16 Insert CCMT1204... , TCMT16T3... Weight (kg) 0.68
