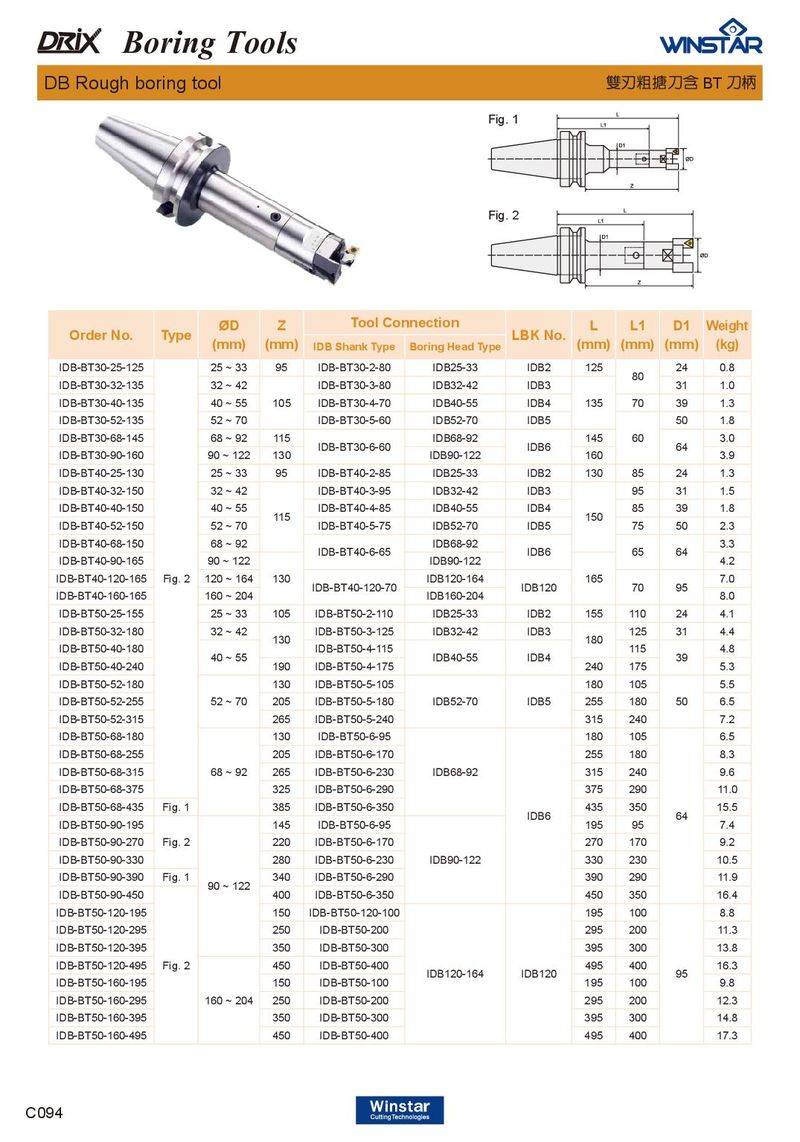

| B Rough bo | ring t | ool | Fi | g. 1 | 雙 | 刃粗 | 搪刀含 | BT刀柄 | ||
| Fi | g. 2 | |||||||||
| Order No | Tpe | ØD | Z | Tool Con | nection | LBK No | L | L1 | D1 | Weight |
| . | y | (mm) | (mm) | IDB Shank Type | Boring Head Type | . | (mm) | (mm) | (mm) | (kg) |
| IDB-BT30-25-125 | 25 ~ 33 | 95 | IDB-BT30-2-80 | IDB25-33 | IDB2 | 125 | 24 | 0.8 | ||
| IDB-BT30-32-135 | 32 ~ 42 | IDB-BT30-3-80 | IDB32-42 | IDB3 | 80 | 31 | 1.0 | |||
| IDB-BT30-40-135 | 40 ~ 55 | 105 | IDB-BT30-4-70 | IDB40-55 | IDB4 | 135 | 70 | 39 | 1.3 | |
| IDB-BT30-52-135 | 52 ~ 70 | IDB-BT30-5-60 | IDB52-70 | IDB5 | 50 | 1.8 | ||||
| IDB-BT30-68-145 | 68 ~ 92 | 115 | IDB68-92 | 145 | 60 | 3.0 | ||||
| IDB-BT30-90-160 | 90 ~ 122 | 130 | IDB-BT30-6-60 | IDB90-122 | IDB6 | 160 | 64 | 3.9 | ||
| IDB-BT40-25-130 | 25 ~ 33 | 95 | IDB-BT40-2-85 | IDB25-33 | IDB2 | 130 | 85 | 24 | 1.3 | |
| IDB-BT40-32-150 | 32 ~ 42 | IDB-BT40-3-95 | IDB32-42 | IDB3 | 95 | 31 | 1.5 | |||
| IDB-BT40-40-150 | 40 ~ 55 | 115 | IDB-BT40-4-85 | IDB40-55 | IDB4 | 150 | 85 | 39 | 1.8 | |
| IDB-BT40-52-150 | 52 ~ 70 | IDB-BT40-5-75 | IDB52-70 | IDB5 | 75 | 50 | 2.3 | |||
| IDB-BT40-68-150 | 68 ~ 92 | IDB68-92 | 3.3 | |||||||
| IDB-BT40-90-165 | 90 ~ 122 | IDB-BT40-6-65 | IDB90-122 | IDB6 | 65 | 64 | 4.2 | |||
| IDB-BT40-120-165 | Fig. 2 | 120 ~ 164 | 130 | IDB-BT40-120-70 | IDB120-164 | IDB120 | 165 | 70 | 95 | 7.0 |
| IDB-BT40-160-165 | 160 ~ 204 | IDB160-204 | 8.0 | |||||||
| IDB-BT50-25-155 | 25 ~ 33 | 105 | IDB-BT50-2-110 | IDB25-33 | IDB2 | 155 | 110 | 24 | 4.1 | |
| IDB-BT50-32-180 | 32 ~ 42 | IDB-BT50-3-125 | IDB32-42 | IDB3 | 125 | 31 | 4.4 | |||
| IDB-BT50-40-180 | 130 | IDB-BT50-4-115 | 180 | 115 | 4.8 | |||||
| IDB-BT50-40-240 | 40 ~ 55 | 190 | IDB-BT50-4-175 | IDB40-55 | IDB4 | 240 | 175 | 39 | 5.3 | |
| IDB-BT50-52-180 | 130 | IDB-BT50-5-105 | 180 | 105 | 5.5 | |||||
| IDB-BT50-52-255 | 52 ~ 70 | 205 | IDB-BT50-5-180 | IDB52-70 | IDB5 | 255 | 180 | 50 | 6.5 | |
| IDB-BT50-52-315 | 265 | IDB-BT50-5-240 | 315 | 240 | 7.2 | |||||
| IDB-BT50-68-180 | 130 | IDB-BT50-6-95 | 180 | 105 | 6.5 | |||||
| IDB-BT50-68-255 | 205 | IDB-BT50-6-170 | 255 | 180 | 8.3 | |||||
| IDB-BT50-68-315 | 68 ~ 92 | 265 | IDB-BT50-6-230 | IDB68-92 | 315 | 240 | 9.6 | |||
| IDB-BT50-68-375 | 325 | IDB-BT50-6-290 | 375 | 290 | 11.0 | |||||
| IDB-BT50-68-435 | Fig. 1 | 385 | IDB-BT50-6-350 | IDB | 435 | 350 | 4 | 15.5 | ||
| IDB-BT50-90-195 | 145 | IDB-BT50-6-95 | 6 | 195 | 95 | 6 | 7.4 | |||
| IDB-BT50-90-270 | Fig. 2 | 220 | IDB-BT50-6-170 | 270 | 170 | 9.2 | ||||
| IDB-BT50-90-330 | 280 | IDB-BT50-6-230 | IDB90-122 | 330 | 230 | 10.5 | ||||
| IDB-BT50-90-390 | Fig. 1 | 340 | IDB-BT50-6-290 | 390 | 290 | 11.9 | ||||
| IDB-BT50-90-450 | 90 ~ 122 | 400 | IDB-BT50-6-350 | 450 | 350 | 16.4 | ||||
| IDB-BT50-120-195 | 150 | IDB-BT50-120-100 | 195 | 100 | 8.8 | |||||
| IDB-BT50-120-295 | 250 | IDB-BT50-200 | 295 | 200 | 11.3 | |||||
| IDB-BT50-120-395 | 350 | IDB-BT50-300 | 395 | 300 | 13.8 | |||||
| IDB-BT50-120-495 | Fig. 2 | 450 | IDB-BT50-400 | 495 | 400 | 16.3 | ||||
| IDB-BT50-160-195 | 150 | IDB-BT50-100 | IDB120-164 | IDB120 | 195 | 100 | 95 | 9.8 | ||
| IDB-BT50-160-295 | 160 ~ 204 | 250 | IDB-BT50-200 | 295 | 200 | 12.3 | ||||
| IDB-BT50-160-395 | 350 | IDB-BT50-300 | 395 | 300 | 14.8 | |||||
| IDB-BT50-160-495 | 450 | IDB-BT50-400 | 495 | 400 | 17.3 |
