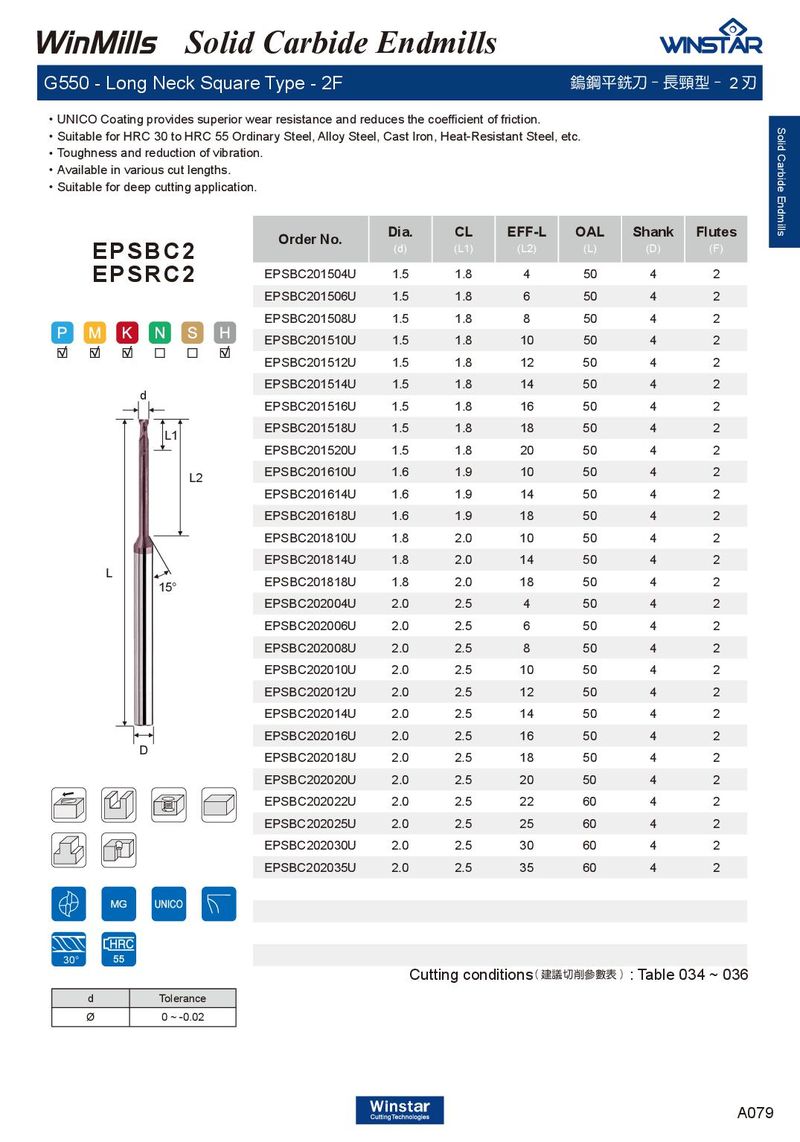

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC201504U | 1.5 | 1.8 | 4 | 50 | 4 | 2 |
| EPSBC201506U | 1.5 | 1.8 | 6 | 50 | 4 | 2 |
| EPSBC201508U | 1.5 | 1.8 | 8 | 50 | 4 | 2 |
| EPSBC201510U | 1.5 | 1.8 | 10 | 50 | 4 | 2 |
| EPSBC201512U | 1.5 | 1.8 | 12 | 50 | 4 | 2 |
| EPSBC201514U | 1.5 | 1.8 | 14 | 50 | 4 | 2 |
| EPSBC201516U | 1.5 | 1.8 | 16 | 50 | 4 | 2 |
| EPSBC201518U | 1.5 | 1.8 | 18 | 50 | 4 | 2 |
| EPSBC201520U | 1.5 | 1.8 | 20 | 50 | 4 | 2 |
| EPSBC201610U | 1.6 | 1.9 | 10 | 50 | 4 | 2 |
| EPSBC201614U | 1.6 | 1.9 | 14 | 50 | 4 | 2 |
| EPSBC201618U | 1.6 | 1.9 | 18 | 50 | 4 | 2 |
| EPSBC201810U | 1.8 | 2.0 | 10 | 50 | 4 | 2 |
| EPSBC201814U | 1.8 | 2.0 | 14 | 50 | 4 | 2 |
| EPSBC201818U | 1.8 | 2.0 | 18 | 50 | 4 | 2 |
| EPSBC202004U | 2.0 | 2.5 | 4 | 50 | 4 | 2 |
| EPSBC202006U | 2.0 | 2.5 | 6 | 50 | 4 | 2 |
| EPSBC202008U | 2.0 | 2.5 | 8 | 50 | 4 | 2 |
| EPSBC202010U | 2.0 | 2.5 | 10 | 50 | 4 | 2 |
| EPSBC202012U | 2.0 | 2.5 | 12 | 50 | 4 | 2 |
| EPSBC202014U | 2.0 | 2.5 | 14 | 50 | 4 | 2 |
| EPSBC202016U | 2.0 | 2.5 | 16 | 50 | 4 | 2 |
| EPSBC202018U | 2.0 | 2.5 | 18 | 50 | 4 | 2 |
| EPSBC202020U | 2.0 | 2.5 | 20 | 50 | 4 | 2 |
| EPSBC202022U | 2.0 | 2.5 | 22 | 60 | 4 | 2 |
| EPSBC202025U | 2.0 | 2.5 | 25 | 60 | 4 | 2 |
| EPSBC202030U | 2.0 | 2.5 | 30 | 60 | 4 | 2 |
| EPSBC202035U | 2.0 | 2.5 | 35 | 60 | 4 | 2 |
EPSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 034 ~ 036
( 建議切削參數表 )
