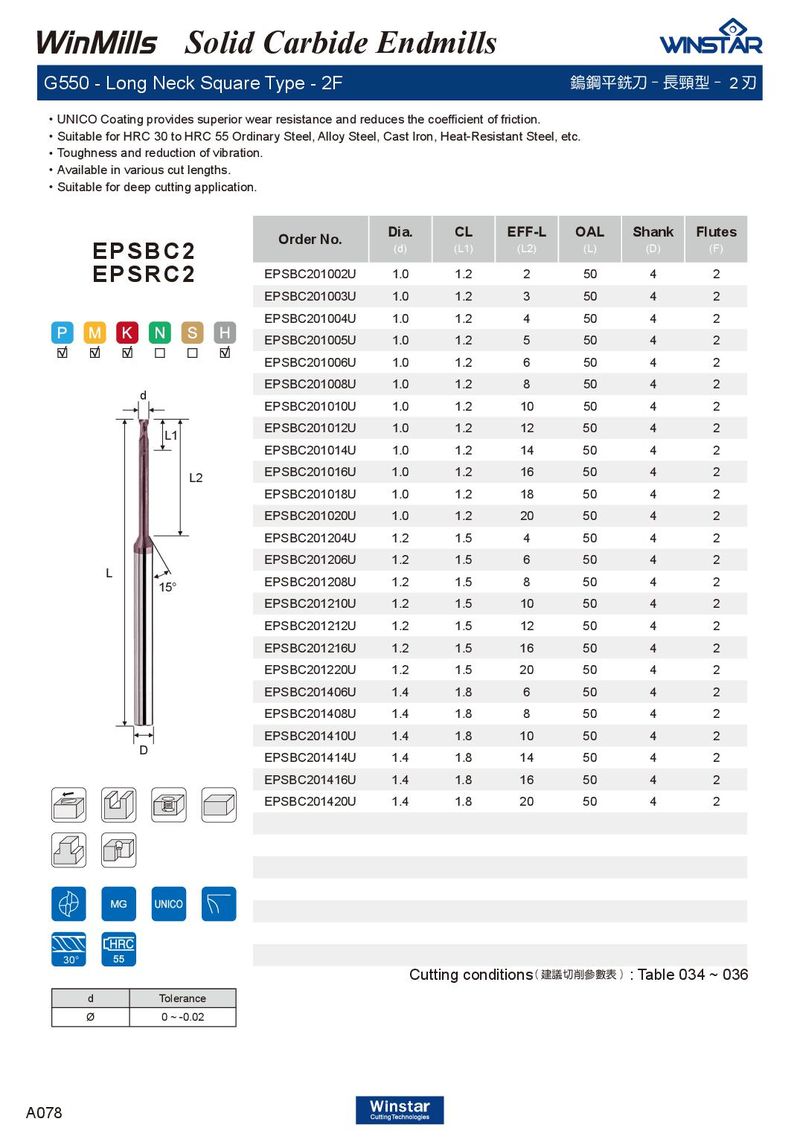

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC201002U | 1.0 | 1.2 | 2 | 50 | 4 | 2 |
| EPSBC201003U | 1.0 | 1.2 | 3 | 50 | 4 | 2 |
| EPSBC201004U | 1.0 | 1.2 | 4 | 50 | 4 | 2 |
| EPSBC201005U | 1.0 | 1.2 | 5 | 50 | 4 | 2 |
| EPSBC201006U | 1.0 | 1.2 | 6 | 50 | 4 | 2 |
| EPSBC201008U | 1.0 | 1.2 | 8 | 50 | 4 | 2 |
| EPSBC201010U | 1.0 | 1.2 | 10 | 50 | 4 | 2 |
| EPSBC201012U | 1.0 | 1.2 | 12 | 50 | 4 | 2 |
| EPSBC201014U | 1.0 | 1.2 | 14 | 50 | 4 | 2 |
| EPSBC201016U | 1.0 | 1.2 | 16 | 50 | 4 | 2 |
| EPSBC201018U | 1.0 | 1.2 | 18 | 50 | 4 | 2 |
| EPSBC201020U | 1.0 | 1.2 | 20 | 50 | 4 | 2 |
| EPSBC201204U | 1.2 | 1.5 | 4 | 50 | 4 | 2 |
| EPSBC201206U | 1.2 | 1.5 | 6 | 50 | 4 | 2 |
| EPSBC201208U | 1.2 | 1.5 | 8 | 50 | 4 | 2 |
| EPSBC201210U | 1.2 | 1.5 | 10 | 50 | 4 | 2 |
| EPSBC201212U | 1.2 | 1.5 | 12 | 50 | 4 | 2 |
| EPSBC201216U | 1.2 | 1.5 | 16 | 50 | 4 | 2 |
| EPSBC201220U | 1.2 | 1.5 | 20 | 50 | 4 | 2 |
| EPSBC201406U | 1.4 | 1.8 | 6 | 50 | 4 | 2 |
| EPSBC201408U | 1.4 | 1.8 | 8 | 50 | 4 | 2 |
| EPSBC201410U | 1.4 | 1.8 | 10 | 50 | 4 | 2 |
| EPSBC201414U | 1.4 | 1.8 | 14 | 50 | 4 | 2 |
| EPSBC201416U | 1.4 | 1.8 | 16 | 50 | 4 | 2 |
| EPSBC201420U | 1.4 | 1.8 | 20 | 50 | 4 | 2 |
EPSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 034 ~ 036
( 建議切削參數表 )
