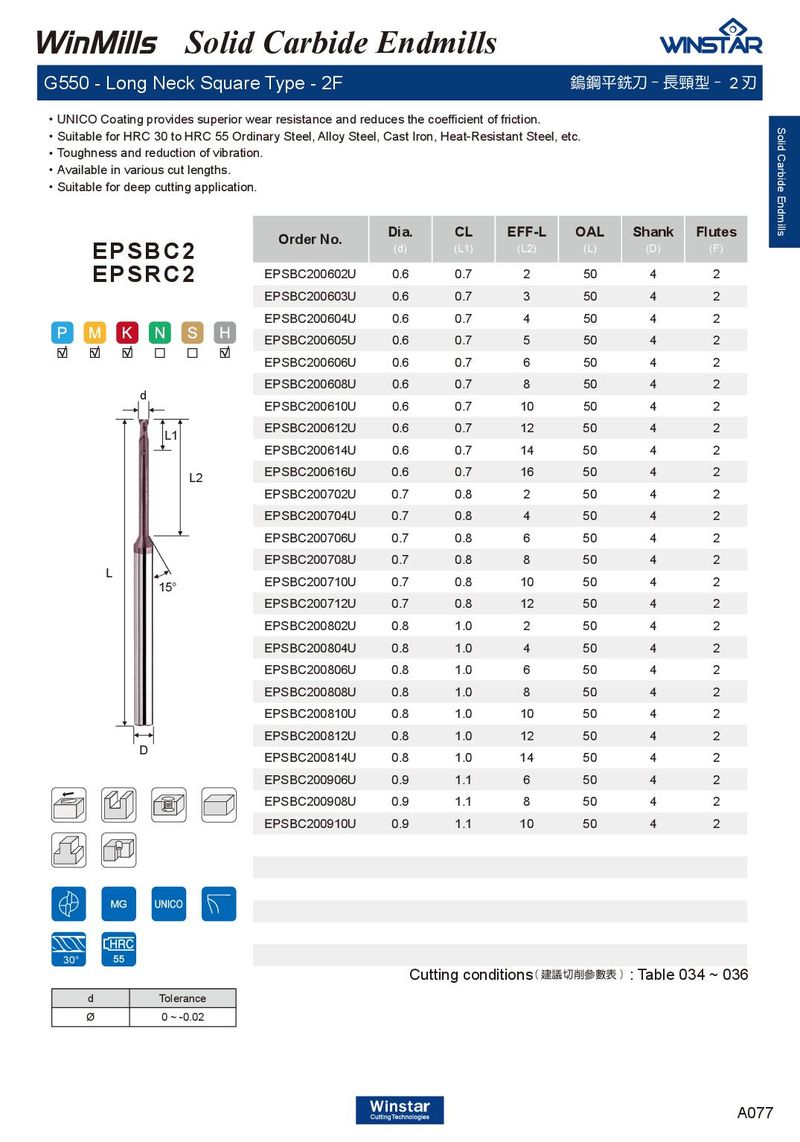

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC200602U | 0.6 | 0.7 | 2 | 50 | 4 | 2 |
| EPSBC200603U | 0.6 | 0.7 | 3 | 50 | 4 | 2 |
| EPSBC200604U | 0.6 | 0.7 | 4 | 50 | 4 | 2 |
| EPSBC200605U | 0.6 | 0.7 | 5 | 50 | 4 | 2 |
| EPSBC200606U | 0.6 | 0.7 | 6 | 50 | 4 | 2 |
| EPSBC200608U | 0.6 | 0.7 | 8 | 50 | 4 | 2 |
| EPSBC200610U | 0.6 | 0.7 | 10 | 50 | 4 | 2 |
| EPSBC200612U | 0.6 | 0.7 | 12 | 50 | 4 | 2 |
| EPSBC200614U | 0.6 | 0.7 | 14 | 50 | 4 | 2 |
| EPSBC200616U | 0.6 | 0.7 | 16 | 50 | 4 | 2 |
| EPSBC200702U | 0.7 | 0.8 | 2 | 50 | 4 | 2 |
| EPSBC200704U | 0.7 | 0.8 | 4 | 50 | 4 | 2 |
| EPSBC200706U | 0.7 | 0.8 | 6 | 50 | 4 | 2 |
| EPSBC200708U | 0.7 | 0.8 | 8 | 50 | 4 | 2 |
| EPSBC200710U | 0.7 | 0.8 | 10 | 50 | 4 | 2 |
| EPSBC200712U | 0.7 | 0.8 | 12 | 50 | 4 | 2 |
| EPSBC200802U | 0.8 | 1.0 | 2 | 50 | 4 | 2 |
| EPSBC200804U | 0.8 | 1.0 | 4 | 50 | 4 | 2 |
| EPSBC200806U | 0.8 | 1.0 | 6 | 50 | 4 | 2 |
| EPSBC200808U | 0.8 | 1.0 | 8 | 50 | 4 | 2 |
| EPSBC200810U | 0.8 | 1.0 | 10 | 50 | 4 | 2 |
| EPSBC200812U | 0.8 | 1.0 | 12 | 50 | 4 | 2 |
| EPSBC200814U | 0.8 | 1.0 | 14 | 50 | 4 | 2 |
| EPSBC200906U | 0.9 | 1.1 | 6 | 50 | 4 | 2 |
| EPSBC200908U | 0.9 | 1.1 | 8 | 50 | 4 | 2 |
| EPSBC200910U | 0.9 | 1.1 | 10 | 50 | 4 | 2 |
EPSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 034 ~ 036
( 建議切削參數表 )
