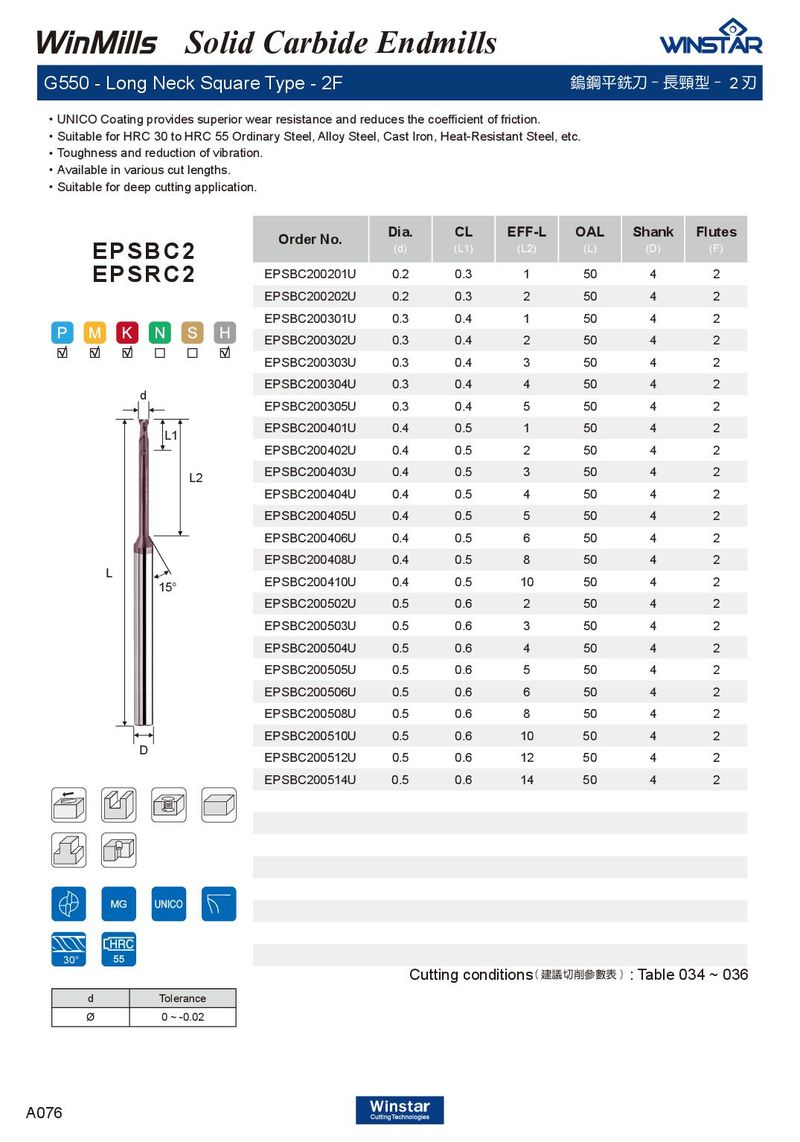

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC200201U | 0.2 | 0.3 | 1 | 50 | 4 | 2 |
| EPSBC200202U | 0.2 | 0.3 | 2 | 50 | 4 | 2 |
| EPSBC200301U | 0.3 | 0.4 | 1 | 50 | 4 | 2 |
| EPSBC200302U | 0.3 | 0.4 | 2 | 50 | 4 | 2 |
| EPSBC200303U | 0.3 | 0.4 | 3 | 50 | 4 | 2 |
| EPSBC200304U | 0.3 | 0.4 | 4 | 50 | 4 | 2 |
| EPSBC200305U | 0.3 | 0.4 | 5 | 50 | 4 | 2 |
| EPSBC200401U | 0.4 | 0.5 | 1 | 50 | 4 | 2 |
| EPSBC200402U | 0.4 | 0.5 | 2 | 50 | 4 | 2 |
| EPSBC200403U | 0.4 | 0.5 | 3 | 50 | 4 | 2 |
| EPSBC200404U | 0.4 | 0.5 | 4 | 50 | 4 | 2 |
| EPSBC200405U | 0.4 | 0.5 | 5 | 50 | 4 | 2 |
| EPSBC200406U | 0.4 | 0.5 | 6 | 50 | 4 | 2 |
| EPSBC200408U | 0.4 | 0.5 | 8 | 50 | 4 | 2 |
| EPSBC200410U | 0.4 | 0.5 | 10 | 50 | 4 | 2 |
| EPSBC200502U | 0.5 | 0.6 | 2 | 50 | 4 | 2 |
| EPSBC200503U | 0.5 | 0.6 | 3 | 50 | 4 | 2 |
| EPSBC200504U | 0.5 | 0.6 | 4 | 50 | 4 | 2 |
| EPSBC200505U | 0.5 | 0.6 | 5 | 50 | 4 | 2 |
| EPSBC200506U | 0.5 | 0.6 | 6 | 50 | 4 | 2 |
| EPSBC200508U | 0.5 | 0.6 | 8 | 50 | 4 | 2 |
| EPSBC200510U | 0.5 | 0.6 | 10 | 50 | 4 | 2 |
| EPSBC200512U | 0.5 | 0.6 | 12 | 50 | 4 | 2 |
| EPSBC200514U | 0.5 | 0.6 | 14 | 50 | 4 | 2 |
EPSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 034 ~ 036
( 建議切削參數表 )
