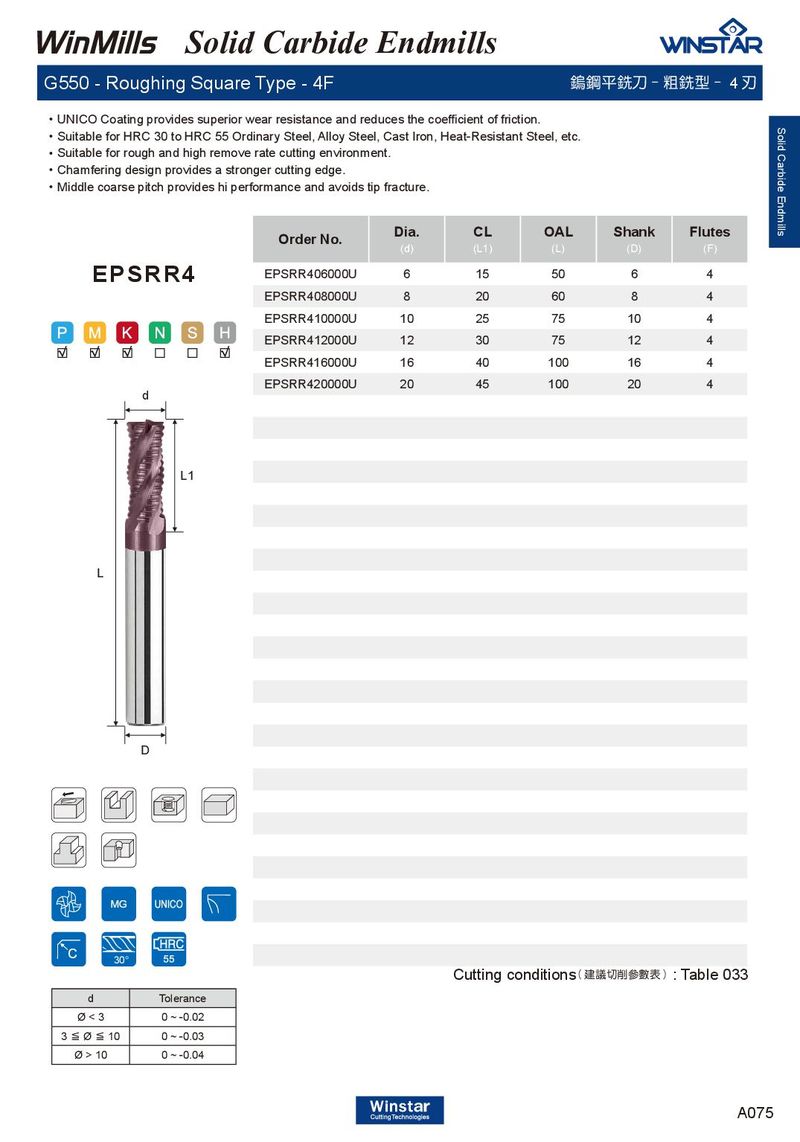

G550 - Roughing Square Type - 4F 鎢鋼平銑刀 - 粗銑型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Suitable for rough and high remove rate cutting environment. ．Chamfering design provides a stronger cutting edge. ．Middle coarse pitch provides hi performance and avoids tip fracture.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSRR406000U | 6 | 15 | 50 | 6 | 4 |
| EPSRR408000U | 8 | 20 | 60 | 8 | 4 |
| EPSRR410000U | 10 | 25 | 75 | 10 | 4 |
| EPSRR412000U | 12 | 30 | 75 | 12 | 4 |
| EPSRR416000U | 16 | 40 | 100 | 16 | 4 |
| EPSRR420000U | 20 | 45 | 100 | 20 | 4 |
EPSRR4
d
L1
L
D
30°
Cutting conditions : Table 033
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
