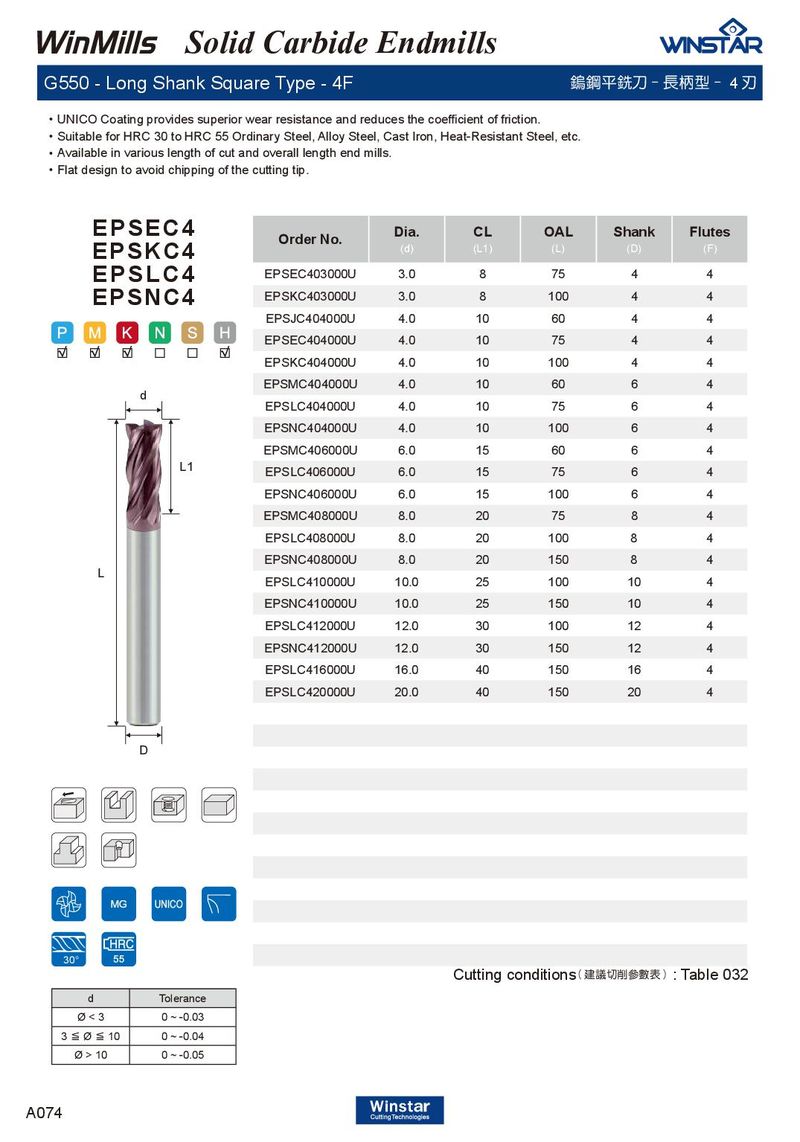

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Available in various length of cut and overall length end mills. ．Flat design to avoid chipping of the cutting tip.
EPSEC4
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSEC403000U | 3.0 | 8 | 75 | 4 | 4 |
| EPSKC403000U | 3.0 | 8 | 100 | 4 | 4 |
| EPSJC404000U | 4.0 | 10 | 60 | 4 | 4 |
| EPSEC404000U | 4.0 | 10 | 75 | 4 | 4 |
| EPSKC404000U | 4.0 | 10 | 100 | 4 | 4 |
| EPSMC404000U | 4.0 | 10 | 60 | 6 | 4 |
| EPSLC404000U | 4.0 | 10 | 75 | 6 | 4 |
| EPSNC404000U | 4.0 | 10 | 100 | 6 | 4 |
| EPSMC406000U | 6.0 | 15 | 60 | 6 | 4 |
| EPSLC406000U | 6.0 | 15 | 75 | 6 | 4 |
| EPSNC406000U | 6.0 | 15 | 100 | 6 | 4 |
| EPSMC408000U | 8.0 | 20 | 75 | 8 | 4 |
| EPSLC408000U | 8.0 | 20 | 100 | 8 | 4 |
| EPSNC408000U | 8.0 | 20 | 150 | 8 | 4 |
| EPSLC410000U | 10.0 | 25 | 100 | 10 | 4 |
| EPSNC410000U | 10.0 | 25 | 150 | 10 | 4 |
| EPSLC412000U | 12.0 | 30 | 100 | 12 | 4 |
| EPSNC412000U | 12.0 | 30 | 150 | 12 | 4 |
| EPSLC416000U | 16.0 | 40 | 150 | 16 | 4 |
| EPSLC420000U | 20.0 | 40 | 150 | 20 | 4 |
EPSLC4
EPSNC4
d
L
D
30°
Cutting conditions : Table 032
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
