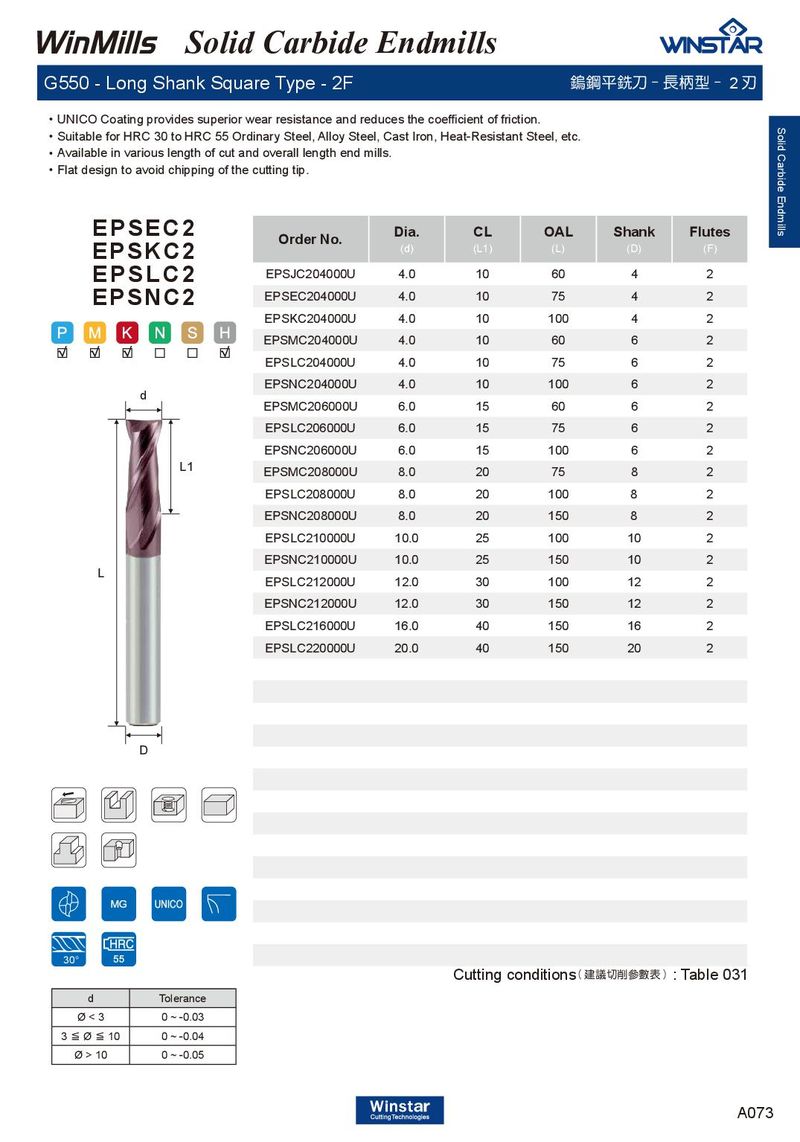

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Available in various length of cut and overall length end mills. ．Flat design to avoid chipping of the cutting tip.
EPSEC2
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSJC204000U | 4.0 | 10 | 60 | 4 | 2 |
| EPSEC204000U | 4.0 | 10 | 75 | 4 | 2 |
| EPSKC204000U | 4.0 | 10 | 100 | 4 | 2 |
| EPSMC204000U | 4.0 | 10 | 60 | 6 | 2 |
| EPSLC204000U | 4.0 | 10 | 75 | 6 | 2 |
| EPSNC204000U | 4.0 | 10 | 100 | 6 | 2 |
| EPSMC206000U | 6.0 | 15 | 60 | 6 | 2 |
| EPSLC206000U | 6.0 | 15 | 75 | 6 | 2 |
| EPSNC206000U | 6.0 | 15 | 100 | 6 | 2 |
| EPSMC208000U | 8.0 | 20 | 75 | 8 | 2 |
| EPSLC208000U | 8.0 | 20 | 100 | 8 | 2 |
| EPSNC208000U | 8.0 | 20 | 150 | 8 | 2 |
| EPSLC210000U | 10.0 | 25 | 100 | 10 | 2 |
| EPSNC210000U | 10.0 | 25 | 150 | 10 | 2 |
| EPSLC212000U | 12.0 | 30 | 100 | 12 | 2 |
| EPSNC212000U | 12.0 | 30 | 150 | 12 | 2 |
| EPSLC216000U | 16.0 | 40 | 150 | 16 | 2 |
| EPSLC220000U | 20.0 | 40 | 150 | 20 | 2 |
EPSLC2
EPSNC2
d
L
D
30°
Cutting conditions : Table 031
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
