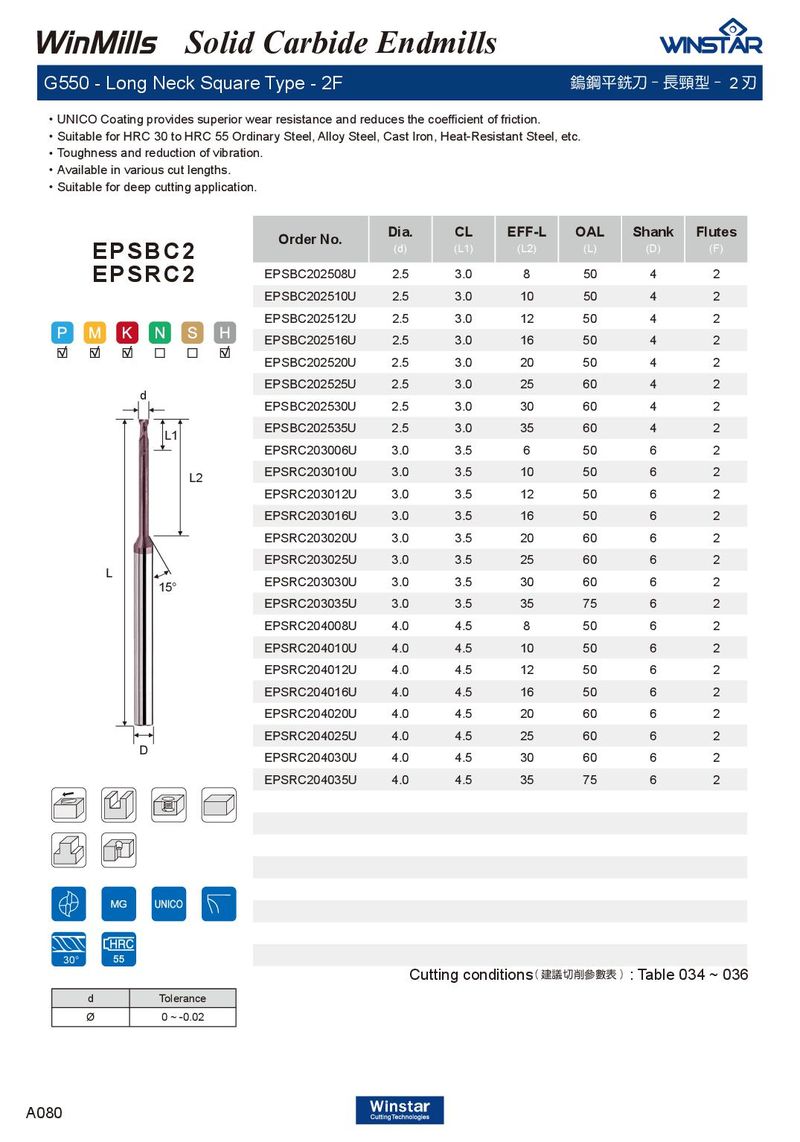

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Toughness and reduction of vibration. ．Available in various cut lengths. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EPSBC202508U | 2.5 | 3.0 | 8 | 50 | 4 | 2 |
| EPSBC202510U | 2.5 | 3.0 | 10 | 50 | 4 | 2 |
| EPSBC202512U | 2.5 | 3.0 | 12 | 50 | 4 | 2 |
| EPSBC202516U | 2.5 | 3.0 | 16 | 50 | 4 | 2 |
| EPSBC202520U | 2.5 | 3.0 | 20 | 50 | 4 | 2 |
| EPSBC202525U | 2.5 | 3.0 | 25 | 60 | 4 | 2 |
| EPSBC202530U | 2.5 | 3.0 | 30 | 60 | 4 | 2 |
| EPSBC202535U | 2.5 | 3.0 | 35 | 60 | 4 | 2 |
| EPSRC203006U | 3.0 | 3.5 | 6 | 50 | 6 | 2 |
| EPSRC203010U | 3.0 | 3.5 | 10 | 50 | 6 | 2 |
| EPSRC203012U | 3.0 | 3.5 | 12 | 50 | 6 | 2 |
| EPSRC203016U | 3.0 | 3.5 | 16 | 50 | 6 | 2 |
| EPSRC203020U | 3.0 | 3.5 | 20 | 60 | 6 | 2 |
| EPSRC203025U | 3.0 | 3.5 | 25 | 60 | 6 | 2 |
| EPSRC203030U | 3.0 | 3.5 | 30 | 60 | 6 | 2 |
| EPSRC203035U | 3.0 | 3.5 | 35 | 75 | 6 | 2 |
| EPSRC204008U | 4.0 | 4.5 | 8 | 50 | 6 | 2 |
| EPSRC204010U | 4.0 | 4.5 | 10 | 50 | 6 | 2 |
| EPSRC204012U | 4.0 | 4.5 | 12 | 50 | 6 | 2 |
| EPSRC204016U | 4.0 | 4.5 | 16 | 50 | 6 | 2 |
| EPSRC204020U | 4.0 | 4.5 | 20 | 60 | 6 | 2 |
| EPSRC204025U | 4.0 | 4.5 | 25 | 60 | 6 | 2 |
| EPSRC204030U | 4.0 | 4.5 | 30 | 60 | 6 | 2 |
| EPSRC204035U | 4.0 | 4.5 | 35 | 75 | 6 | 2 |
EPSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
Cutting conditions : Table 034 ~ 036
( 建議切削參數表 )
