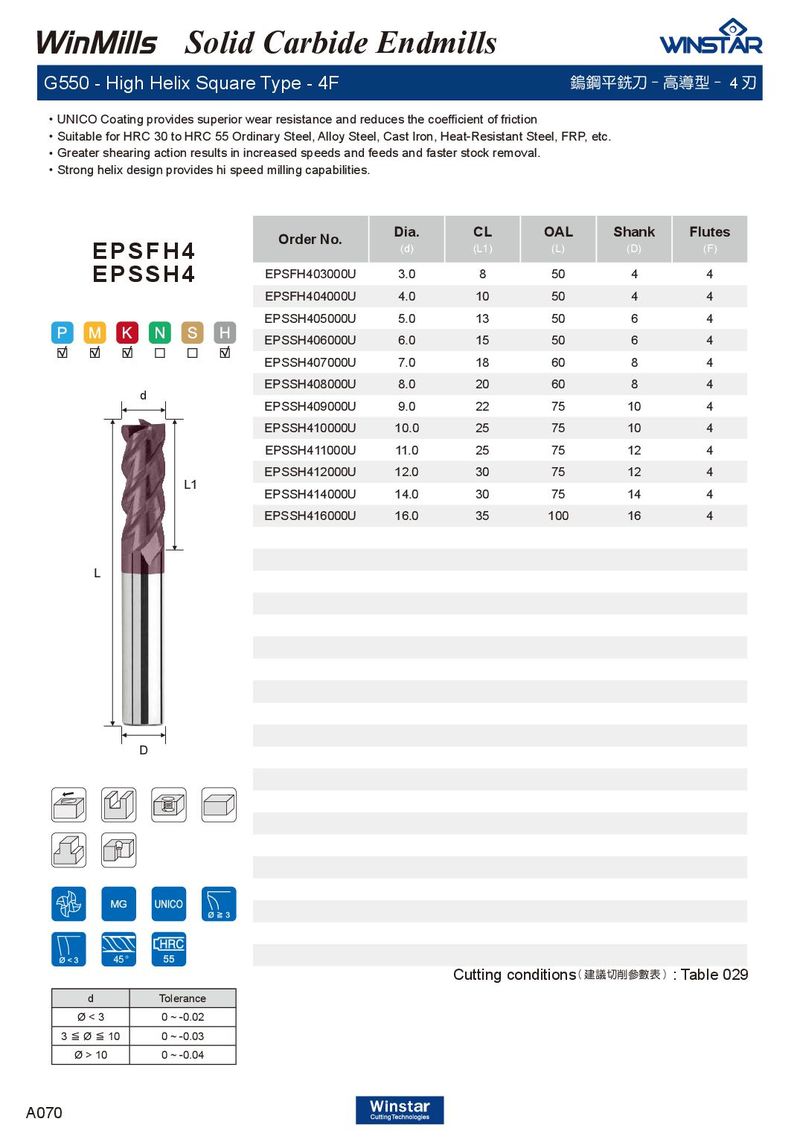

G550 - High Helix Square Type - 4F 鎢鋼平銑刀 - 高導型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, FRP, etc. ．Greater shearing action results in increased speeds and feeds and faster stock removal. ．Strong helix design provides hi speed milling capabilities.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSFH403000U | 3.0 | 8 | 50 | 4 | 4 |
| EPSFH404000U | 4.0 | 10 | 50 | 4 | 4 |
| EPSSH405000U | 5.0 | 13 | 50 | 6 | 4 |
| EPSSH406000U | 6.0 | 15 | 50 | 6 | 4 |
| EPSSH407000U | 7.0 | 18 | 60 | 8 | 4 |
| EPSSH408000U | 8.0 | 20 | 60 | 8 | 4 |
| EPSSH409000U | 9.0 | 22 | 75 | 10 | 4 |
| EPSSH410000U | 10.0 | 25 | 75 | 10 | 4 |
| EPSSH411000U | 11.0 | 25 | 75 | 12 | 4 |
| EPSSH412000U | 12.0 | 30 | 75 | 12 | 4 |
| EPSSH414000U | 14.0 | 30 | 75 | 14 | 4 |
| EPSSH416000U | 16.0 | 35 | 100 | 16 | 4 |
EPSSH4
d
L1
L
D
45°
Cutting conditions : Table 029
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
