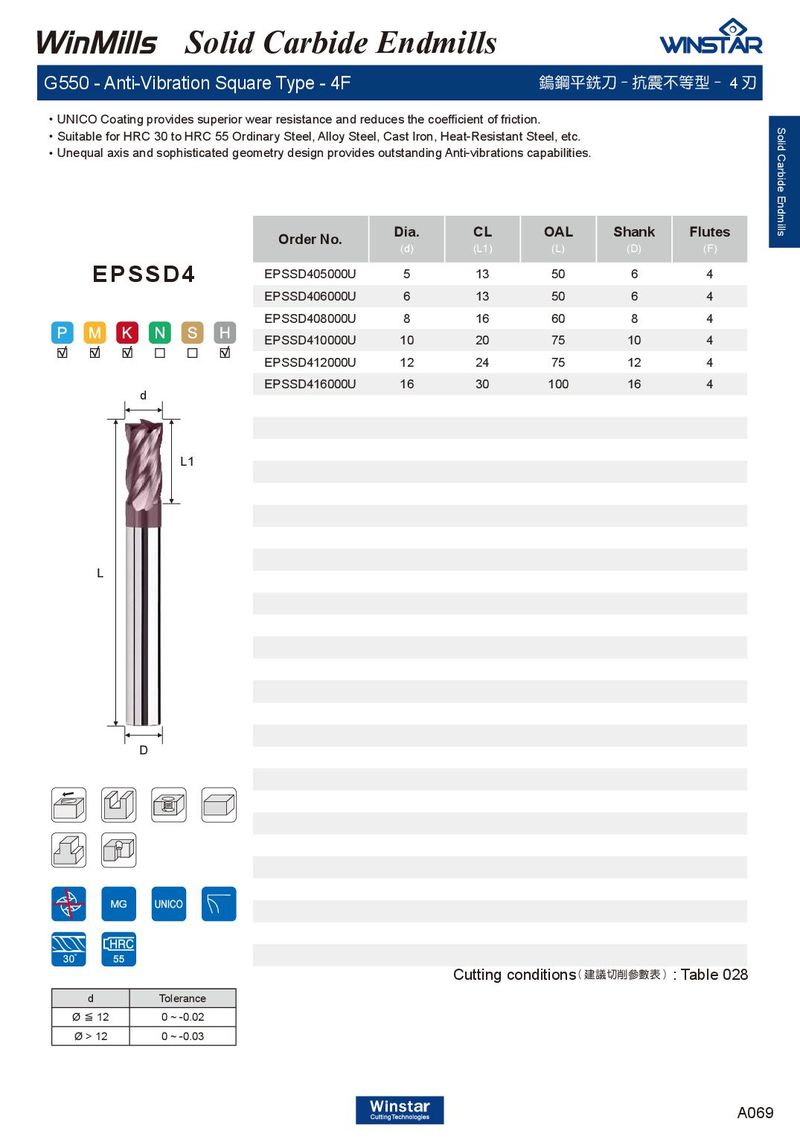

G550 - Anti-Vibration Square Type - 4F 鎢鋼平銑刀 - 抗震不等型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSSD405000U | 5 | 13 | 50 | 6 | 4 |
| EPSSD406000U | 6 | 13 | 50 | 6 | 4 |
| EPSSD408000U | 8 | 16 | 60 | 8 | 4 |
| EPSSD410000U | 10 | 20 | 75 | 10 | 4 |
| EPSSD412000U | 12 | 24 | 75 | 12 | 4 |
| EPSSD416000U | 16 | 30 | 100 | 16 | 4 |
EPSSD4
d
L1
L
D
Cutting conditions : Table 028
( 建議切削參數表 )
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
