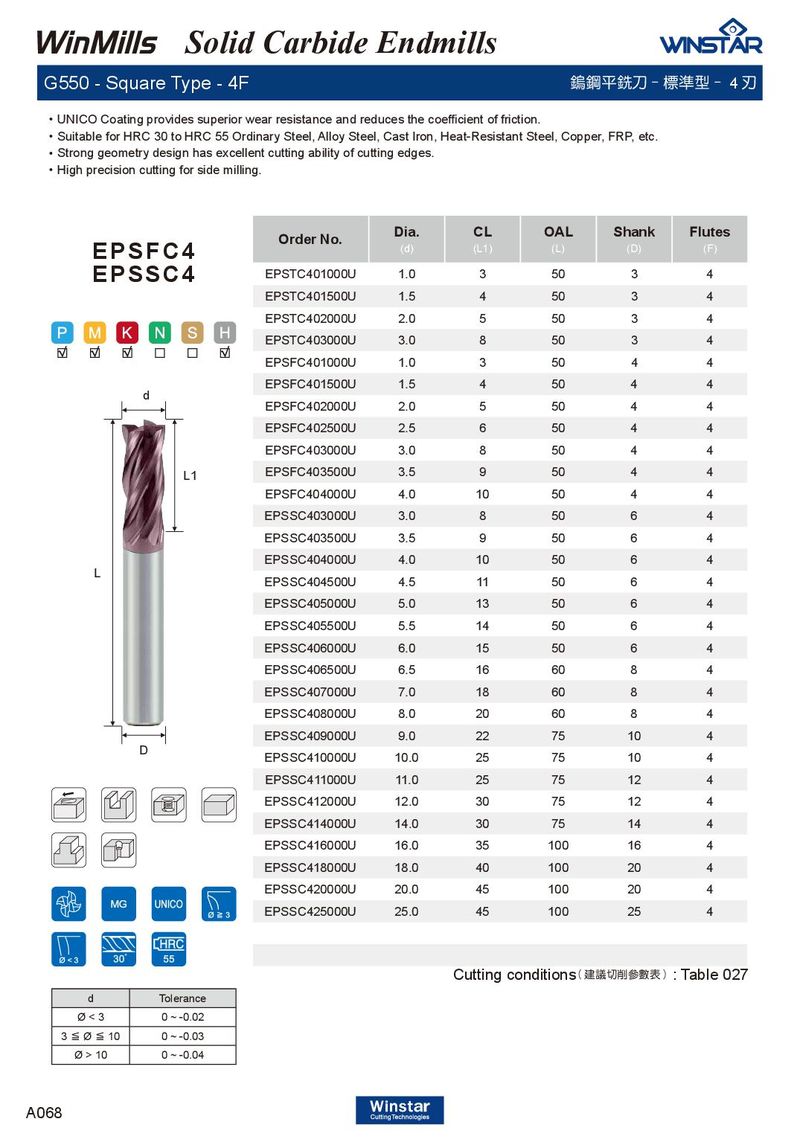

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ．Strong geometry design has excellent cutting ability of cutting edges. ．High precision cutting for side milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSTC401000U | 1.0 | 3 | 50 | 3 | 4 |
| EPSTC401500U | 1.5 | 4 | 50 | 3 | 4 |
| EPSTC402000U | 2.0 | 5 | 50 | 3 | 4 |
| EPSTC403000U | 3.0 | 8 | 50 | 3 | 4 |
| EPSFC401000U | 1.0 | 3 | 50 | 4 | 4 |
| EPSFC401500U | 1.5 | 4 | 50 | 4 | 4 |
| EPSFC402000U | 2.0 | 5 | 50 | 4 | 4 |
| EPSFC402500U | 2.5 | 6 | 50 | 4 | 4 |
| EPSFC403000U | 3.0 | 8 | 50 | 4 | 4 |
| EPSFC403500U | 3.5 | 9 | 50 | 4 | 4 |
| EPSFC404000U | 4.0 | 10 | 50 | 4 | 4 |
| EPSSC403000U | 3.0 | 8 | 50 | 6 | 4 |
| EPSSC403500U | 3.5 | 9 | 50 | 6 | 4 |
| EPSSC404000U | 4.0 | 10 | 50 | 6 | 4 |
| EPSSC404500U | 4.5 | 11 | 50 | 6 | 4 |
| EPSSC405000U | 5.0 | 13 | 50 | 6 | 4 |
| EPSSC405500U | 5.5 | 14 | 50 | 6 | 4 |
| EPSSC406000U | 6.0 | 15 | 50 | 6 | 4 |
| EPSSC406500U | 6.5 | 16 | 60 | 8 | 4 |
| EPSSC407000U | 7.0 | 18 | 60 | 8 | 4 |
| EPSSC408000U | 8.0 | 20 | 60 | 8 | 4 |
| EPSSC409000U | 9.0 | 22 | 75 | 10 | 4 |
| EPSSC410000U | 10.0 | 25 | 75 | 10 | 4 |
| EPSSC411000U | 11.0 | 25 | 75 | 12 | 4 |
| EPSSC412000U | 12.0 | 30 | 75 | 12 | 4 |
| EPSSC414000U | 14.0 | 30 | 75 | 14 | 4 |
| EPSSC416000U | 16.0 | 35 | 100 | 16 | 4 |
| EPSSC418000U | 18.0 | 40 | 100 | 20 | 4 |
| EPSSC420000U | 20.0 | 45 | 100 | 20 | 4 |
| EPSSC425000U | 25.0 | 45 | 100 | 25 | 4 |
EPSSC4
d
L
D
Cutting conditions : Table 027
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
