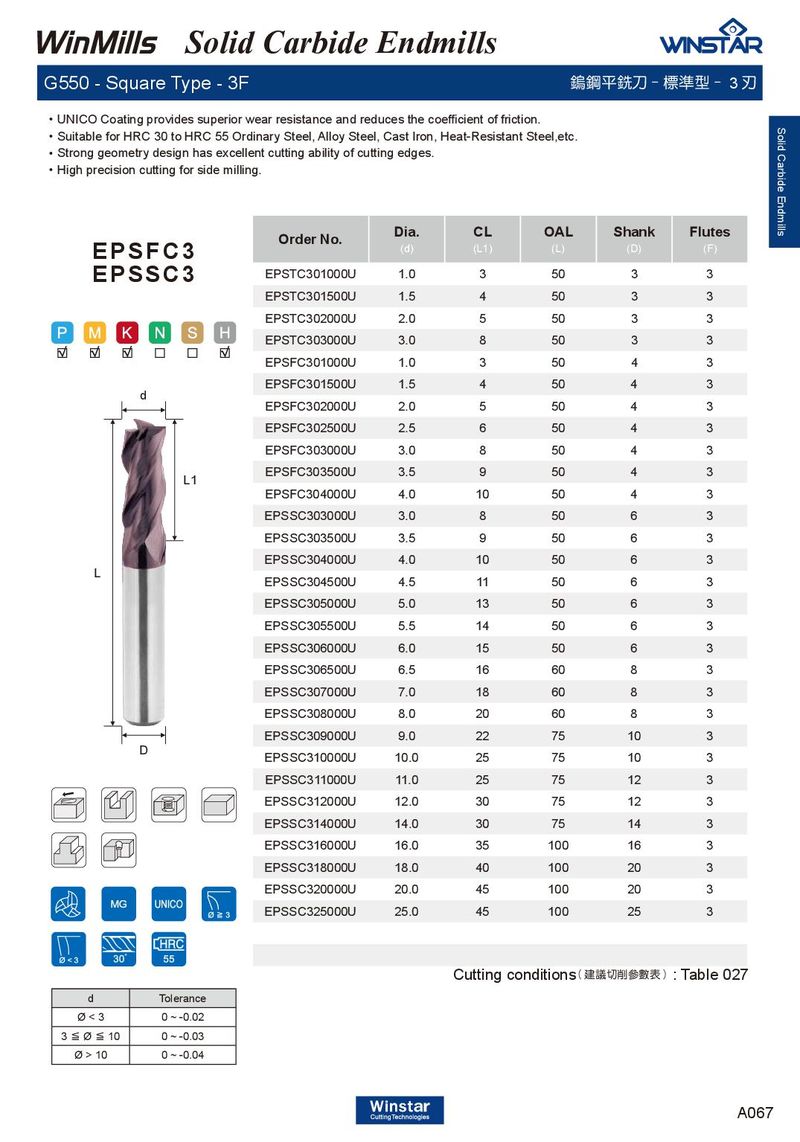

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc. ．Strong geometry design has excellent cutting ability of cutting edges. ．High precision cutting for side milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSTC301000U | 1.0 | 3 | 50 | 3 | 3 |
| EPSTC301500U | 1.5 | 4 | 50 | 3 | 3 |
| EPSTC302000U | 2.0 | 5 | 50 | 3 | 3 |
| EPSTC303000U | 3.0 | 8 | 50 | 3 | 3 |
| EPSFC301000U | 1.0 | 3 | 50 | 4 | 3 |
| EPSFC301500U | 1.5 | 4 | 50 | 4 | 3 |
| EPSFC302000U | 2.0 | 5 | 50 | 4 | 3 |
| EPSFC302500U | 2.5 | 6 | 50 | 4 | 3 |
| EPSFC303000U | 3.0 | 8 | 50 | 4 | 3 |
| EPSFC303500U | 3.5 | 9 | 50 | 4 | 3 |
| EPSFC304000U | 4.0 | 10 | 50 | 4 | 3 |
| EPSSC303000U | 3.0 | 8 | 50 | 6 | 3 |
| EPSSC303500U | 3.5 | 9 | 50 | 6 | 3 |
| EPSSC304000U | 4.0 | 10 | 50 | 6 | 3 |
| EPSSC304500U | 4.5 | 11 | 50 | 6 | 3 |
| EPSSC305000U | 5.0 | 13 | 50 | 6 | 3 |
| EPSSC305500U | 5.5 | 14 | 50 | 6 | 3 |
| EPSSC306000U | 6.0 | 15 | 50 | 6 | 3 |
| EPSSC306500U | 6.5 | 16 | 60 | 8 | 3 |
| EPSSC307000U | 7.0 | 18 | 60 | 8 | 3 |
| EPSSC308000U | 8.0 | 20 | 60 | 8 | 3 |
| EPSSC309000U | 9.0 | 22 | 75 | 10 | 3 |
| EPSSC310000U | 10.0 | 25 | 75 | 10 | 3 |
| EPSSC311000U | 11.0 | 25 | 75 | 12 | 3 |
| EPSSC312000U | 12.0 | 30 | 75 | 12 | 3 |
| EPSSC314000U | 14.0 | 30 | 75 | 14 | 3 |
| EPSSC316000U | 16.0 | 35 | 100 | 16 | 3 |
| EPSSC318000U | 18.0 | 40 | 100 | 20 | 3 |
| EPSSC320000U | 20.0 | 45 | 100 | 20 | 3 |
| EPSSC325000U | 25.0 | 45 | 100 | 25 | 3 |
EPSSC3
d
L1
L
D
Cutting conditions : Table 027
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
