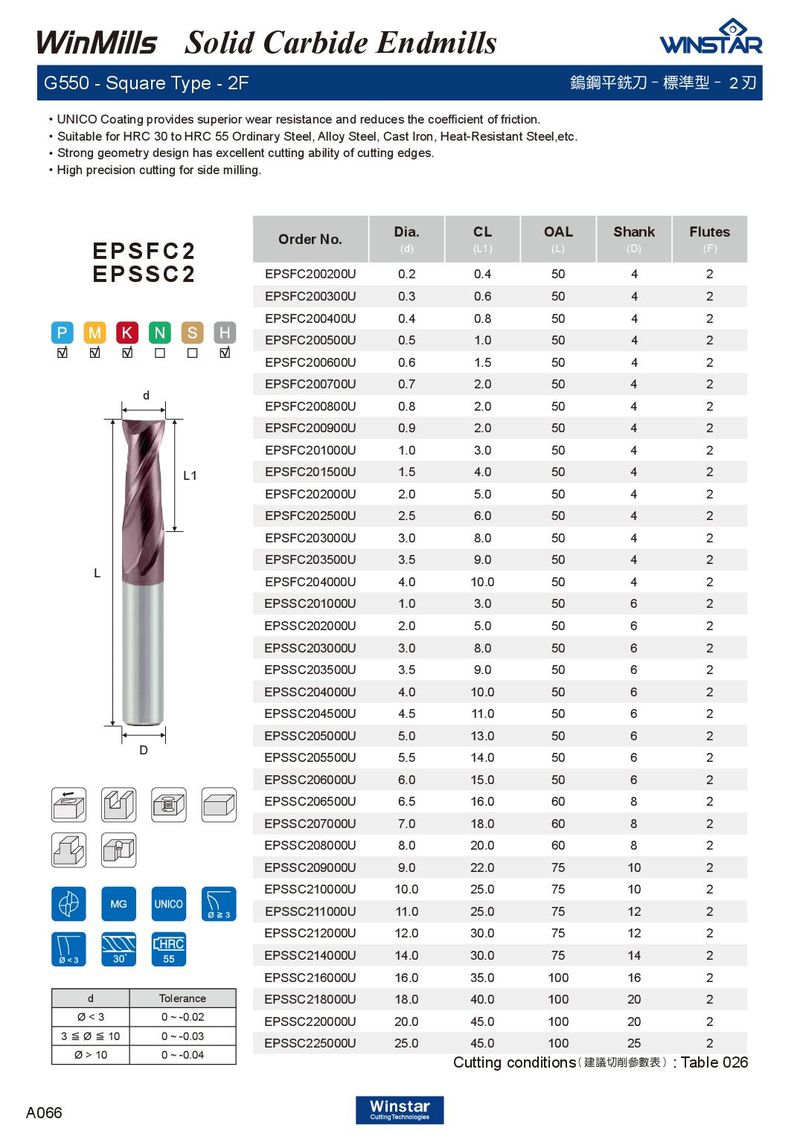

．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc. ．Strong geometry design has excellent cutting ability of cutting edges. ．High precision cutting for side milling.
| EPSFC2 | Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSSC2 | EPSFC200200U | 0.2 | 0.4 | 50 | 4 | 2 |
| EPSFC200300U | 0.3 | 0.6 | 50 | 4 | 2 | |
| EPSFC200400U | 0.4 | 0.8 | 50 | 4 | 2 | |
| EPSFC200500U | 0.5 | 1.0 | 50 | 4 | 2 | |
| EPSFC200600U | 0.6 | 1.5 | 50 | 4 | 2 | |
| d | EPSFC200700U | 0.7 | 2.0 | 50 | 4 | 2 |
| EPSFC200800U | 0.8 | 2.0 | 50 | 4 | 2 | |
| EPSFC200900U | 0.9 | 2.0 | 50 | 4 | 2 | |
| EPSFC201000U | 1.0 | 3.0 | 50 | 4 | 2 | |
| L1 | EPSFC201500U | 1.5 | 4.0 | 50 | 4 | 2 |
| EPSFC202000U | 2.0 | 5.0 | 50 | 4 | 2 | |
| EPSFC202500U | 2.5 | 6.0 | 50 | 4 | 2 | |
| EPSFC203000U | 3.0 | 8.0 | 50 | 4 | 2 | |
| EPSFC203500U | 3.5 | 9.0 | 50 | 4 | 2 | |
| L | EPSFC204000U | 4.0 | 10.0 | 50 | 4 | 2 |
| EPSSC201000U | 1.0 | 3.0 | 50 | 6 | 2 | |
| EPSSC202000U | 2.0 | 5.0 | 50 | 6 | 2 | |
| EPSSC203000U | 3.0 | 8.0 | 50 | 6 | 2 | |
| EPSSC203500U | 3.5 | 9.0 | 50 | 6 | 2 | |
| EPSSC204000U | 4.0 | 10.0 | 50 | 6 | 2 | |
| EPSSC204500U | 4.5 | 11.0 | 50 | 6 | 2 | |
| EPSSC205000U | 5.0 | 13.0 | 50 | 6 | 2 | |
| D | EPSSC205500U | 5.5 | 14.0 | 50 | 6 | 2 |
| EPSSC206000U | 6.0 | 15.0 | 50 | 6 | 2 | |
| EPSSC206500U | 6.5 | 16.0 | 60 | 8 | 2 | |
| EPSSC207000U | 7.0 | 18.0 | 60 | 8 | 2 | |
| EPSSC208000U | 8.0 | 20.0 | 60 | 8 | 2 | |
| EPSSC209000U | 9.0 | 22.0 | 75 | 10 | 2 | |
| EPSSC210000U | 10.0 | 25.0 | 75 | 10 | 2 | |
| EPSSC211000U | 11.0 | 25.0 | 75 | 12 | 2 | |
| EPSSC212000U | 12.0 | 30.0 | 75 | 12 | 2 | |
| EPSSC214000U | 14.0 | 30.0 | 75 | 14 | 2 | |
| EPSSC216000U | 16.0 | 35.0 | 100 | 16 | 2 | |
| d Tolerance | EPSSC218000U | 18.0 | 40.0 | 100 | 20 | 2 |
| Ø < 3 0 ~ -0.02 | EPSSC220000U | 20.0 | 45.0 | 100 | 20 | 2 |
| 3≦Ø≦10 0 ~ -0.03 Ø > 10 0 ~ -0.04 | EPSSC225000U | 25.0 | 45.0 | 100 | 25 | 2 |
