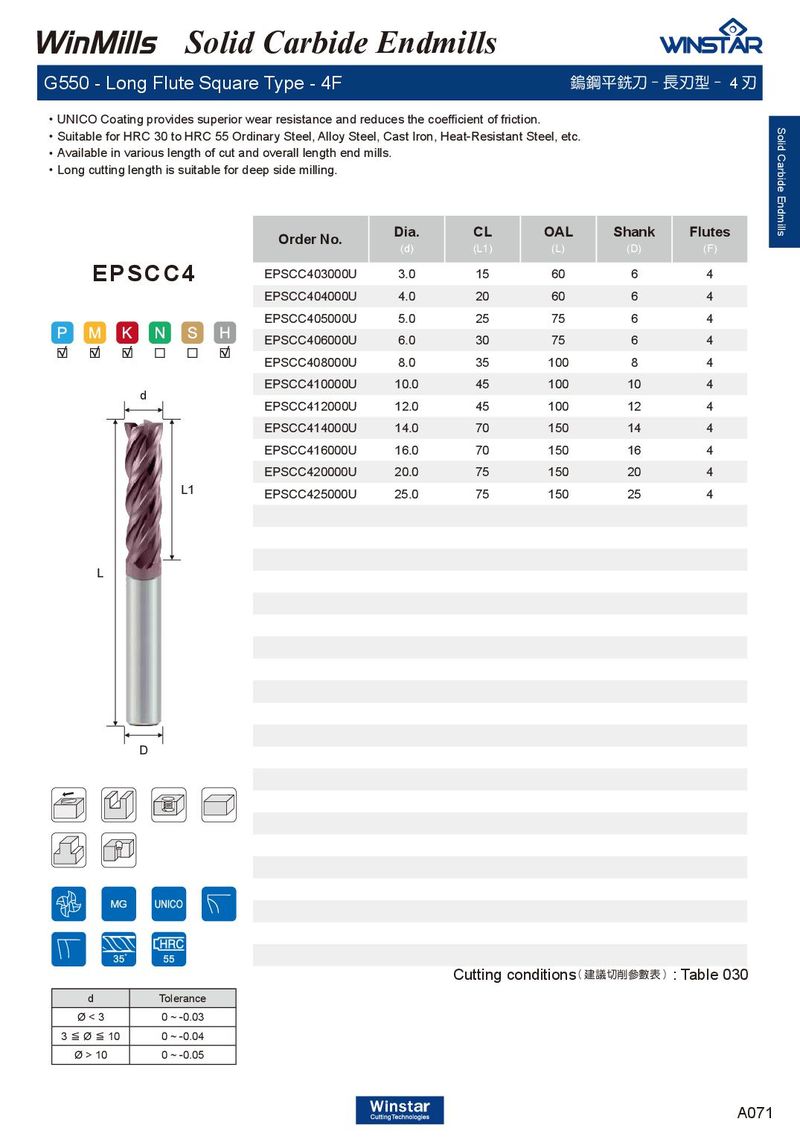

G550 - Long Flute Square Type - 4F 鎢鋼平銑刀 - 長刃型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Available in various length of cut and overall length end mills. ．Long cutting length is suitable for deep side milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPSCC403000U | 3.0 | 15 | 60 | 6 | 4 |
| EPSCC404000U | 4.0 | 20 | 60 | 6 | 4 |
| EPSCC405000U | 5.0 | 25 | 75 | 6 | 4 |
| EPSCC406000U | 6.0 | 30 | 75 | 6 | 4 |
| EPSCC408000U | 8.0 | 35 | 100 | 8 | 4 |
| EPSCC410000U | 10.0 | 45 | 100 | 10 | 4 |
| EPSCC412000U | 12.0 | 45 | 100 | 12 | 4 |
| EPSCC414000U | 14.0 | 70 | 150 | 14 | 4 |
| EPSCC416000U | 16.0 | 70 | 150 | 16 | 4 |
| EPSCC420000U | 20.0 | 75 | 150 | 20 | 4 |
| EPSCC425000U | 25.0 | 75 | 150 | 25 | 4 |
EPSCC4
d
L
D
Cutting conditions : Table 030
( 建議切削參數表 )
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
