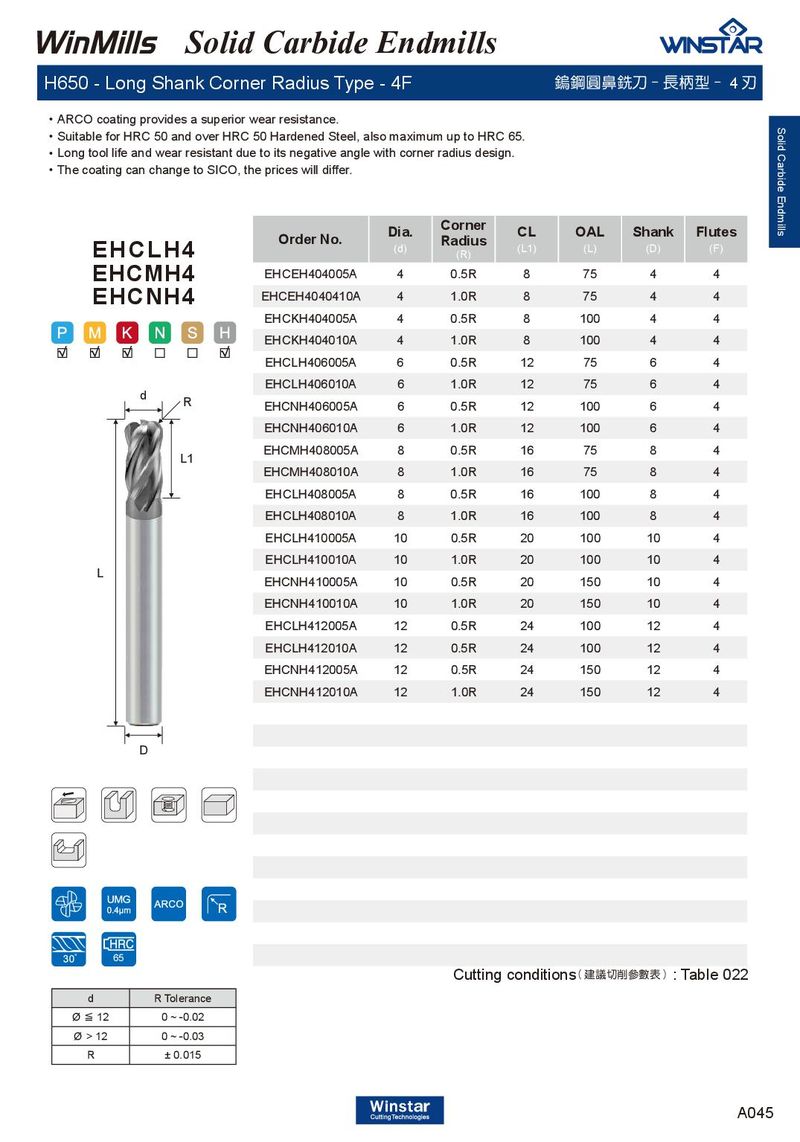

H650 - Long Shank Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長柄型 - 4 刃
．ARCO coating provides a superior wear resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Long tool life and wear resistant due to its negative angle with corner radius design. ．The coating can change to SICO, the prices will differ.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHCEH404005A | 4 | 0.5R | 8 | 75 | 4 | 4 |
| EHCEH4040410A | 4 | 1.0R | 8 | 75 | 4 | 4 |
| EHCKH404005A | 4 | 0.5R | 8 | 100 | 4 | 4 |
| EHCKH404010A | 4 | 1.0R | 8 | 100 | 4 | 4 |
| EHCLH406005A | 6 | 0.5R | 12 | 75 | 6 | 4 |
| EHCLH406010A | 6 | 1.0R | 12 | 75 | 6 | 4 |
| EHCNH406005A | 6 | 0.5R | 12 | 100 | 6 | 4 |
| EHCNH406010A | 6 | 1.0R | 12 | 100 | 6 | 4 |
| EHCMH408005A | 8 | 0.5R | 16 | 75 | 8 | 4 |
| EHCMH408010A | 8 | 1.0R | 16 | 75 | 8 | 4 |
| EHCLH408005A | 8 | 0.5R | 16 | 100 | 8 | 4 |
| EHCLH408010A | 8 | 1.0R | 16 | 100 | 8 | 4 |
| EHCLH410005A | 10 | 0.5R | 20 | 100 | 10 | 4 |
| EHCLH410010A | 10 | 1.0R | 20 | 100 | 10 | 4 |
| EHCNH410005A | 10 | 0.5R | 20 | 150 | 10 | 4 |
| EHCNH410010A | 10 | 1.0R | 20 | 150 | 10 | 4 |
| EHCLH412005A | 12 | 0.5R | 24 | 100 | 12 | 4 |
| EHCLH412010A | 12 | 0.5R | 24 | 100 | 12 | 4 |
| EHCNH412005A | 12 | 0.5R | 24 | 150 | 12 | 4 |
| EHCNH412010A | 12 | 1.0R | 24 | 150 | 12 | 4 |
EHCMH4
EHCNH4
d R
L1
L
D
65
Cutting conditions : Table 022
( 建議切削參數表 )
| d | R Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
| R | ± 0.015 |
