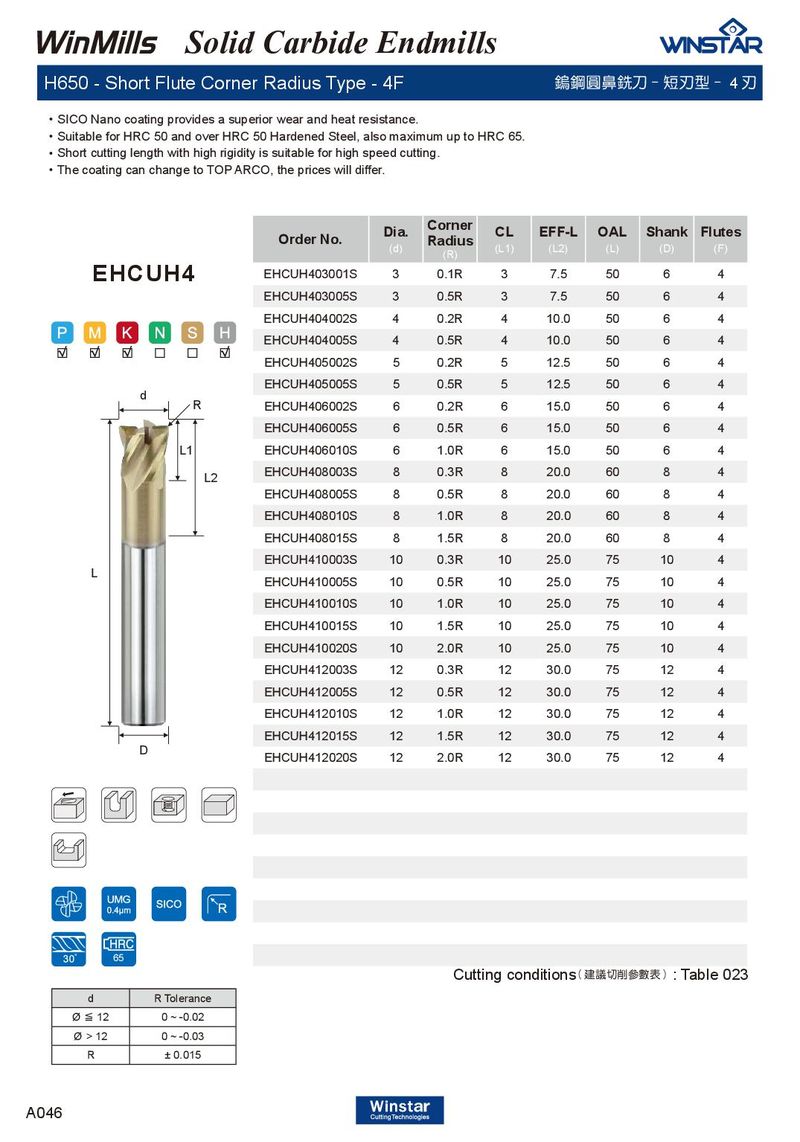

H650 - Short Flute Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 短刃型 - 4 刃
．SICO Nano coating provides a superior wear and heat resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Short cutting length with high rigidity is suitable for high speed cutting. ．The coating can change to TOP ARCO, the prices will differ.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHCUH403001S | 3 | 0.1R | 3 | 7.5 | 50 | 6 | 4 |
| EHCUH403005S | 3 | 0.5R | 3 | 7.5 | 50 | 6 | 4 |
| EHCUH404002S | 4 | 0.2R | 4 | 10.0 | 50 | 6 | 4 |
| EHCUH404005S | 4 | 0.5R | 4 | 10.0 | 50 | 6 | 4 |
| EHCUH405002S | 5 | 0.2R | 5 | 12.5 | 50 | 6 | 4 |
| EHCUH405005S | 5 | 0.5R | 5 | 12.5 | 50 | 6 | 4 |
| EHCUH406002S | 6 | 0.2R | 6 | 15.0 | 50 | 6 | 4 |
| EHCUH406005S | 6 | 0.5R | 6 | 15.0 | 50 | 6 | 4 |
| EHCUH406010S | 6 | 1.0R | 6 | 15.0 | 50 | 6 | 4 |
| EHCUH408003S | 8 | 0.3R | 8 | 20.0 | 60 | 8 | 4 |
| EHCUH408005S | 8 | 0.5R | 8 | 20.0 | 60 | 8 | 4 |
| EHCUH408010S | 8 | 1.0R | 8 | 20.0 | 60 | 8 | 4 |
| EHCUH408015S | 8 | 1.5R | 8 | 20.0 | 60 | 8 | 4 |
| EHCUH410003S | 10 | 0.3R | 10 | 25.0 | 75 | 10 | 4 |
| EHCUH410005S | 10 | 0.5R | 10 | 25.0 | 75 | 10 | 4 |
| EHCUH410010S | 10 | 1.0R | 10 | 25.0 | 75 | 10 | 4 |
| EHCUH410015S | 10 | 1.5R | 10 | 25.0 | 75 | 10 | 4 |
| EHCUH410020S | 10 | 2.0R | 10 | 25.0 | 75 | 10 | 4 |
| EHCUH412003S | 12 | 0.3R | 12 | 30.0 | 75 | 12 | 4 |
| EHCUH412005S | 12 | 0.5R | 12 | 30.0 | 75 | 12 | 4 |
| EHCUH412010S | 12 | 1.0R | 12 | 30.0 | 75 | 12 | 4 |
| EHCUH412015S | 12 | 1.5R | 12 | 30.0 | 75 | 12 | 4 |
| EHCUH412020S | 12 | 2.0R | 12 | 30.0 | 75 | 12 | 4 |
EHCUH4
d
L
D
65
Cutting conditions : Table 023
( 建議切削參數表 )
| d | R Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
| R | ± 0.015 |
