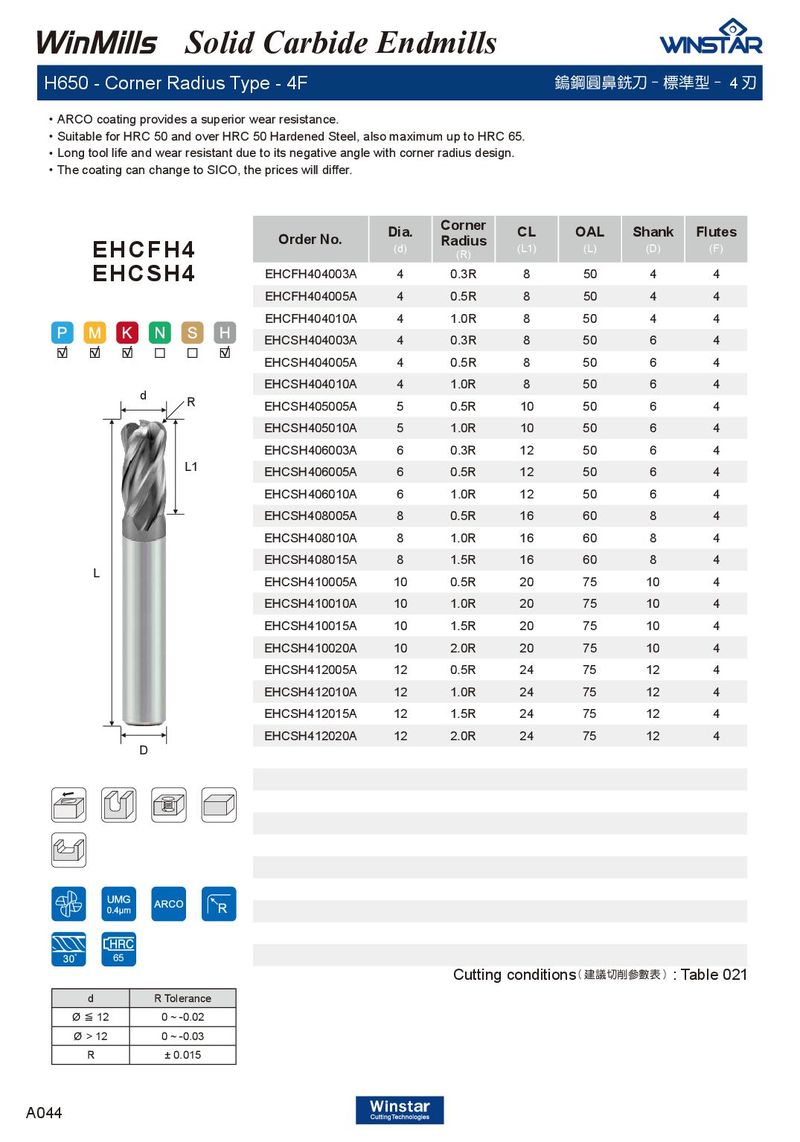

H650 - Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 標準型 - 4 刃
．ARCO coating provides a superior wear resistance. ．Suitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ．Long tool life and wear resistant due to its negative angle with corner radius design. ．The coating can change to SICO, the prices will differ.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHCFH404003A | 4 | 0.3R | 8 | 50 | 4 | 4 |
| EHCFH404005A | 4 | 0.5R | 8 | 50 | 4 | 4 |
| EHCFH404010A | 4 | 1.0R | 8 | 50 | 4 | 4 |
| EHCSH404003A | 4 | 0.3R | 8 | 50 | 6 | 4 |
| EHCSH404005A | 4 | 0.5R | 8 | 50 | 6 | 4 |
| EHCSH404010A | 4 | 1.0R | 8 | 50 | 6 | 4 |
| EHCSH405005A | 5 | 0.5R | 10 | 50 | 6 | 4 |
| EHCSH405010A | 5 | 1.0R | 10 | 50 | 6 | 4 |
| EHCSH406003A | 6 | 0.3R | 12 | 50 | 6 | 4 |
| EHCSH406005A | 6 | 0.5R | 12 | 50 | 6 | 4 |
| EHCSH406010A | 6 | 1.0R | 12 | 50 | 6 | 4 |
| EHCSH408005A | 8 | 0.5R | 16 | 60 | 8 | 4 |
| EHCSH408010A | 8 | 1.0R | 16 | 60 | 8 | 4 |
| EHCSH408015A | 8 | 1.5R | 16 | 60 | 8 | 4 |
| EHCSH410005A | 10 | 0.5R | 20 | 75 | 10 | 4 |
| EHCSH410010A | 10 | 1.0R | 20 | 75 | 10 | 4 |
| EHCSH410015A | 10 | 1.5R | 20 | 75 | 10 | 4 |
| EHCSH410020A | 10 | 2.0R | 20 | 75 | 10 | 4 |
| EHCSH412005A | 12 | 0.5R | 24 | 75 | 12 | 4 |
| EHCSH412010A | 12 | 1.0R | 24 | 75 | 12 | 4 |
| EHCSH412015A | 12 | 1.5R | 24 | 75 | 12 | 4 |
| EHCSH412020A | 12 | 2.0R | 24 | 75 | 12 | 4 |
EHCSH4
d R
L
D
65
Cutting conditions : Table 021
( 建議切削參數表 )
| d | R Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
| R | ± 0.015 |
