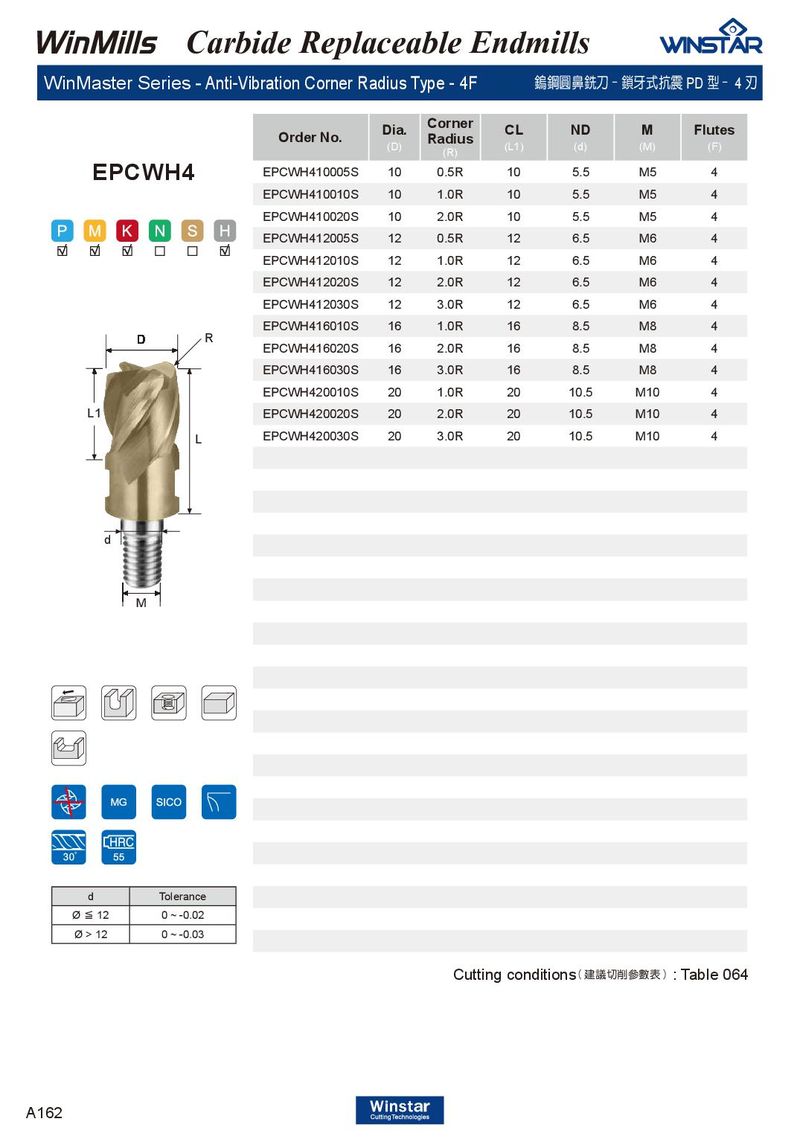

| WinMaster Series-Anti-V | ibration Corner R | adius T | ype - 4F | 鎢 | 鋼圓鼻銑刀 | - 鎖牙式抗 | 震PD型-4刃 |
| Order No. | Dia. (D) | Corner Radius (R) | CL (L1) | ND (d) | M (M) | Flutes (F) | |
| EPCWH4 | EPCWH410005S | 10 | 0.5R | 10 | 5.5 | M5 | 4 |
| EPCWH410010S | 10 | 1.0R | 10 | 5.5 | M5 | 4 | |
| EPCWH410020S | 10 | 2.0R | 10 | 5.5 | M5 | 4 | |
| EPCWH412005S | 12 | 0.5R | 12 | 6.5 | M6 | 4 | |
| EPCWH412010S | 12 | 1.0R | 12 | 6.5 | M6 | 4 | |
| EPCWH412020S | 12 | 2.0R | 12 | 6.5 | M6 | 4 | |
| EPCWH412030S | 12 | 3.0R | 12 | 6.5 | M6 | 4 | |
| EPCWH416010S | 16 | 1.0R | 16 | 8.5 | M8 | 4 | |
| R | EPCWH416020S | 16 | 2.0R | 16 | 8.5 | M8 | 4 |
| EPCWH416030S | 16 | 3.0R | 16 | 8.5 | M8 | 4 | |
| EPCWH420010S | 20 | 1.0R | 20 | 10.5 | M10 | 4 | |
| L1 | EPCWH420020S | 20 | 2.0R | 20 | 10.5 | M10 | 4 |
| L | EPCWH420030S | 20 | 3.0R | 20 | 10.5 | M10 | 4 |
d
M
| d | Tolerance | |
| Ø≦12 | 0 ~ -0.02 | |
| Ø > 12 | 0 ~ -0.03 | |
| Cutting conditions( 建議切削參數表): Table 064 |
