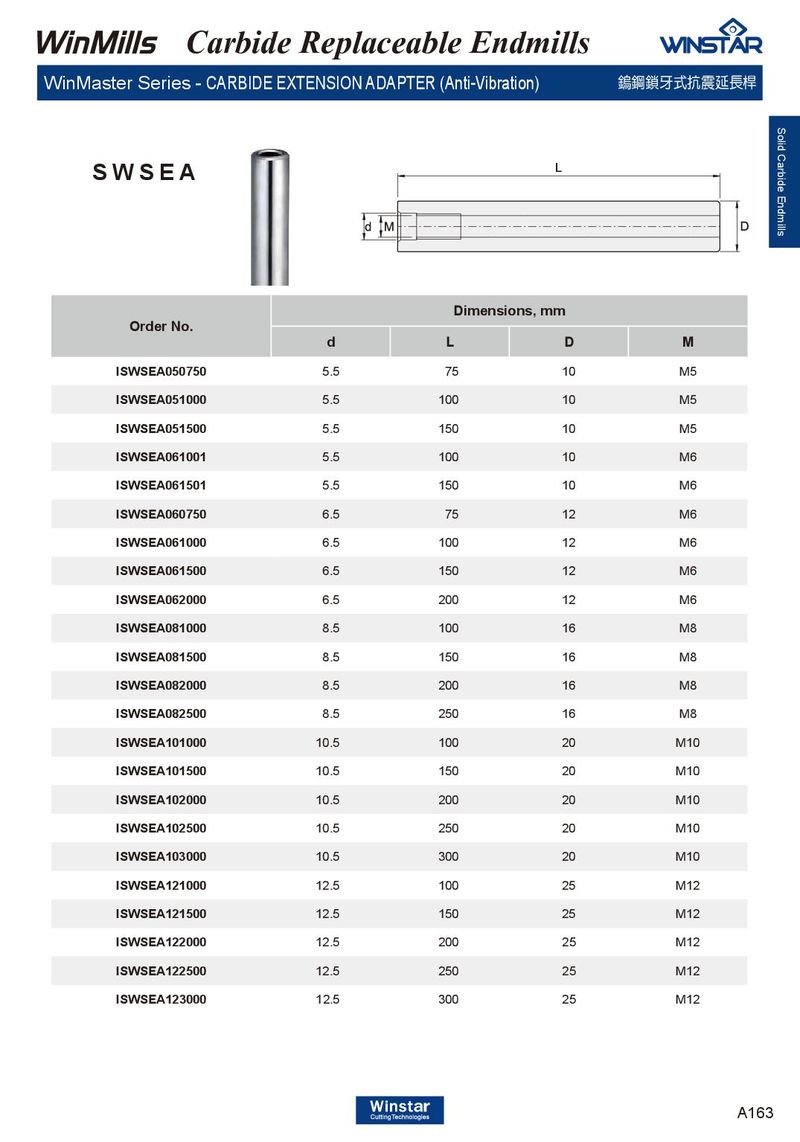

SWSEA
| Order No. | Dimensi | ons, mm | ||
| d | L | D | M | |
| ISWSEA050750 | 5.5 | 75 | 10 | M5 |
| ISWSEA051000 | 5.5 | 100 | 10 | M5 |
| ISWSEA051500 | 5.5 | 150 | 10 | M5 |
| ISWSEA061001 | 5.5 | 100 | 10 | M6 |
| ISWSEA061501 | 5.5 | 150 | 10 | M6 |
| ISWSEA060750 | 6.5 | 75 | 12 | M6 |
| ISWSEA061000 | 6.5 | 100 | 12 | M6 |
| ISWSEA061500 | 6.5 | 150 | 12 | M6 |
| ISWSEA062000 | 6.5 | 200 | 12 | M6 |
| ISWSEA081000 | 8.5 | 100 | 16 | M8 |
| ISWSEA081500 | 8.5 | 150 | 16 | M8 |
| ISWSEA082000 | 8.5 | 200 | 16 | M8 |
| ISWSEA082500 | 8.5 | 250 | 16 | M8 |
| ISWSEA101000 | 10.5 | 100 | 20 | M10 |
| ISWSEA101500 | 10.5 | 150 | 20 | M10 |
| ISWSEA102000 | 10.5 | 200 | 20 | M10 |
| ISWSEA102500 | 10.5 | 250 | 20 | M10 |
| ISWSEA103000 | 10.5 | 300 | 20 | M10 |
| ISWSEA121000 | 12.5 | 100 | 25 | M12 |
| ISWSEA121500 | 12.5 | 150 | 25 | M12 |
| ISWSEA122000 | 12.5 | 200 | 25 | M12 |
| ISWSEA122500 | 12.5 | 250 | 25 | M12 |
| ISWSEA123000 | 12.5 | 300 | 25 | M12 |
