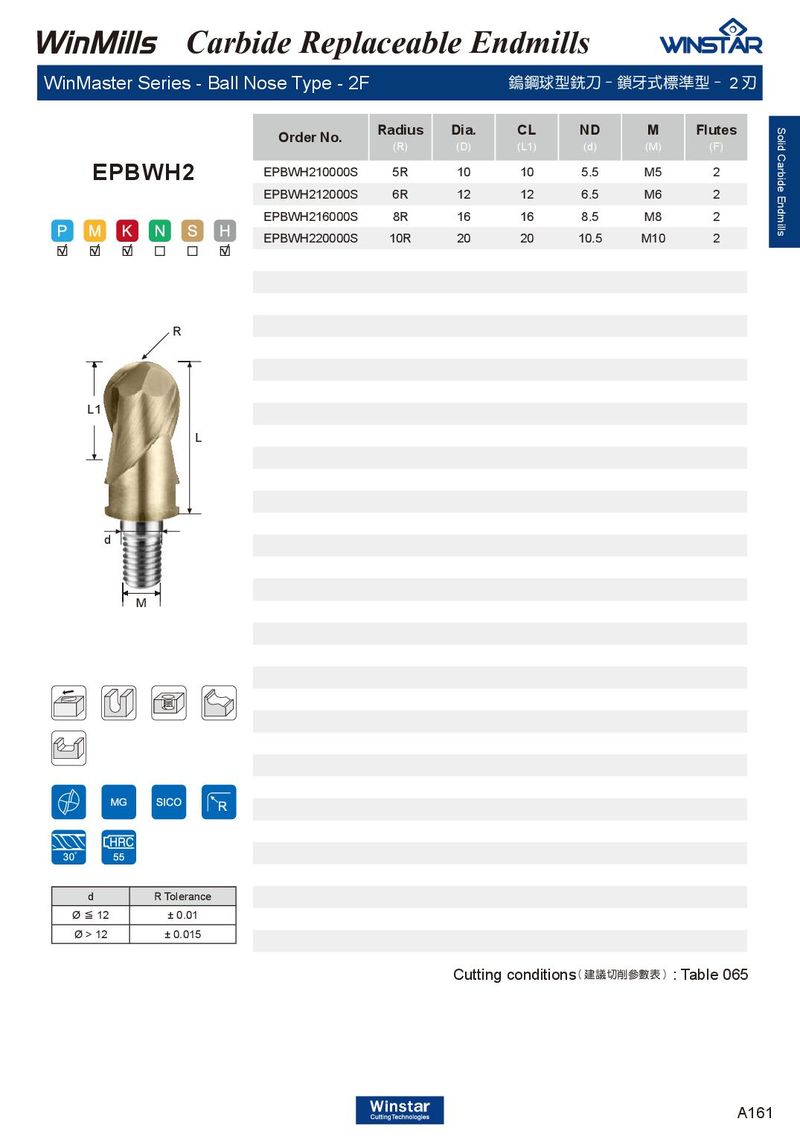

| WinMaster Series - Ball | Nose Type - 2F | 鎢鋼球 | 型銑刀 | - 鎖牙式標 | 準型-2刃 | ||
| Order No. | Radius (R) | Dia. (D) | CL (L1) | ND (d) | M (M) | Flutes (F) | |
| EPBWH2 | EPBWH210000S | 5R | 10 | 10 | 5.5 | M5 | 2 |
| EPBWH212000S | 6R | 12 | 12 | 6.5 | M6 | 2 | |
| EPBWH216000S | 8R | 16 | 16 | 8.5 | M8 | 2 | |
| EPBWH220000S | 10R | 20 | 20 | 10.5 | M10 | 2 |
R
L1 L
d
M
| d | R Tolerance |
| Ø≦12 | ± 0.01 |
| Ø > 12 | ± 0.015 |
Cutting conditions : Table 065
( 建議切削參數表 )
