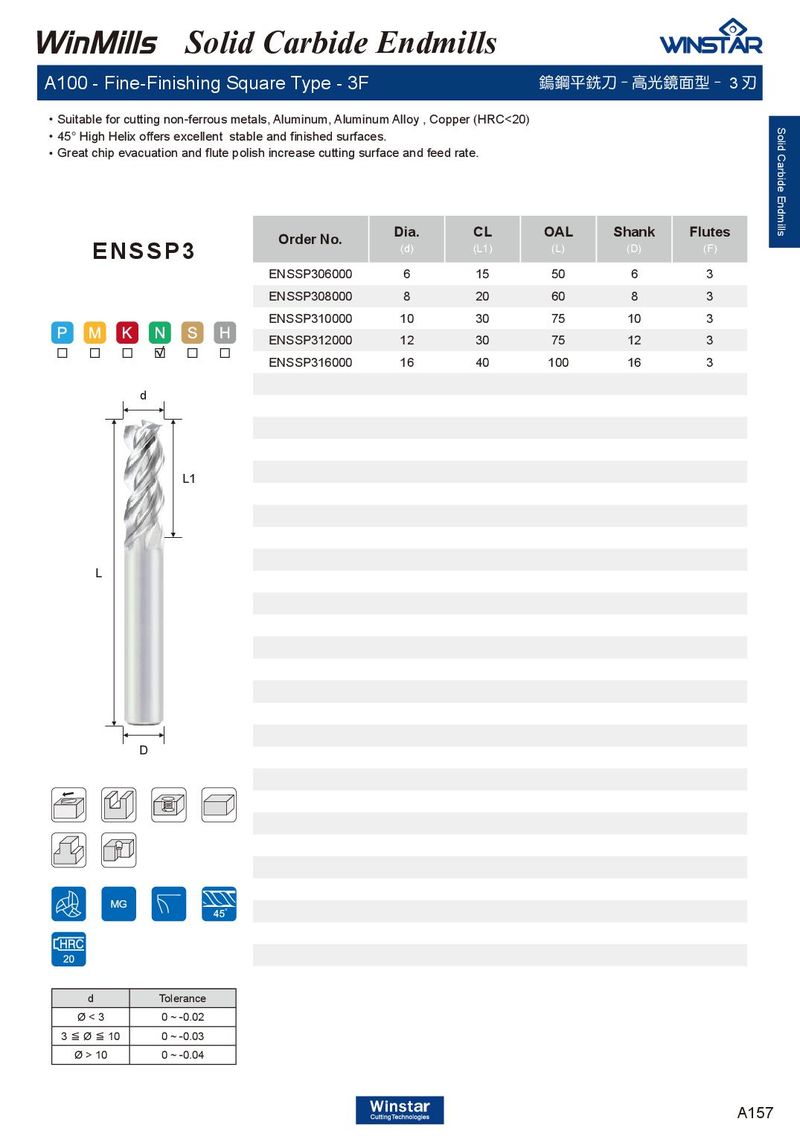

A100 - Fine-Finishing Square Type - 3F 鎢鋼平銑刀 - 高光鏡面型 - 3 刃
．Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy , Copper (HRC<20) ．45° High Helix offers excellent stable and finished surfaces. ．Great chip evacuation and flute polish increase cutting surface and feed rate.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ENSSP306000 | 6 | 15 | 50 | 6 | 3 |
| ENSSP308000 | 8 | 20 | 60 | 8 | 3 |
| ENSSP310000 | 10 | 30 | 75 | 10 | 3 |
| ENSSP312000 | 12 | 30 | 75 | 12 | 3 |
| ENSSP316000 | 16 | 40 | 100 | 16 | 3 |
d
L1
L
D
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
