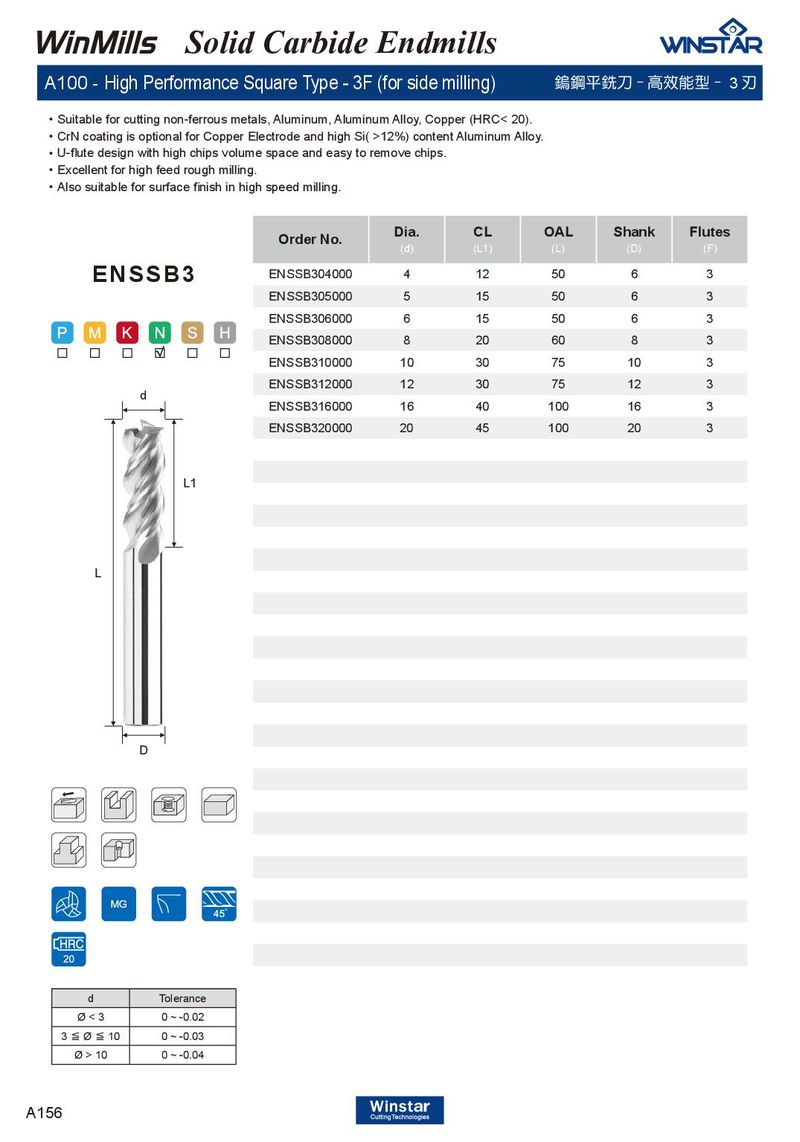

A100 - High Performance Square Type - 3F (for side milling) 鎢鋼平銑刀 - 高效能型 - 3 刃
．Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ．CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ．U-flute design with high chips volume space and easy to remove chips. ．Excellent for high feed rough milling. ．Also suitable for surface finish in high speed milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ENSSB304000 | 4 | 12 | 50 | 6 | 3 |
| ENSSB305000 | 5 | 15 | 50 | 6 | 3 |
| ENSSB306000 | 6 | 15 | 50 | 6 | 3 |
| ENSSB308000 | 8 | 20 | 60 | 8 | 3 |
| ENSSB310000 | 10 | 30 | 75 | 10 | 3 |
| ENSSB312000 | 12 | 30 | 75 | 12 | 3 |
| ENSSB316000 | 16 | 40 | 100 | 16 | 3 |
| ENSSB320000 | 20 | 45 | 100 | 20 | 3 |
ENSSB3
d
L1
L
D
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
