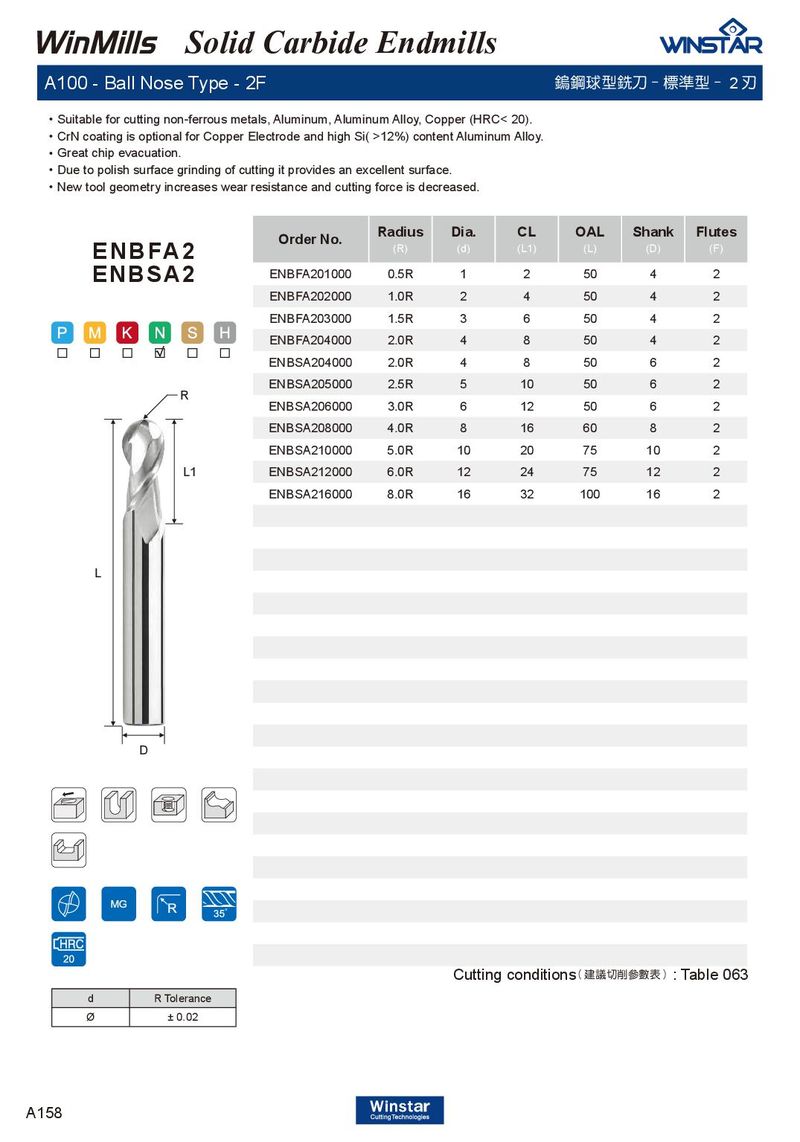

A100 - Ball Nose Type - 2F 鎢鋼球型銑刀 - 標準型 - 2 刃
．Suitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ．CrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ．Great chip evacuation. ．Due to polish surface grinding of cutting it provides an excellent surface. ．New tool geometry increases wear resistance and cutting force is decreased.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ENBFA201000 | 0.5R | 1 | 2 | 50 | 4 | 2 |
| ENBFA202000 | 1.0R | 2 | 4 | 50 | 4 | 2 |
| ENBFA203000 | 1.5R | 3 | 6 | 50 | 4 | 2 |
| ENBFA204000 | 2.0R | 4 | 8 | 50 | 4 | 2 |
| ENBSA204000 | 2.0R | 4 | 8 | 50 | 6 | 2 |
| ENBSA205000 | 2.5R | 5 | 10 | 50 | 6 | 2 |
| ENBSA206000 | 3.0R | 6 | 12 | 50 | 6 | 2 |
| ENBSA208000 | 4.0R | 8 | 16 | 60 | 8 | 2 |
| ENBSA210000 | 5.0R | 10 | 20 | 75 | 10 | 2 |
| ENBSA212000 | 6.0R | 12 | 24 | 75 | 12 | 2 |
| ENBSA216000 | 8.0R | 16 | 32 | 100 | 16 | 2 |
ENBSA2
R
L
D
d R Tolerance Ø ± 0.02
Cutting conditions : Table 063
( 建議切削參數表 )
