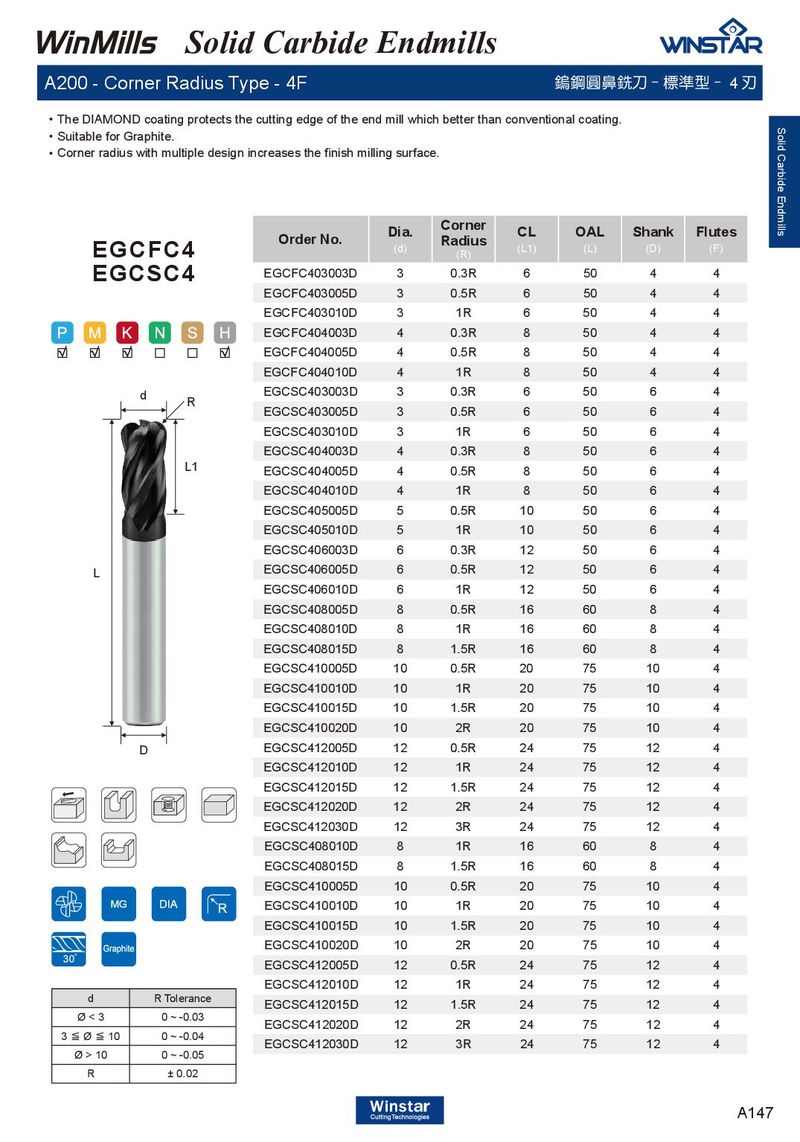

A200 - Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 標準型 - 4 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Corner radius with multiple design increases the finish milling surface.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGCFC403003D | 3 | 0.3R | 6 | 50 | 4 | 4 |
| EGCFC403005D | 3 | 0.5R | 6 | 50 | 4 | 4 |
| EGCFC403010D | 3 | 1R | 6 | 50 | 4 | 4 |
| EGCFC404003D | 4 | 0.3R | 8 | 50 | 4 | 4 |
| EGCFC404005D | 4 | 0.5R | 8 | 50 | 4 | 4 |
| EGCFC404010D | 4 | 1R | 8 | 50 | 4 | 4 |
| EGCSC403003D | 3 | 0.3R | 6 | 50 | 6 | 4 |
| EGCSC403005D | 3 | 0.5R | 6 | 50 | 6 | 4 |
| EGCSC403010D | 3 | 1R | 6 | 50 | 6 | 4 |
| EGCSC404003D | 4 | 0.3R | 8 | 50 | 6 | 4 |
| EGCSC404005D | 4 | 0.5R | 8 | 50 | 6 | 4 |
| EGCSC404010D | 4 | 1R | 8 | 50 | 6 | 4 |
| EGCSC405005D | 5 | 0.5R | 10 | 50 | 6 | 4 |
| EGCSC405010D | 5 | 1R | 10 | 50 | 6 | 4 |
| EGCSC406003D | 6 | 0.3R | 12 | 50 | 6 | 4 |
| EGCSC406005D | 6 | 0.5R | 12 | 50 | 6 | 4 |
| EGCSC406010D | 6 | 1R | 12 | 50 | 6 | 4 |
| EGCSC408005D | 8 | 0.5R | 16 | 60 | 8 | 4 |
| EGCSC408010D | 8 | 1R | 16 | 60 | 8 | 4 |
| EGCSC408015D | 8 | 1.5R | 16 | 60 | 8 | 4 |
| EGCSC410005D | 10 | 0.5R | 20 | 75 | 10 | 4 |
| EGCSC410010D | 10 | 1R | 20 | 75 | 10 | 4 |
| EGCSC410015D | 10 | 1.5R | 20 | 75 | 10 | 4 |
| EGCSC410020D | 10 | 2R | 20 | 75 | 10 | 4 |
| EGCSC412005D | 12 | 0.5R | 24 | 75 | 12 | 4 |
| EGCSC412010D | 12 | 1R | 24 | 75 | 12 | 4 |
| EGCSC412015D | 12 | 1.5R | 24 | 75 | 12 | 4 |
| EGCSC412020D | 12 | 2R | 24 | 75 | 12 | 4 |
| EGCSC412030D | 12 | 3R | 24 | 75 | 12 | 4 |
| EGCSC408010D | 8 | 1R | 16 | 60 | 8 | 4 |
| EGCSC408015D | 8 | 1.5R | 16 | 60 | 8 | 4 |
| EGCSC410005D | 10 | 0.5R | 20 | 75 | 10 | 4 |
| EGCSC410010D | 10 | 1R | 20 | 75 | 10 | 4 |
| EGCSC410015D | 10 | 1.5R | 20 | 75 | 10 | 4 |
| EGCSC410020D | 10 | 2R | 20 | 75 | 10 | 4 |
| EGCSC412005D | 12 | 0.5R | 24 | 75 | 12 | 4 |
| EGCSC412010D | 12 | 1R | 24 | 75 | 12 | 4 |
| EGCSC412015D | 12 | 1.5R | 24 | 75 | 12 | 4 |
| EGCSC412020D | 12 | 2R | 24 | 75 | 12 | 4 |
| EGCSC412030D | 12 | 3R | 24 | 75 | 12 | 4 |
EGCSC4
R
| d | R Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.02 |
