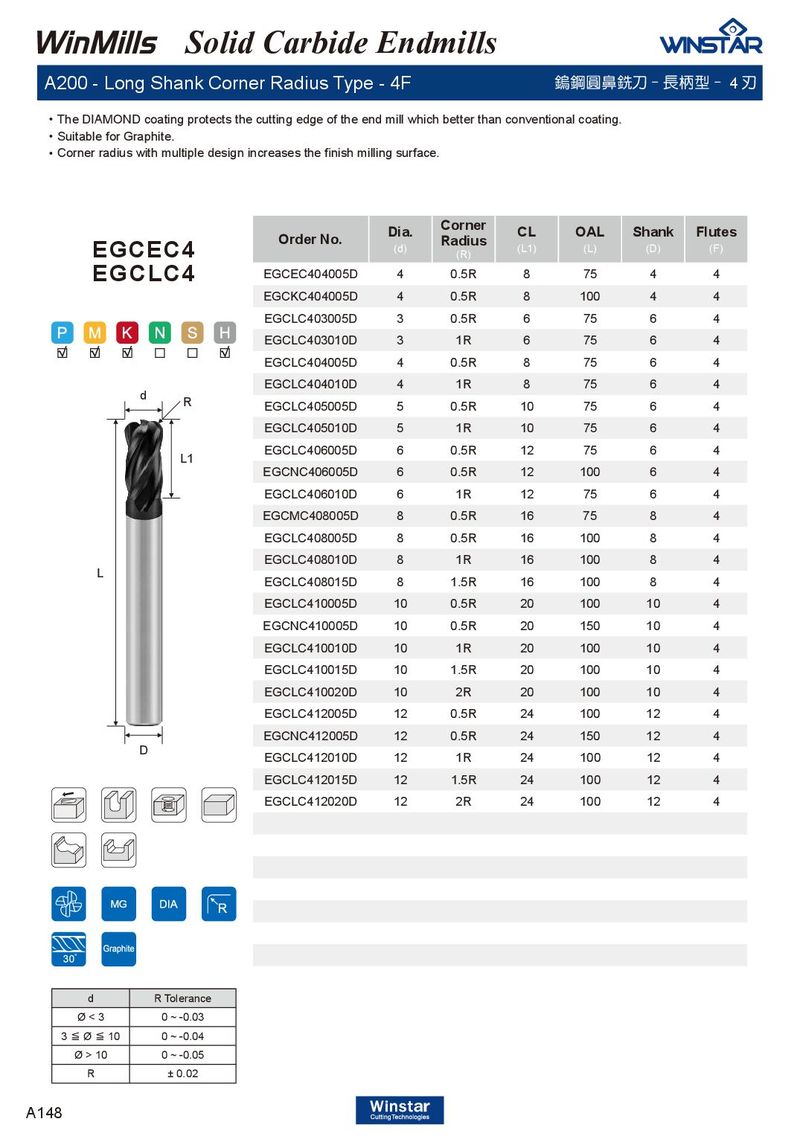

A200 - Long Shank Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長柄型 - 4 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Corner radius with multiple design increases the finish milling surface.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGCEC404005D | 4 | 0.5R | 8 | 75 | 4 | 4 |
| EGCKC404005D | 4 | 0.5R | 8 | 100 | 4 | 4 |
| EGCLC403005D | 3 | 0.5R | 6 | 75 | 6 | 4 |
| EGCLC403010D | 3 | 1R | 6 | 75 | 6 | 4 |
| EGCLC404005D | 4 | 0.5R | 8 | 75 | 6 | 4 |
| EGCLC404010D | 4 | 1R | 8 | 75 | 6 | 4 |
| EGCLC405005D | 5 | 0.5R | 10 | 75 | 6 | 4 |
| EGCLC405010D | 5 | 1R | 10 | 75 | 6 | 4 |
| EGCLC406005D | 6 | 0.5R | 12 | 75 | 6 | 4 |
| EGCNC406005D | 6 | 0.5R | 12 | 100 | 6 | 4 |
| EGCLC406010D | 6 | 1R | 12 | 75 | 6 | 4 |
| EGCMC408005D | 8 | 0.5R | 16 | 75 | 8 | 4 |
| EGCLC408005D | 8 | 0.5R | 16 | 100 | 8 | 4 |
| EGCLC408010D | 8 | 1R | 16 | 100 | 8 | 4 |
| EGCLC408015D | 8 | 1.5R | 16 | 100 | 8 | 4 |
| EGCLC410005D | 10 | 0.5R | 20 | 100 | 10 | 4 |
| EGCNC410005D | 10 | 0.5R | 20 | 150 | 10 | 4 |
| EGCLC410010D | 10 | 1R | 20 | 100 | 10 | 4 |
| EGCLC410015D | 10 | 1.5R | 20 | 100 | 10 | 4 |
| EGCLC410020D | 10 | 2R | 20 | 100 | 10 | 4 |
| EGCLC412005D | 12 | 0.5R | 24 | 100 | 12 | 4 |
| EGCNC412005D | 12 | 0.5R | 24 | 150 | 12 | 4 |
| EGCLC412010D | 12 | 1R | 24 | 100 | 12 | 4 |
| EGCLC412015D | 12 | 1.5R | 24 | 100 | 12 | 4 |
| EGCLC412020D | 12 | 2R | 24 | 100 | 12 | 4 |
EGCLC4
d R
L1
L
D
| d | R Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.02 |
