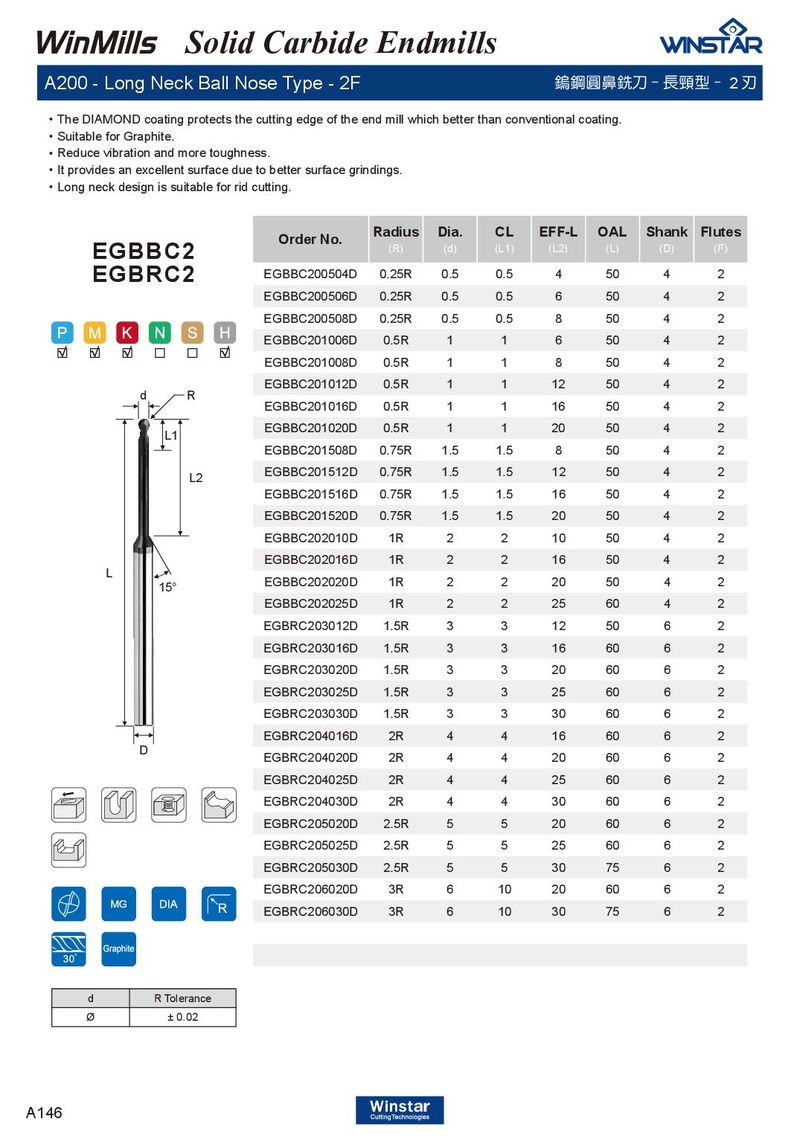

A200 - Long Neck Ball Nose Type - 2F 鎢鋼圓鼻銑刀 - 長頸型 - 2 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Reduce vibration and more toughness. ．It provides an excellent surface due to better surface grindings. ．Long neck design is suitable for rid cutting.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EGBBC200504D | 0.25R | 0.5 | 0.5 | 4 | 50 | 4 | 2 |
| EGBBC200506D | 0.25R | 0.5 | 0.5 | 6 | 50 | 4 | 2 |
| EGBBC200508D | 0.25R | 0.5 | 0.5 | 8 | 50 | 4 | 2 |
| EGBBC201006D | 0.5R | 1 | 1 | 6 | 50 | 4 | 2 |
| EGBBC201008D | 0.5R | 1 | 1 | 8 | 50 | 4 | 2 |
| EGBBC201012D | 0.5R | 1 | 1 | 12 | 50 | 4 | 2 |
| EGBBC201016D | 0.5R | 1 | 1 | 16 | 50 | 4 | 2 |
| EGBBC201020D | 0.5R | 1 | 1 | 20 | 50 | 4 | 2 |
| EGBBC201508D | 0.75R | 1.5 | 1.5 | 8 | 50 | 4 | 2 |
| EGBBC201512D | 0.75R | 1.5 | 1.5 | 12 | 50 | 4 | 2 |
| EGBBC201516D | 0.75R | 1.5 | 1.5 | 16 | 50 | 4 | 2 |
| EGBBC201520D | 0.75R | 1.5 | 1.5 | 20 | 50 | 4 | 2 |
| EGBBC202010D | 1R | 2 | 2 | 10 | 50 | 4 | 2 |
| EGBBC202016D | 1R | 2 | 2 | 16 | 50 | 4 | 2 |
| EGBBC202020D | 1R | 2 | 2 | 20 | 50 | 4 | 2 |
| EGBBC202025D | 1R | 2 | 2 | 25 | 60 | 4 | 2 |
| EGBRC203012D | 1.5R | 3 | 3 | 12 | 50 | 6 | 2 |
| EGBRC203016D | 1.5R | 3 | 3 | 16 | 60 | 6 | 2 |
| EGBRC203020D | 1.5R | 3 | 3 | 20 | 60 | 6 | 2 |
| EGBRC203025D | 1.5R | 3 | 3 | 25 | 60 | 6 | 2 |
| EGBRC203030D | 1.5R | 3 | 3 | 30 | 60 | 6 | 2 |
| EGBRC204016D | 2R | 4 | 4 | 16 | 60 | 6 | 2 |
| EGBRC204020D | 2R | 4 | 4 | 20 | 60 | 6 | 2 |
| EGBRC204025D | 2R | 4 | 4 | 25 | 60 | 6 | 2 |
| EGBRC204030D | 2R | 4 | 4 | 30 | 60 | 6 | 2 |
| EGBRC205020D | 2.5R | 5 | 5 | 20 | 60 | 6 | 2 |
| EGBRC205025D | 2.5R | 5 | 5 | 25 | 60 | 6 | 2 |
| EGBRC205030D | 2.5R | 5 | 5 | 30 | 75 | 6 | 2 |
| EGBRC206020D | 3R | 6 | 10 | 20 | 60 | 6 | 2 |
| EGBRC206030D | 3R | 6 | 10 | 30 | 75 | 6 | 2 |
EGBRC2
d R L1
L
D
d R Tolerance Ø ± 0.02
