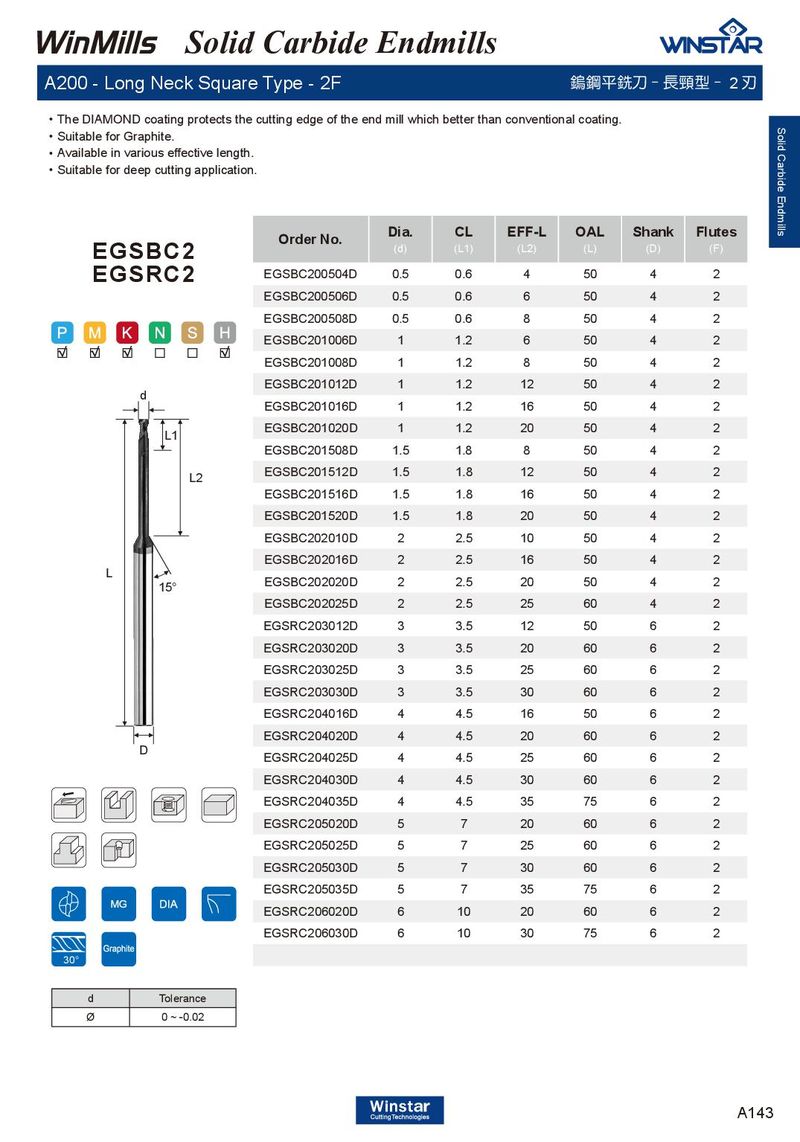

A200 - Long Neck Square Type - 2F 鎢鋼平銑刀 - 長頸型 - 2 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Available in various effective length. ．Suitable for deep cutting application.
| Order No. | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EGSBC200504D | 0.5 | 0.6 | 4 | 50 | 4 | 2 |
| EGSBC200506D | 0.5 | 0.6 | 6 | 50 | 4 | 2 |
| EGSBC200508D | 0.5 | 0.6 | 8 | 50 | 4 | 2 |
| EGSBC201006D | 1 | 1.2 | 6 | 50 | 4 | 2 |
| EGSBC201008D | 1 | 1.2 | 8 | 50 | 4 | 2 |
| EGSBC201012D | 1 | 1.2 | 12 | 50 | 4 | 2 |
| EGSBC201016D | 1 | 1.2 | 16 | 50 | 4 | 2 |
| EGSBC201020D | 1 | 1.2 | 20 | 50 | 4 | 2 |
| EGSBC201508D | 1.5 | 1.8 | 8 | 50 | 4 | 2 |
| EGSBC201512D | 1.5 | 1.8 | 12 | 50 | 4 | 2 |
| EGSBC201516D | 1.5 | 1.8 | 16 | 50 | 4 | 2 |
| EGSBC201520D | 1.5 | 1.8 | 20 | 50 | 4 | 2 |
| EGSBC202010D | 2 | 2.5 | 10 | 50 | 4 | 2 |
| EGSBC202016D | 2 | 2.5 | 16 | 50 | 4 | 2 |
| EGSBC202020D | 2 | 2.5 | 20 | 50 | 4 | 2 |
| EGSBC202025D | 2 | 2.5 | 25 | 60 | 4 | 2 |
| EGSRC203012D | 3 | 3.5 | 12 | 50 | 6 | 2 |
| EGSRC203020D | 3 | 3.5 | 20 | 60 | 6 | 2 |
| EGSRC203025D | 3 | 3.5 | 25 | 60 | 6 | 2 |
| EGSRC203030D | 3 | 3.5 | 30 | 60 | 6 | 2 |
| EGSRC204016D | 4 | 4.5 | 16 | 50 | 6 | 2 |
| EGSRC204020D | 4 | 4.5 | 20 | 60 | 6 | 2 |
| EGSRC204025D | 4 | 4.5 | 25 | 60 | 6 | 2 |
| EGSRC204030D | 4 | 4.5 | 30 | 60 | 6 | 2 |
| EGSRC204035D | 4 | 4.5 | 35 | 75 | 6 | 2 |
| EGSRC205020D | 5 | 7 | 20 | 60 | 6 | 2 |
| EGSRC205025D | 5 | 7 | 25 | 60 | 6 | 2 |
| EGSRC205030D | 5 | 7 | 30 | 60 | 6 | 2 |
| EGSRC205035D | 5 | 7 | 35 | 75 | 6 | 2 |
| EGSRC206020D | 6 | 10 | 20 | 60 | 6 | 2 |
| EGSRC206030D | 6 | 10 | 30 | 75 | 6 | 2 |
EGSRC2
d L1
L
D
30° d Tolerance Ø 0 ~ -0.02
