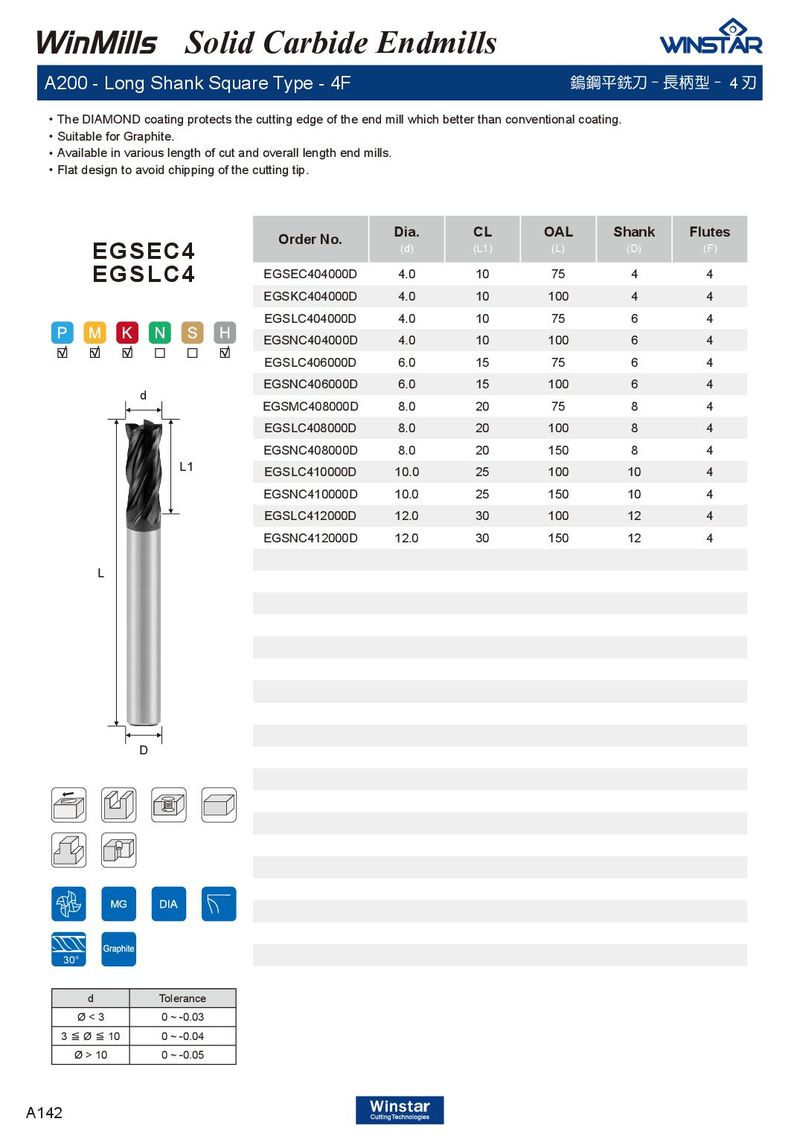

A200 - Long Shank Square Type - 4F 鎢鋼平銑刀 - 長柄型 - 4 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Available in various length of cut and overall length end mills. ．Flat design to avoid chipping of the cutting tip.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGSEC404000D | 4.0 | 10 | 75 | 4 | 4 |
| EGSKC404000D | 4.0 | 10 | 100 | 4 | 4 |
| EGSLC404000D | 4.0 | 10 | 75 | 6 | 4 |
| EGSNC404000D | 4.0 | 10 | 100 | 6 | 4 |
| EGSLC406000D | 6.0 | 15 | 75 | 6 | 4 |
| EGSNC406000D | 6.0 | 15 | 100 | 6 | 4 |
| EGSMC408000D | 8.0 | 20 | 75 | 8 | 4 |
| EGSLC408000D | 8.0 | 20 | 100 | 8 | 4 |
| EGSNC408000D | 8.0 | 20 | 150 | 8 | 4 |
| EGSLC410000D | 10.0 | 25 | 100 | 10 | 4 |
| EGSNC410000D | 10.0 | 25 | 150 | 10 | 4 |
| EGSLC412000D | 12.0 | 30 | 100 | 12 | 4 |
| EGSNC412000D | 12.0 | 30 | 150 | 12 | 4 |
EGSLC4
d
L
D
30°
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
