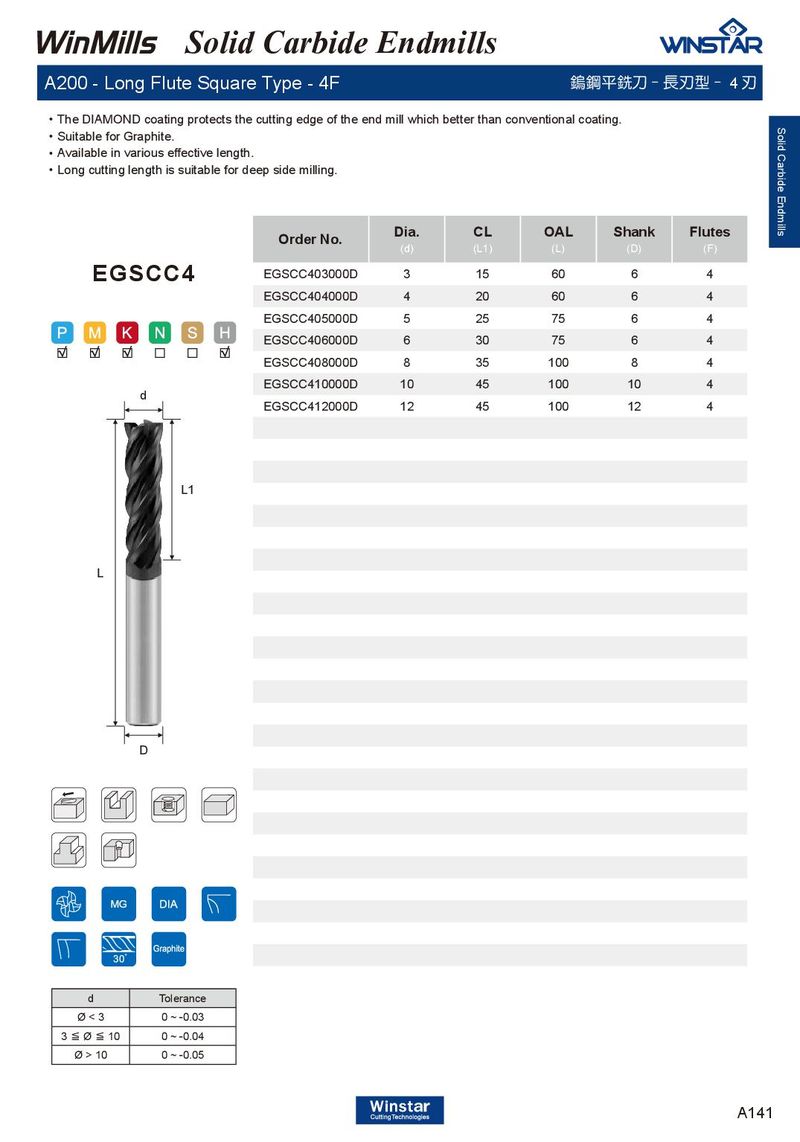

A200 - Long Flute Square Type - 4F 鎢鋼平銑刀 - 長刃型 - 4 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Available in various effective length. ．Long cutting length is suitable for deep side milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGSCC403000D | 3 | 15 | 60 | 6 | 4 |
| EGSCC404000D | 4 | 20 | 60 | 6 | 4 |
| EGSCC405000D | 5 | 25 | 75 | 6 | 4 |
| EGSCC406000D | 6 | 30 | 75 | 6 | 4 |
| EGSCC408000D | 8 | 35 | 100 | 8 | 4 |
| EGSCC410000D | 10 | 45 | 100 | 10 | 4 |
| EGSCC412000D | 12 | 45 | 100 | 12 | 4 |
EGSCC4
d
L1
L
D
| d | Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
